Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
QWYCONN
-
Model Number:
-
FPC connector
-
Connector type:
-
ZIF
-
Rated current:
-
0.5A
-
Rated voltage:
-
50V
-
Withstand Voltage:
-
500V
-
Contact resistance:
-
≤20 mΩ
-
Insulation resistance:
-
500mΩ
-
Sit uip(materials):
-
Phosphor Bronze,Tin over Nickel
-
Working Temperature:
-
-20℃ ~ +105℃
-
Main body(materials):
-
LCP,UL94V-0
-
Contact(materials):
-
Phosphor Bronze,Tin over Nickel
Quick Details
-
Type:
-
ADAPTER
-
Application:
-
FPC
-
Gender:
-
Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
QWYCONN
-
Model Number:
-
FPC connector
-
Connector type:
-
ZIF
-
Rated current:
-
0.5A
-
Rated voltage:
-
50V
-
Withstand Voltage:
-
500V
-
Contact resistance:
-
≤20 mΩ
-
Insulation resistance:
-
500mΩ
-
Sit uip(materials):
-
Phosphor Bronze,Tin over Nickel
-
Working Temperature:
-
-20℃ ~ +105℃
-
Main body(materials):
-
LCP,UL94V-0
-
Contact(materials):
-
Phosphor Bronze,Tin over Nickel
|

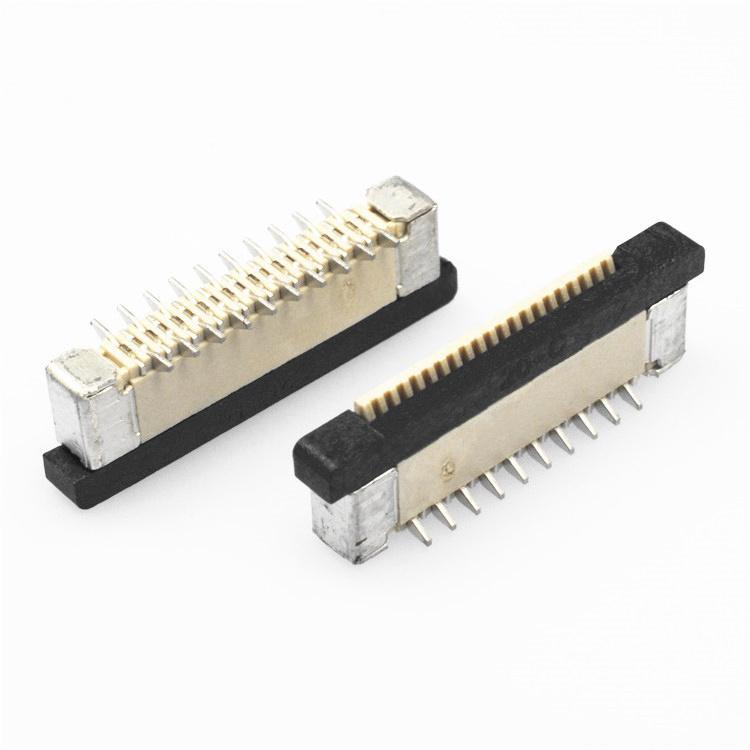

FPC Connector
|
|
Specification
|
|
|
|||
|
Pitch
|
|
0.3mm,0.5mm,0.8mm,1.0mm,1.25mm,2.54mm
|
|
|
|||
|
Type
|
|
Flip-lock type, Top/ Bottom contact type, Vertical/Horizontal type etc.
|
|
|
|||
|
Pin
|
|
4-60 pin (according to customer's needs)
|
|
|
|||
|
Current Rating
|
|
0.5A
|
|
|
|||
|
Rated Voltage
|
|
50V
|
|
|
|||
|
Contact Resistance
|
|
40 milliohms max.
|
|
|
|||
|
Insulation Resistance
|
|
50 Megohm min.
|
|
|
|||
|
Durability (min.)
|
|
25 cycles
|
|
|
|||
|
Housing
|
|
LCP UL94V-0,Beige
|
|
|
|||
|
Cover
|
|
PA6T UL94V-0,Black
|
|
|
|||
|
Contact
|
|
Phosphor Bronze,Au/Ni
|
|
|
|||
|
Operating Temperature
|
|
-40ºC ~ +125ºC
|
|
|
|||
|
Payment Terms
|
|
MIL-STD-202 Method204
|
|
|
|||
|
Corrosion Resistance
|
|
T/T,PayPal,Western Union,L/C
|
|
|
|||
|
Lead Time
|
|
7-10days
|
|
|
|||
|
Certificates
|
|
ISO9001, ISO14001:2004 environmental management system, REACH, SGS, CQC.
|
|
|
|||
|
Samples
|
|
Free Samples
|
|
|
|||
