Quick Details
-
Voltage:
-
380V 3phases Or as request
-
Power:
-
29kw
-
Dimension(L*W*H):
-
About 9m*1.0m*1.5m
-
Weight:
-
9000 kg
-
Certification:
-
ISO9001,CE
-
Decoiler:
-
5T Automatic
-
Material Thickness:
-
0.95 - 2.0mm or 20 - 14 gauge
-
Roll Forming Stations:
-
12~16 Stations
-
Standard Punch Toolings:
-
Service Hole, Web Bolt Hole, Dimple, Web Notch, Chamfer, Lip Cut
-
Optional Punch Toolings:
-
Large Service Hole, Web Tab Notch, Tab Fix Hole, Flange hole
-
Line Speed:
-
300~1000mm/s
-
Main Drive Power:
-
7.5~15KW
-
Hydraulic Power:
-
5.5~11KW
-
Printer:
-
2 Printer Heads
Quick Details
-
Production Capacity:
-
300-900m/h
-
Place of Origin:
-
Guangdong China
-
Brand Name:
-
FrameMac
-
Voltage:
-
380V 3phases Or as request
-
Power:
-
29kw
-
Dimension(L*W*H):
-
About 9m*1.0m*1.5m
-
Weight:
-
9000 kg
-
Certification:
-
ISO9001,CE
-
Decoiler:
-
5T Automatic
-
Material Thickness:
-
0.95 - 2.0mm or 20 - 14 gauge
-
Roll Forming Stations:
-
12~16 Stations
-
Standard Punch Toolings:
-
Service Hole, Web Bolt Hole, Dimple, Web Notch, Chamfer, Lip Cut
-
Optional Punch Toolings:
-
Large Service Hole, Web Tab Notch, Tab Fix Hole, Flange hole
-
Line Speed:
-
300~1000mm/s
-
Main Drive Power:
-
7.5~15KW
-
Hydraulic Power:
-
5.5~11KW
-
Printer:
-
2 Printer Heads
Product Overview

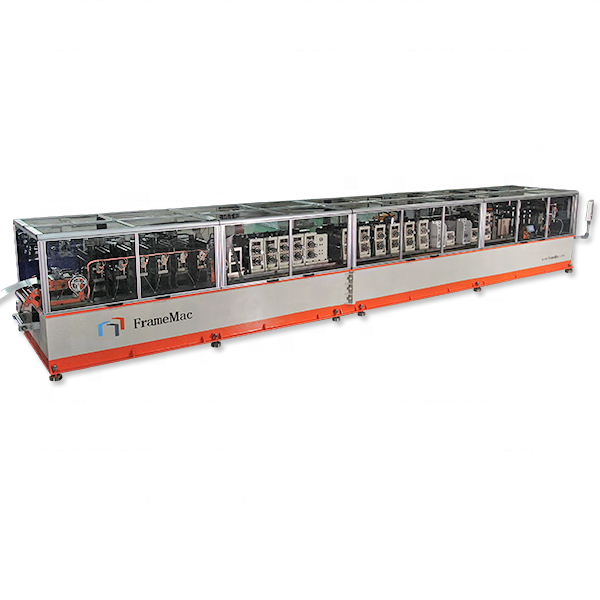

FrameMac light steel frame roll forming machine solution
FrameMac, a leading manufacturer of intelligent manufacturing equipment for light steel construction, provides a fully automated light steel construction frame production solution integrating hardware and software. The “FrameMac” solution enables seamless“end-to-end” production from CAD architectural design software to production, construction and installation.
Light steel structure has been widely used in general industrial and agricultural, commercial, and service buildings, such as
office buildings, villas, warehouses, stadiums, entertainment, tourist buildings, and low- and multi-story residential buildings.Renovation, reinforcement and lack of building materials, inconvenient transportation areas, tight schedules, movable demolition buildings, etc.
office buildings, villas, warehouses, stadiums, entertainment, tourist buildings, and low- and multi-story residential buildings.Renovation, reinforcement and lack of building materials, inconvenient transportation areas, tight schedules, movable demolition buildings, etc.
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
0
|
Nc file
|
CSV/ XML or other
|
|
1
|
Web
|
140-300mm
|
|
2
|
Thickness
|
1.2-2.0mm
|
|
3
|
Production speed
|
600m/s
|
|
4
|
Accuracy
|
0.5mm
|
|
5
|
Total Power
|
29kw
|
|
6
|
Inkjet printer
|
2 sides
|
|
7
|
Decoiler
|
5 tons
|
|
8
|
Machine weight
|
9000kg
|
FEATURES AT A GLANCE
5 TONS uncoiler
Hydraulic expand uncoiler with protective pressing arm and leveler.
Punchouts
The punch toolings are composed of highly sensitive sensor, powerful hydraulic press force, strong die cut by slow-speed wire and
accompany lubrication route.
accompany lubrication route.
Roll forming part
The roller stations gap can be auto adjusted for steel strips in different thickness, precisely aligned on steady bench , safely shell shield.
Inkjet printer
The printer with a smart chip, automatically print the code on both side of steel frame ,same as detailing drawings, which should
be referred to installed. This shorten precious time of both production and installation offsite or onsite.
be referred to installed. This shorten precious time of both production and installation offsite or onsite.
Industrial computer
This industrial computer is installed with Lilux system, which can prevent from Microsoft virus. Its communication type is
EtherCAT. The most core value is instantly step BIM file to manufacturing proceed.
EtherCAT. The most core value is instantly step BIM file to manufacturing proceed.
Mezzanine floors
Fast assembly for large web size with swaged service holes for ducting and plumbing.
SIMILAR PRODUCTS
Product packaging
COMPANY PROFILE
About us
FrameMAC is a professional manufacturer of machine combining R&D and sales for light steel framing production equipment and solutions.
Taking "fast,accurate and stable" as our service tenet, insisting on high quality , support the target of providing long-term running facility to the global.
