Quick Details
-
Pressure:
-
10bar
-
Working Voltage:
-
AC 110V; AC220V
-
Suitable for:
-
Air Compressed System
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ShinyAir
-
Model:
-
QAD400-04
-
Pressure:
-
10bar
-
Working Voltage:
-
AC 110V; AC220V
-
Suitable for:
-
Air Compressed System

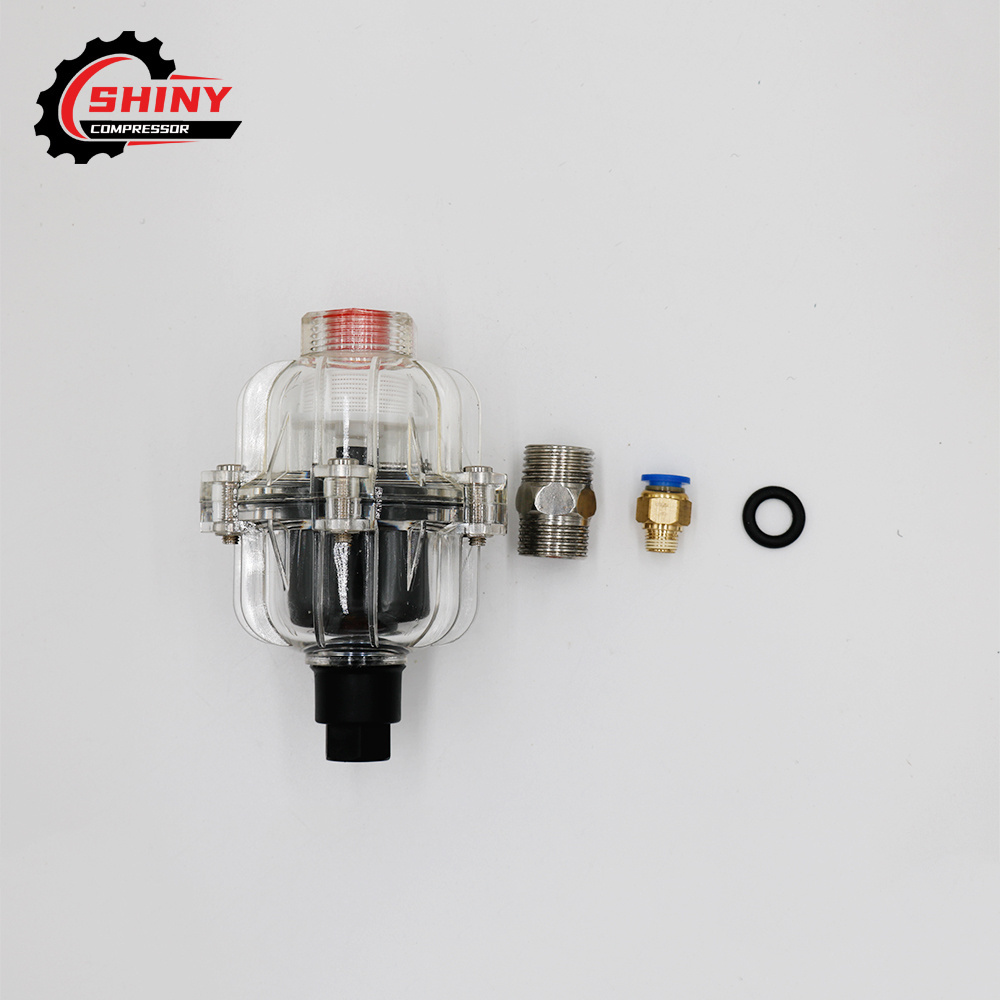

AUTO DRAIN
Specification
|
Model
|
QAD400-04
|
|
Operating pressure range
|
1.0Mpa
|
|
Installation dimension
|
115mm*85mm
|
|
Characteristic
|
Zero energy consumption, no blockage, small volume, easy to clean
|
|
Product use function
|
Automatic condensate removal
|
The automatic drainer is used to automatically discharge the condensate water at the lower part of the pipeline, the oil-water separator, the air tank and the bottom of various filters. It can be installed in places where manual sewage discharge is inconvenient, such as high, low and narrow places. It can prevent the compressed air from being polluted again by the condensed water because the artificial drainage is forgotten. The working principle of the automatic drainer is that the water accumulates in the drainer. When the water level reaches a certain level, the buoyancy is greater than the air pressure. The air bottle floats up, the drain opening, and the water is discharged under the action of the air pressure. At the same time, the buoyancy is reduced, and the air bottle drops to block the drain.
