Quick Details
-
Optical Geometry:
-
CMYK + 45°/0
-
Measurement:
-
M0, M1, M2, M3
-
Standards:
-
ISO Status T, E, A, I.
-
Measuring Aperture:
-
2mm / 4mm / 8mm
-
Color Space:
-
CIE Lab, LCh, XYZ, Yxy
-
Repeatability Error:
-
Delta E*ab≤0.04
-
UV Light Source:
-
Yes
-
Equivalent Model:
-
X-rite eXact Standard
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product Category:
-
Optical Density Measurement Instrument
-
Product Name:
-
Spectro-densitometer
-
Optical Geometry:
-
CMYK + 45°/0
-
Measurement:
-
M0, M1, M2, M3
-
Standards:
-
ISO Status T, E, A, I.
-
Measuring Aperture:
-
2mm / 4mm / 8mm
-
Color Space:
-
CIE Lab, LCh, XYZ, Yxy
-
Repeatability Error:
-
Delta E*ab≤0.04
-
UV Light Source:
-
Yes
-
Equivalent Model:
-
X-rite eXact Standard
3nh YD5010 45/0 CMYK spectrophotometer for paper printing color measurement and density test
| Functionality | YD5010 | YD5050 | |
| Density Index | CMYK,Spot Colors | CMYK and Spot | CMYK and Spot |
| Density State | T,E,A,I | T,E,A,I | |
| Density Trend | √ | √ | |
| Densitometry | √ | √ | |
| CMY Balance | √ | √ | |
| Dot Area | √ | √ | |
| Dot Gain | √ | √ | |
| Overprint | √ | √ | |
| Printing Characteristics | √ | √ | |
| Printing Contrast | √ | √ | |
| Tone Errors and Gray Patch | √ | √ | |
| Printing Plate | √ | √ | |
| Chromaticity index | L*a*b*,L*C*h° | √ | √ |
| dE*76,dE*94,dE*00,dECMC | √ | √ | |
| A,C,D50,D55,D65,D75,F2,F7,F11,F12 | √ | √ | |
| XYZ,Yxy | √ | √ | |
| Special | Reflection Graph | √ | √ |
| Paper Indices | √ | ||
| Opacity | √ | ||
| de Trend | √ | ||
| Metamerism | √ | ||
| Absolute Color Strength | √ | ||
| Relative Color Strength | √ | ||
| Best Match | |||
| QC Function | Paper QC | ||
| Best Match Table | |||
| Ink QC | |||
| TVI Table | |||
| Gray Balance QC | |||
| G7,PSO,ISO,JapaColor | |||
| Custom Work Template | |||
| Color Library | Pantone PMS+ | ||
| PantoneLIVE | |||
| Custom color library | |||
| Security | Security Settings | ||
| Multiple User Profiles | |||
| Other | Scan Mode | ||
| Spectral Data Derivation | √ | ||
| Pass or Failure | √ | √ | |
| Averaging | √ | ||
| Sample Storage | |||
| Standard | |||
| Interface | USB | √ | √ |
| Bluetooth | √ | ||
| Software | √ | √ |
3. Detailed Introduction to Instrument

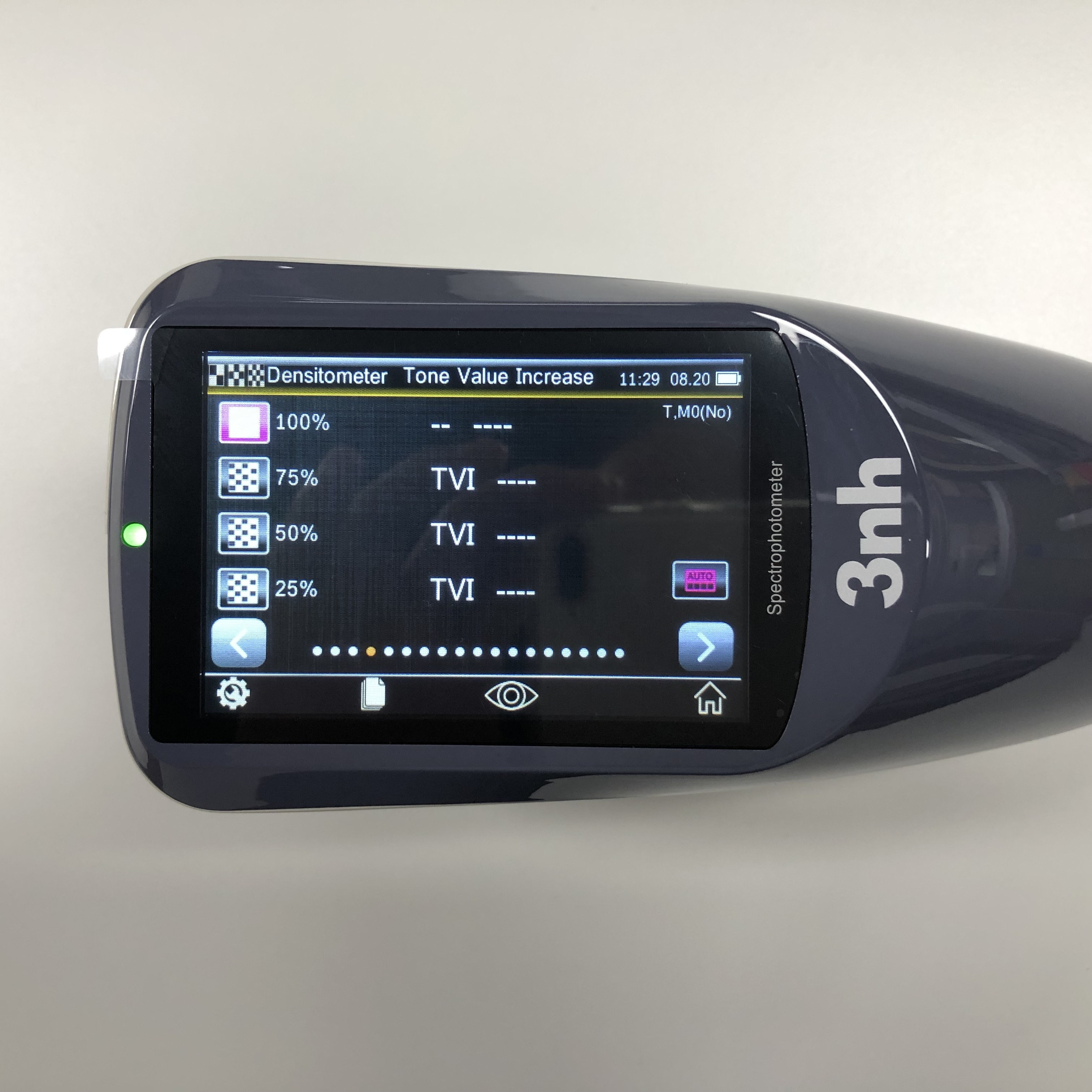

3.1. High configuration of hardware: 3.5 inches TFT capacitance screen-touch display, showing more comprehensive density and colorimetric indexes in one screen, making your operation more convenient and freer, checking the information you want very soon.
3.2. Dual Array 256 Image Element CMOS detector, making it have a high resolution and more sensitive to density and colors.
3.3. Long life-span stable LED & UV LED lamps which can generate different kinds of light sources and color temperatures more accurately. LED lamps are famous for their durablility which makes the instrument more stable and durable.
3.4. UV light source, can measure fluorescent colors more accurately.
3.5. Pass/Fail test result indication, help you to decide whether the color of the sample meets the requirements very promptly.
3.6. Color Offset/Deviation Direction indication between the standards and the samples which is definitely helpful for you to figure out the wanted color formulation.
3.7. All the parameters about printing: CMYK, Density, Dot Area, Dot Gain, etc. One instrument meets all requirements.
3.8. Optics 45°/0 Geometry, the optical geometry which are widely adopted in color measuring instruments. Reflective 45°/0 Geometry is for measuring colors of non-transparent targets.
3.9. Customizable measuring apertures: ∅2mm or ∅4mm or ∅8mm, different choice according to different application situations.
3.10. Multiple kinds of Color Spaces, Color Difference Formulas and Colorimetric Indexes, meet different requirements for color measurement and color analysis.
3.11. Include multiple kinds of light source types, can be applied to most of the color measurement situations.
3.12. Two color measurement modes: Quality Mode and Average Mode, meet more color management situations.
3.13. Powerful data management functions, you can search and check records, rename and delete records, input standards.
3.14. Configured with a PC terminal software SQCX, more extended powerful functions for color data management can definitely facilitate your color management work.
3.15. USB data port, implement data transmission more convenient and prompt.
