Quick Details
-
Model:
-
ZS163FMK-2, S Series
-
Max.Power:
-
9.5/8000 kw/r/min
-
Max.Torque:
-
11.5/6500 N.m/r/min
-
Compression ratio:
-
8.8:1~9.5:1
-
Fuel Consumption:
-
354 G/Kw.h
-
Lubrication Method:
-
Force-Feed & Splash
-
Bore And Stroke:
-
62*58mm
-
Cylinder:
-
Single
-
Lgnition:
-
DC-CDI
Quick Details
-
Displacement (ml):
-
175ml
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Chinese Motorcycle Engines
-
Model:
-
ZS163FMK-2, S Series
-
Max.Power:
-
9.5/8000 kw/r/min
-
Max.Torque:
-
11.5/6500 N.m/r/min
-
Compression ratio:
-
8.8:1~9.5:1
-
Fuel Consumption:
-
354 G/Kw.h
-
Lubrication Method:
-
Force-Feed & Splash
-
Bore And Stroke:
-
62*58mm
-
Cylinder:
-
Single
-
Lgnition:
-
DC-CDI

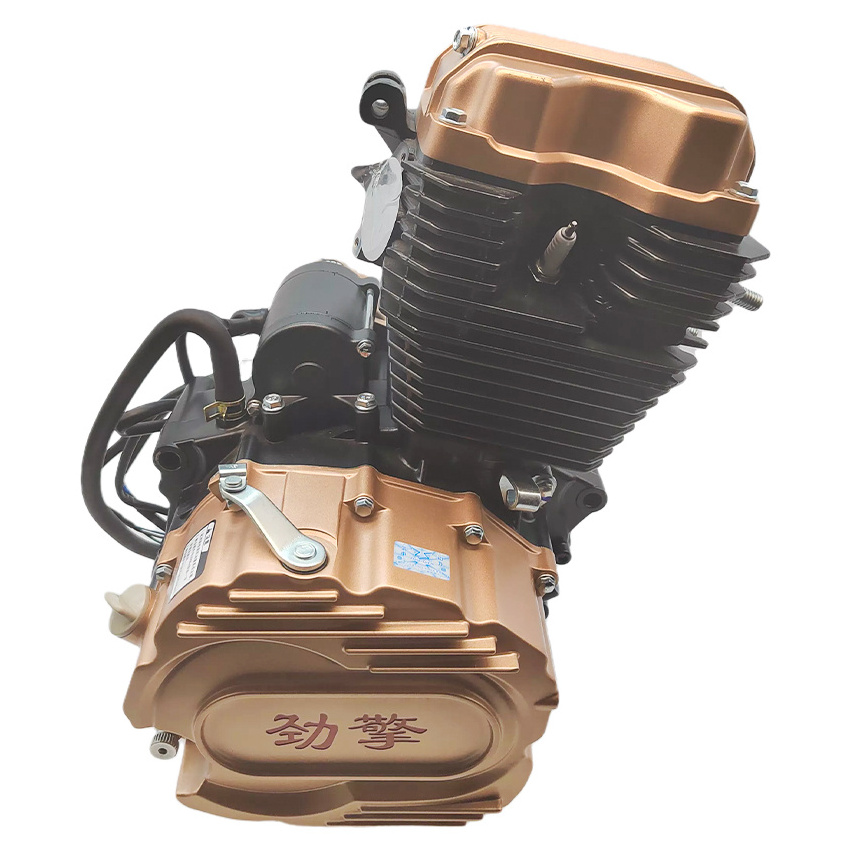

Three-Wheels Motorcycle Tricycle Zongshen 5 Speed Gears CG175cc Motor Dirt Bike Air-Cooled 4-Stroke 175cc Engine For Honda
Features:
1:Using the Top10 technologies of Hi-Valiant series to build its roles of as a flagship among air cooling engines.The cylinder head and the cooling fins of the case are enlarged,and an oil sump and additional cooling fins are mounted on the bottom of the case,which increases cooling area to 1160
cm
² and reduces engines oil temperature by at least 15°C.
2:The lubrication and transmission systems are fully optimized to increase the reliability and durability.
3:New-designed air passage of the cylinder head adopts a tumble passage,which provides better performance when compared with passage.
4:The drive ratio of electrical starts is improved to reduce the starting currant of motor.
5:The oil sump is enlarged and the oil capacity increases to 1400ml
6:Clutch Mode: Multi-disc manual wet clutch
7:Gearshift Mode: Constant mesh,2-stage transmission,5 gears
8:Welcome OEM & ODM service
