Quick Details
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
3000K/4000K/5000K adjustable
-
Input Voltage(V):
-
AC120VAC
-
Lamp Luminous Flux(lm):
-
4800
-
CRI (Ra>):
-
80, 80
-
Working Temperature(℃):
-
-30 - 50, -30 - 50
-
Working Lifetime(Hour):
-
30000, 30000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kili
-
Model Number:
-
IPN-1020-3CT
-
Product name:
-
Slim Flat Panel Light
-
Certificates:
-
ETL/cETL,FCC.
-
Operating temperature:
-
-30℃ Up to 50℃ (-22℉up to122℉)
-
Power Factor:
-
>0.90
-
Beam Angle(°):
-
120
-
Luminous Efficacy(lm/w):
-
100
-
CCT:
-
3000K/4000K/5000K Adjustable
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Application:
-
Home,Office,Indoor
-
Lamp Body Material:
-
Aluminum
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
3000K/4000K/5000K adjustable
-
Input Voltage(V):
-
AC120VAC
-
Lamp Luminous Flux(lm):
-
4800
-
CRI (Ra>):
-
80, 80
-
Working Temperature(℃):
-
-30 - 50, -30 - 50
-
Working Lifetime(Hour):
-
30000, 30000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kili
-
Model Number:
-
IPN-1020-3CT
-
Product name:
-
Slim Flat Panel Light
-
Certificates:
-
ETL/cETL,FCC.
-
Operating temperature:
-
-30℃ Up to 50℃ (-22℉up to122℉)
-
Power Factor:
-
>0.90
-
Beam Angle(°):
-
120
-
Luminous Efficacy(lm/w):
-
100
-
CCT:
-
3000K/4000K/5000K Adjustable
Product description

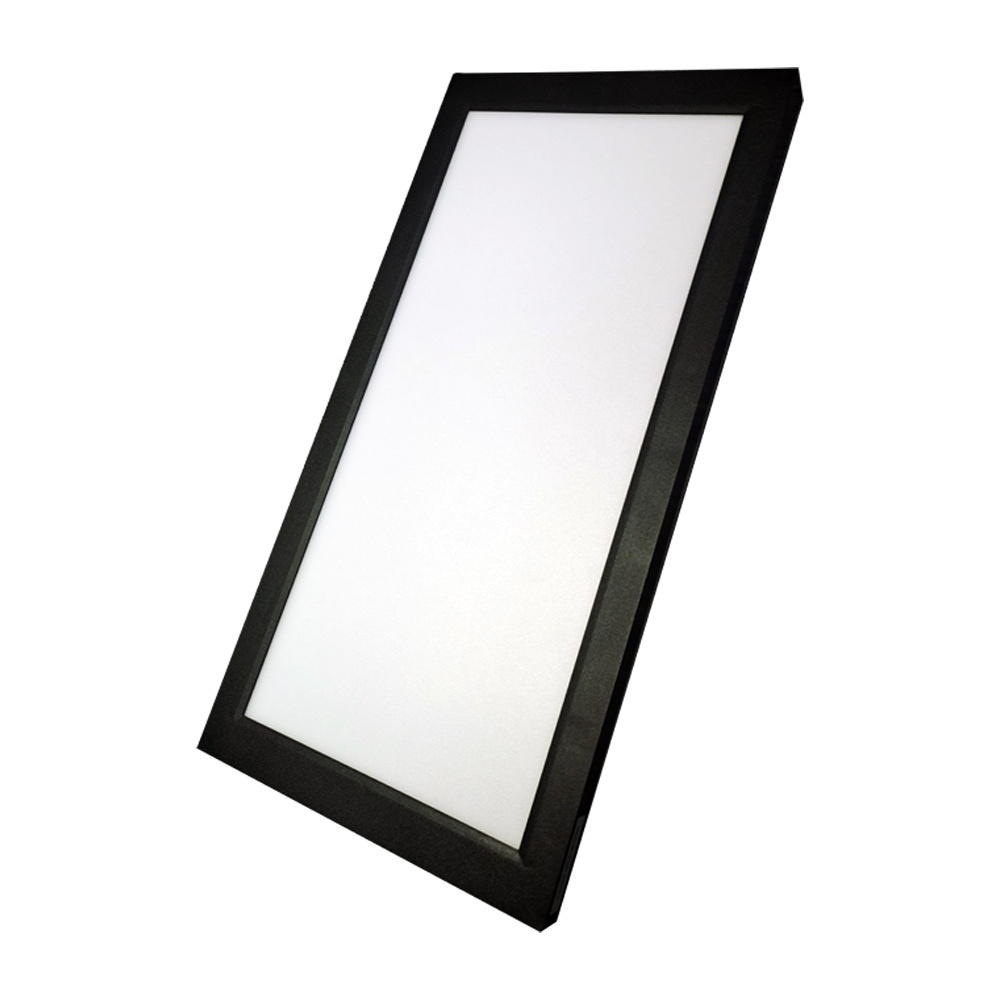

Kili 1x1 1x2 and 1x4 surface mount panel light are designed especially both residential and commercial buidlings. CCT Dip Switch makes 3 CCT selectable（3000K/4000K/5000K). High quality internal driver, flat design can be quickly & easily installed as a surface mount, flush mount without a mounting kit. This LED panel light provides new-generation light guide
technology, letting you directly look at the lights without pressure and glaring. These panel lights can save you up to 85% in energy consumption.
technology, letting you directly look at the lights without pressure and glaring. These panel lights can save you up to 85% in energy consumption.
Details description
1、Size
2、Color
3、Lens
Specification
- Input Voltage: 120VAC
- Power factor: >95%. THD<15%
- Luminous Efficacy: up to 105lm/w
- Colour Rendering Index: 80RALED
- Type: High performance LM80 SMD LED
- Operating Temperature: -30℃ up to 50℃(-22°F up to 122°F)
- Power factor: >95%. THD<15%
- Luminous Efficacy: up to 105lm/w
- Colour Rendering Index: 80RALED
- Type: High performance LM80 SMD LED
- Operating Temperature: -30℃ up to 50℃(-22°F up to 122°F)
|
Produce Code
|
IPN-1020-3CT
|
IPN-1020-6CT
|
IPN-1040-3CT
|
IPN-1040-6CT
|
|
Size
|
1*2ft
|
1*2ft
|
1*4ft
|
1*4ft
|
|
Power Consumption(W)
|
24W
|
24W
|
48W
|
48W
|
|
Lumens Delivered (lm)
|
2400lm
|
2400lm
|
4800lm
|
4800lm
|
|
Efficacy (lm/W)
|
100lm/w
|
100lm/w
|
100lm/w
|
100lm/w
|
|
Beam Angle
|
120°
|
120°
|
120°
|
120°
|
|
CRI
|
80
|
80
|
80
|
80
|
|
Color Temperature
|
3000K4000K/5000K
|
3000K4000K/5000K+Night
|
3000K4000K/5000K
|
3000K4000K/5000K+Night
|
|
Power Factor
|
>0.9
|
>0.9
|
>0.9
|
>0.9
|
|
Housing
|
PC(Cover)
|
PC(Cover)
|
PC(Cover)
|
PC(Cover)
|
|
Input Voltage
|
120VAC 50/60Hz
|
120VAC 50/60Hz
|
120VAC 50/60Hz
|
120VAC 50/60Hz
|
|
Installation
|
Surface
installation
|
Surface
installation
|
Surface
installation
|
Surface
installation
|
|
Operating Temperature
|
-30°C-+50°C
|
-30°C-+50°C
|
-30°C-+50°C
|
-30°C-+50°C
|
|
Certification
|
ETL/cETL
|
ETL/cETL
|
ETL/cETL
|
ETL/cETL
|
|
Warranty
|
3 years
|
3 years
|
3 years
|
3 years
|
COMPATIBLE DIMMER LIST
Leviton：6672/6631
Lutron： MSCL-OP153MH-WH，PD-6WCL-WH，MACL-153M，DVCL-153P，DV-600P，SCL-153PH-WH， MACL-153MR-WH DVW-603PGH-WH
Lutron： MSCL-OP153MH-WH，PD-6WCL-WH，MACL-153M，DVCL-153P，DV-600P，SCL-153PH-WH， MACL-153MR-WH DVW-603PGH-WH
Package Information
|
Code
|
Qty(Pcs/Ctn)
|
Carton Size（L*W*H (CM)）
|
N.W.(Kgs)
|
G.W.(Kgs)
|
CBM（Per Ctn）
|
|
IPN-1040-6CT
|
2
|
120*12*37.5
|
10.34
|
11.36
|
0.054
|
|
IPN-1040-3CT
|
2
|
121*14*38
|
10.2
|
12.04
|
0.064
|
|
IPN-1020-6CT
|
2
|
65.5*16.5*36.5
|
5.04
|
6.12
|
0.039
|
|
IPN-1020-3CT
|
2
|
66*12*37
|
5.36
|
5.99
|
0.029
|
Application
1. Office
2. Shopping Mall
3. Home
4. Hotel
5. Art Lighting
2. Shopping Mall
3. Home
4. Hotel
5. Art Lighting
Company introduction
Kili-LED Lighting.founded in 2006, is a state-level high-tech enterprise and TüV ISO 9001:2008 certified and registered company. Currently there are over 100 employees, including more than 10 r&d personneland ，a fabrication area of more than 10,000 square meters. Our company has advanced LED luminaire manufacturing and test facilities such as auto soldering and SMT machines, programmable constant temperature and humidity testing machine,high temperature aging oven,ultraviolet weather-proof machine,salt mist spraying testing machine,lighting surge simulator,IP68 waterproof test machine, electrical testing device such as integrating spheres and distribution photometer, AOI tester,RoHS scanner, and an independent EMI laboratory as well. We also have a professional trained QC team to ensure the quality of all the products. And all the products are CE certified as well as RoHS compliant,and some of the products are DLC and Energy Start compliant.
Quality Management
PCB testing
Aging testing
Power testing
Wires,Connectors,Accessories checking
Appearance checking
Labels checking
Inner boxes packing
Cartons Packing
Warehouse
Certifications
FAQ
Q1: Does Kili Lighting accept the OEM /ODM order?
A:Welcome !OEM/ODM order is aviailable， we have more than 10 persons R&D Team，please contract us for further details.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q4: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
A:Welcome !OEM/ODM order is aviailable， we have more than 10 persons R&D Team，please contract us for further details.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. How to pay？
A:T/T；L/C；Western Union；Paypal；ETC.are acceptable.
A:T/T；L/C；Western Union；Paypal；ETC.are acceptable.
Q4: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
