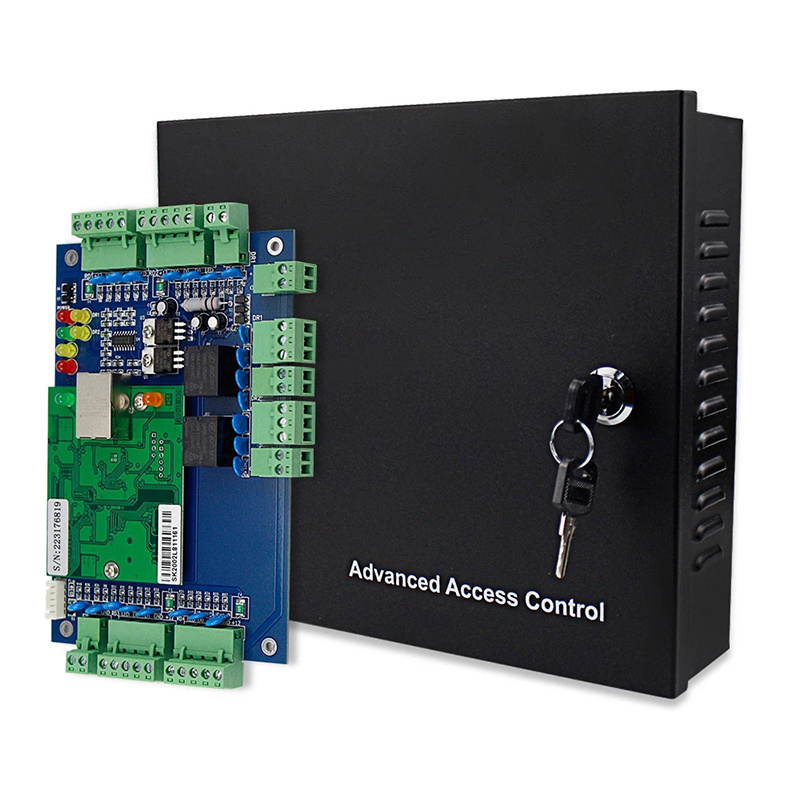

TCP/IP Ethernet Access Control Board 1 2 4 Door Compatible with All RFID Card Reader WG26 Network Door Access Controller

TCP/IP Ethernet Access Control Board 1 2 4 Door Compatible with All RFID Card Reader WG26 Network Door Access Controller

FOB Reference Price: Get Latest Price

≥10 Sets

US $29

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Yistar

Model Number:: LP

Type:: Other

User Capacity:: 20,000

Log capacity:: 100,000

Communication:: TCP/IP

Power supply:: DC 12V

Control door:: 1/2/4 doors

Apply to:: WG access management software

Wiegand distance:: ≤80m

Function:: Interlock, Anti-passback, First card open, Multi-Card open

Board size:: 160*106*16(mm)

Quick Details

Special Features:: One-more ways

Customized support:: Customized logo, Online technical support

Place of Origin:: Guangdong, China

Brand Name:: Yistar

Model Number:: LP

Type:: Other

User Capacity:: 20,000

Log capacity:: 100,000

Communication:: TCP/IP

Power supply:: DC 12V

Control door:: 1/2/4 doors

Apply to:: WG access management software

Wiegand distance:: ≤80m

Function:: Interlock, Anti-passback, First card open, Multi-Card open

Board size:: 160*106*16(mm)

Products Description

Communication: TCP/IP Software Supportable Database: Access & SQL
Number of door controls: 1 door/2 doors/4 doors (Get in and out door by swiping card, or get in by swiping card and get out door by button)
Number of readers: 2/ 4 readers
Door opening time extension: Setting: 1 ~ 600 seconds (adjustable)
Number of controllers: Unlimited (Remark: N denotes qty of computer serial port or qty of 485hub port, support 256pcs ports)
Number of users: 20,000 users
Number of event buffers (offline): 100,000 event buffers
Power input: DC 12V, 4 ~ 7A
Power consumption of the PCB: Less than 100mA
Software supportable database: Access & SQL
Input format of the reader: Wiegand 26 bit (All card readers with compatible protocol like HID, EM, M1 etc.)
Max distance from reader to controller: 100m (default distance 80m)
Alarm for long time door open, illegal entry, intimidate Fire and alarm linkage:
If there is no connection to the expansion card, only has software interface alarm and control the computer speaker. When
connected with expansion car
Remote control module: Yes
Anti-submarine back and anti-tail: Yes
Multi-Card Open Door: Yes open long time at specific time: Yes
Electronic Card: Yes
Emergency Lock: Yes
First card unlock: Yes
Unlock based on internal and external
validation: Yes

Features

Details Images

Software Program

After Sales Service

Warranty: 2 years.

Warranty way: Replace directly instead of fix.

Once u have any technician and install problems, pls contact with engineer by email, our engineer will give u feedback in 15 mins.

Once u have any problems with the sellers, pls kindly feedback to the sales director.

Company Introduction

YSTech is one of the most professional electric locks manufacturers in Asia which has zhongshan factory and Enping factory that covering an area of 10,000 square meters. We have strong R&D skills, production capacities and distribution channels. Our products are Magnetic locks, Electric striker, Drop bolt, RFID cards, Access control reader, Fingerprint door lock, Exit buttons, Door holder, remote control and other access control accessories, which totally over 200 kinds of products. YSTech boasts a talented and experienced team of technicians with top-notch skills in design and development. Equipped with the digitalized automatic equipments, we are dedicated to ensure the consistency and quality of each product. Our high production controls and standards to make sure every products are 100% pass. The products have 3 years warranty. The newly-designed series of YS products are esthetic, safe and durable. In compliance with the international standard, we have been exported to more than 100 countries successfully, including Asian, European, African, South American and the Middle East countries. We are one of most important access control coorperative partners in the world. We also provides OEM&ODM services which are extensively applied in access control, communications among buildings and emergency exits, etc. Our reliable products have gained an extensive recognition from customers domestically and abroad.Currently, we have obtained intellectual property rights for our core products. They have been certified by the CE 、MA、ROSH、ISO9001、UL and PCT. After many years development, Our product are widely used in the major airports, customs, metro stations, Olympic Games, Telecommunications, Government, Banck, Factories, Campus, Hotels, Schools, Offices, Intelligent Community And so on.

Production Flow Chart

Raw materials into the factory → qualified inspection → production of silicon steel sheet → annealing treatment → winding treatment → injection molding → grinder treatment → electroplating treatment → lock body detection → circuit board detection → aging test → tension and electrical properties detection → packaging and storage

Certifications

FAQ

Q1, Do you provide OEM & ODM?

A: Yes, We do support, we have 10 years OEM & ODM experience which can satify all customers requirement.

Q2, How about Warranty?

A: We provide 1 year Warranty for all electric locks, the locks will be replaced instead of fixed.

Q3, How about the payment terms?

A: We accept T/T, Western union, Money Gram, Paypal; Trade Assurance ect..

Bulk Standard Order: 30% deposit first, 70% balance before shipment.

Bulk OEM & ODM Order: 50% deposit first, 50% balance before shipment.

Q4, How we can trust ur company？

A: Yistar is a 10 years company in security field which professional in magnetic lock, electric bolt and RFID cards, and alibaba trade assurance will protect buyers.

Q5, What is the deliver time?

A: It depends on customers order quantity , season and requirement details, the following time is for u to reference.

Standard device: Sample: < 3 days.

100pcs < 7 days.

1000pcs< 15 days.

5000pcs< 25 days.

OEM device: Sample: < 5 days.
100pcs < 10 days.
1000pcs< 20 days.
5000pcs< 30 days.

Q6, What kind of certificate do u have?

A: CE, FCC, ROHS ect.

Q7, Which shipping way your company normally use?

A: DHL, TNT, UPS, FEDEX express way; By sea; By air; customers forwarder etc.

Q8, How about after-sale service.

A: We have technician team to support the install guide and technician problems, pls send email to support @yistartech.com once u need any help.
