Quick Details
-
After-sales Service:
-
Engineers available to service machinery overseas
-
Product name:
-
Car Disc Brake Lathe
-
Brand:
-
TIMAC TOMEWAY
-
Tool post Travel:
-
250 mm
-
Feed Rate:
-
0.16 mm/r
-
Name:
-
Brake Drum Lathe
-
Type:
-
Disc Cutting Machine
-
Machine Type:
-
Car Brake Lathe
-
color:
-
Customer Choose
-
key selling point:
-
competitive price
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TIMAC TIMEWAY
-
Weight (KG):
-
470
-
After-sales Service:
-
Engineers available to service machinery overseas
-
Product name:
-
Car Disc Brake Lathe
-
Brand:
-
TIMAC TOMEWAY
-
Tool post Travel:
-
250 mm
-
Feed Rate:
-
0.16 mm/r
-
Name:
-
Brake Drum Lathe
-
Type:
-
Disc Cutting Machine
-
Machine Type:
-
Car Brake Lathe
-
color:
-
Customer Choose
-
key selling point:
-
competitive price
Product Description

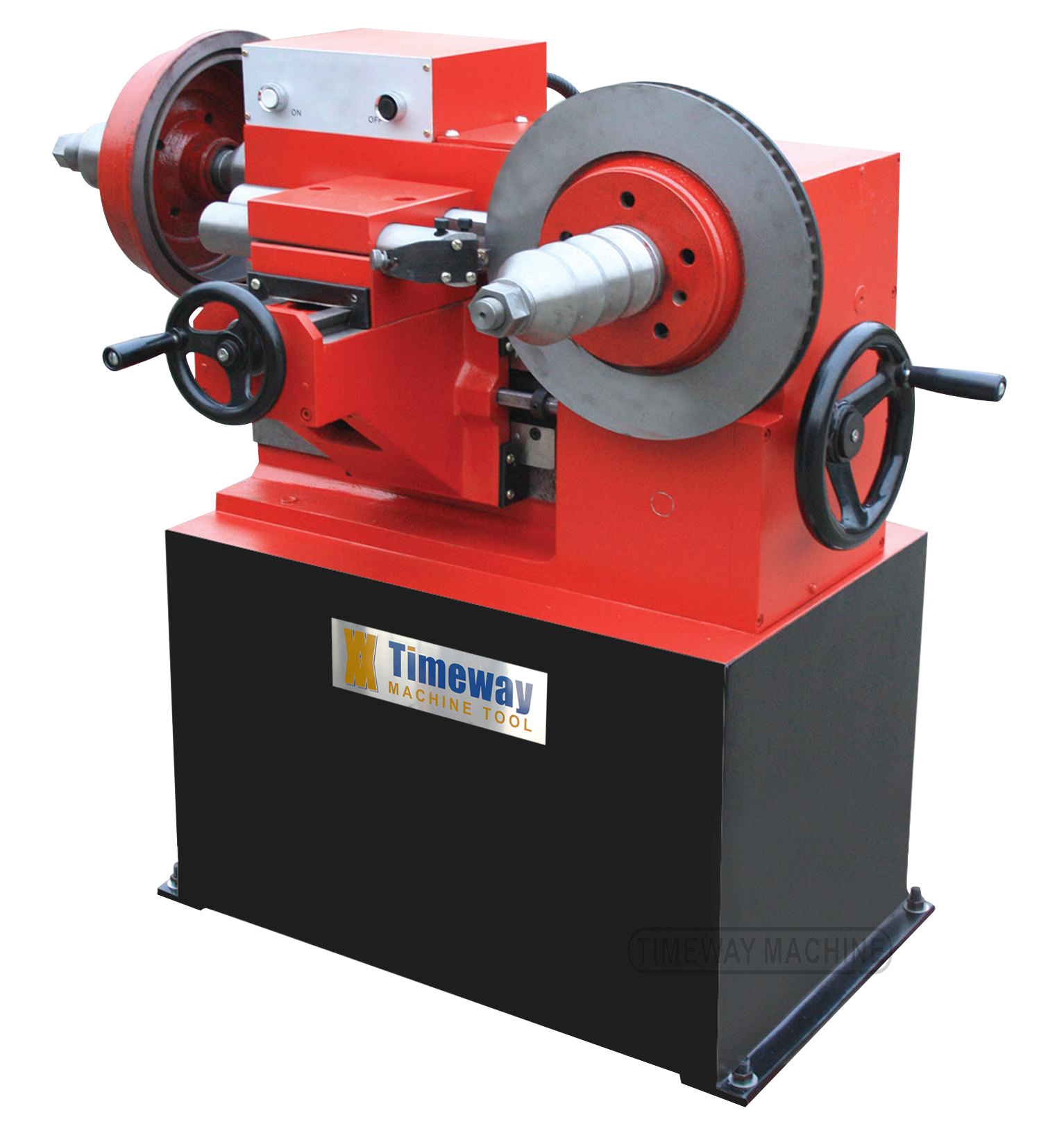

Brake Drum Lathe / Disc Brake Cutting Lathe
Feature：
1. Brake drum lathe T8465 is a kind of lathe. It can fulfill the reparation of the brake drum, disc and shoe of automobiles from minicar to medium trucks.
2. The brake drum/shoe can be cut on the first Spindle and the brake disc can be cut on the second Spindle.
3. This lathe has higher rigidity, accurate workpiece positioning and is easy to operate.
4. If you adopt this brake drum lathe, there is no doubt for your enterprise to set up higher reputation due to better process
quality and lower your process cost.
2. The brake drum/shoe can be cut on the first Spindle and the brake disc can be cut on the second Spindle.
3. This lathe has higher rigidity, accurate workpiece positioning and is easy to operate.
4. If you adopt this brake drum lathe, there is no doubt for your enterprise to set up higher reputation due to better process
quality and lower your process cost.
Specification
|
Specification
|
Unit
|
T8465
|
|
Drum dia. capacity
|
mm
|
180-650mm
|
|
Disc dia. capacity
|
mm
|
0-500
|
|
Spindle speed (three grades)
|
r/min
|
25, 40, 70
|
|
Tool post Travel
|
mm
|
250
|
|
Feed Rate
|
mm/r
|
0.16
|
|
Motor
|
kw
|
1.1/1400
|
|
Length
|
mm
|
800
|
|
Width
|
mm
|
875
|
|
Height
|
mm
|
940
|
|
Net Weight
|
kg
|
580
|
