Quick Details
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
sino cool
-
Standard or Nonstandard:
-
Standard

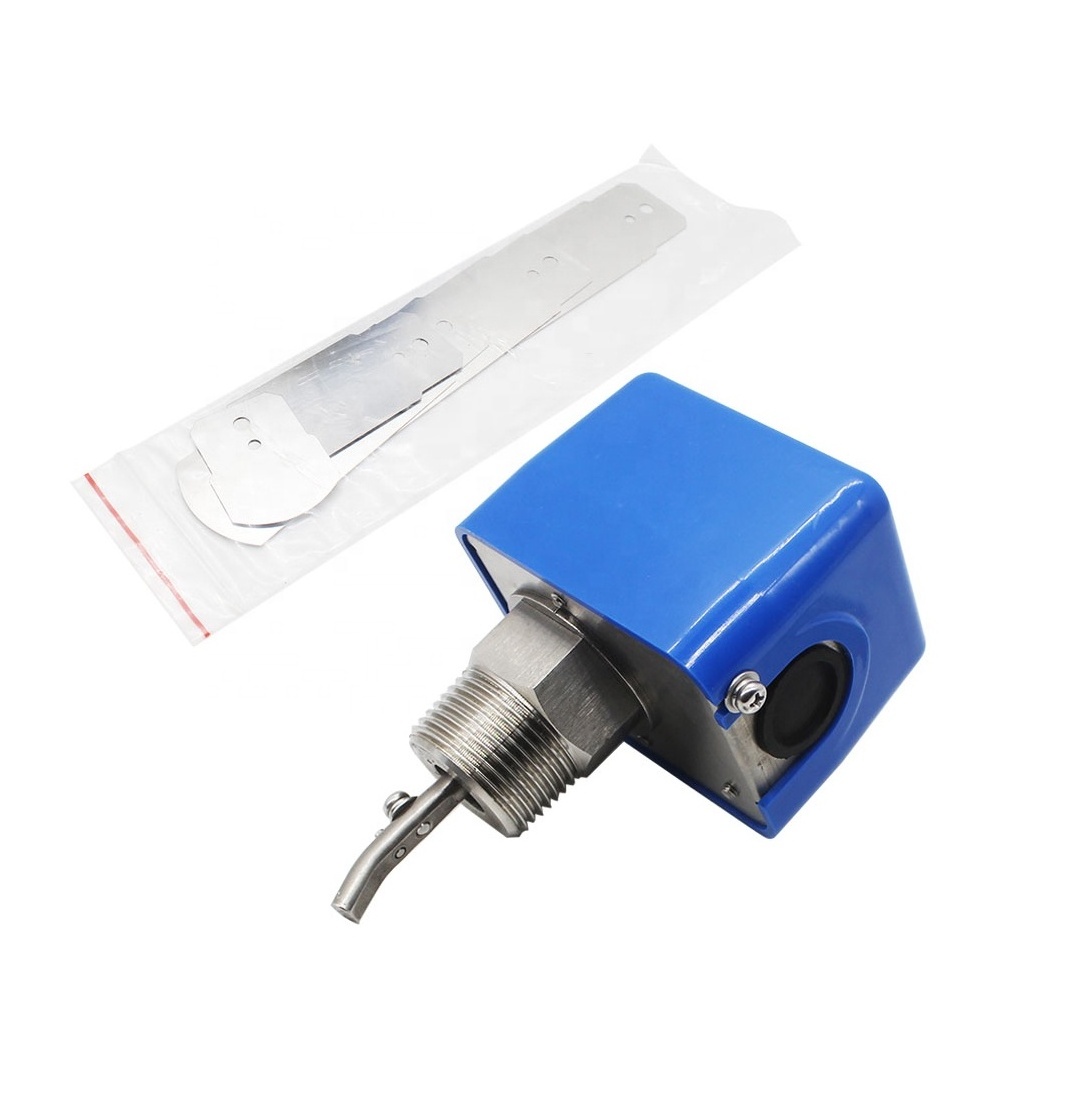

Paddle type Electronic Automatic Water Flow Switch for air conditioner HVAC system Controls copper brass Stainless Steel IP54 The paddle type C series are designed to provide excellent performance where accuracy, reliability, and rugged construction (IP54)are required used in llquid flow lines carrying water or any fluid
neither harmful to brass and prosphor bronze nor classified as a hazardous fluids.
They can be wired to close one circuit and open a second circuit when liquid flow either exceeds or drops below the adjusted flow rate. The C series are recommended for liquid pressure and temperature as
mentioned below and must not be used on llnes carrying liquids below 0 degree C
|
Operating Pressure
|
10kgf/cm² (1MPa)
|
|
Withstand Pressure
|
17.5Kgf/cm² (1.75MPa)
|
|
Insulation Resistence
|
Over 100Ω, DC500VM
|
|
Withstand Voltage
|
AC1500V/1minute
|
|
Contact Point Life
|
1000K Cycle
|
|
Bellows Life
|
500K Cycle
|
|
Temperature of Fluid
|
Max 100°C (212°F)
|
|
Body Size
|
1"(HTW-WS-25), 3/4"(HTW-WS-20),1/2"(HTW-WS-15)
|
