Quick Details
-
Model Number:
-
WJ41H-16
-
Brand Name:
-
JITONG
-
Connection:
-
Flange
-
Certification:
-
IECEE
Quick Details
-
Port Size:
-
DN15-DN450
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Model Number:
-
WJ41H-16
-
Brand Name:
-
JITONG
-
Connection:
-
Flange
-
Certification:
-
IECEE
|

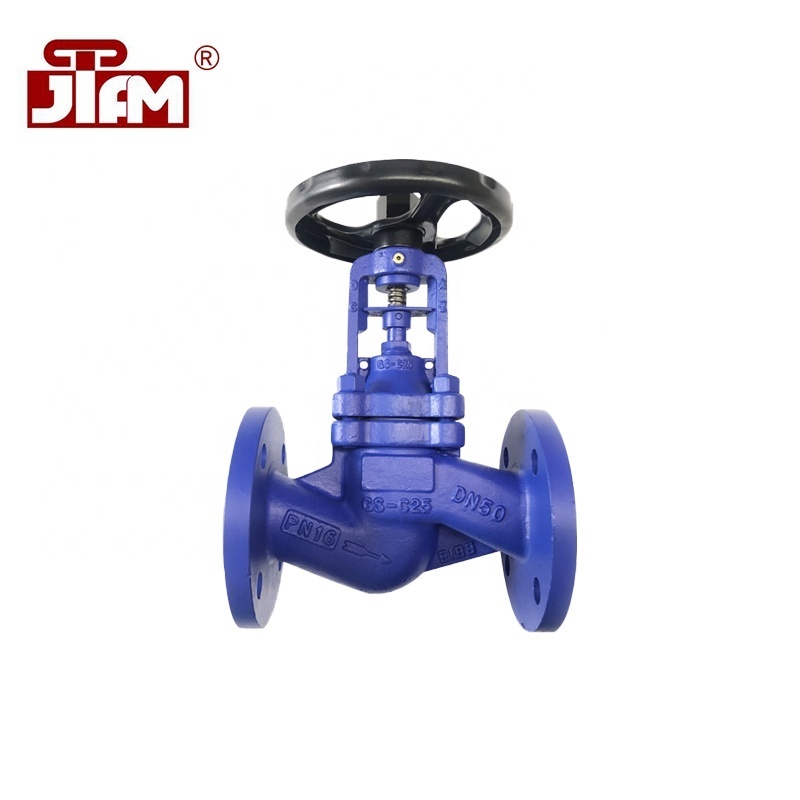

product name
|
bellow seal globe valve
|
|
work temperature
|
-29℃-425℃
|
|
Nominal diameter
|
DN15-DN450
|
|
connection form
|
Flange
|
|
Nominal pressure
|
1.6MPa 2.5MPa 4.0MPa
|
|
Applicable medium
|
Water ,Heat conduction oil, Hot and cold water
|
|
Color
|
customer's request
|
|
Material
|
CS-C25,WCB CF8M,CF3,CF3M
|
|
Standard
|
DIN EN 13709
|
|
1.6MPaMain outline connection dimension and weight
|
|
|
|
|
||||
|
diameter
|
L
|
H
|
D0
|
Weight(kg)
|
||||
|
15
|
130
|
195
|
130
|
4
|
||||
|
20
|
150
|
200
|
130
|
4.5
|
||||
|
25
|
160
|
220
|
130
|
5
|
||||
|
32
|
180
|
225
|
130
|
7
|
||||
|
40
|
200
|
235
|
150
|
9
|
||||
|
50
|
230
|
250
|
150
|
12.5
|
||||
|
65
|
290
|
260
|
180
|
18
|
||||
|
80
|
310
|
265
|
180
|
23
|
||||
|
100
|
350
|
370
|
200
|
41
|
||||
|
125
|
400
|
400
|
200
|
54
|
||||
|
150
|
480
|
515
|
400
|
90
|
||||
|
200
|
600
|
550
|
450
|
160
|
||||
|
250
|
730
|
600
|
450
|
260
|
||||
|
300
|
850
|
630
|
500
|
410
|
||||
|
350
|
980
|
680
|
500
|
610
|
||||
|
2.5MPaMain outline connection dimension and weight
|
|
|
|
|
||||
|
diameter
|
L
|
H
|
D0
|
Weight (kg)
|
||||
|
15
|
130
|
195
|
130
|
4
|
||||
|
20
|
150
|
200
|
130
|
4.5
|
||||
|
25
|
160
|
220
|
130
|
5
|
||||
|
32
|
180
|
225
|
130
|
7
|
||||
|
40
|
200
|
235
|
150
|
9.5
|
||||
|
50
|
230
|
250
|
150
|
13
|
||||
|
65
|
290
|
260
|
180
|
19
|
||||
|
80
|
310
|
265
|
180
|
24
|
||||
|
100
|
350
|
370
|
200
|
43
|
||||
|
125
|
400
|
400
|
200
|
57
|
||||
|
150
|
480
|
515
|
400
|
95
|
||||
|
200
|
600
|
550
|
450
|
168
|
||||
|
250
|
730
|
600
|
450
|
300
|
||||
|
300
|
850
|
630
|
500
|
510
|
||||
|
350
|
980
|
680
|
450
|
680
|
||||
|
4.0MPaMain outline connection dimension and weight
|
|
|
|
|
||||
|
diameter
|
L
|
M
|
D0
|
Weight (kg)
|
||||
|
15
|
130
|
195
|
130
|
4
|
||||
|
20
|
150
|
200
|
130
|
4.5
|
||||
|
25
|
160
|
220
|
130
|
5
|
||||
|
32
|
180
|
225
|
130
|
8
|
||||
|
40
|
200
|
235
|
150
|
10
|
||||
|
50
|
230
|
250
|
150
|
13.5
|
||||
|
65
|
290
|
260
|
180
|
20
|
||||
|
80
|
310
|
265
|
180
|
25
|
||||
|
100
|
350
|
370
|
200
|
45
|
||||
|
125
|
400
|
400
|
200
|
60
|
||||
|
150
|
480
|
515
|
400
|
98
|
||||
|
200
|
600
|
550
|
450
|
171
|
||||
|
250
|
730
|
600
|
450
|
340
|
||||
|
300
|
850
|
630
|
500
|
580
|
||||
|
350
|
980
|
680
|
500
|
780
|
||||
Henan Jitong Valve Co. , Ltd. is located in the "Home of China's Valves" - xingyang, north of the Yellow River, adjacent to the G310 National Road, Lianho Expressway and Bohai Railway, 12 kilometers from the provincial capital Zhengzhou, convenient transportation, logistics developed. Founded in 2008, the
plant covers an area of 13,000 square meters , after years of continuous development and innovation, with a wealth of product manufacturing and development experience, enterprises have passed ISO9001, TS and other domestic and international certification, has gradually become a certain scale of modern enterprises.
My company has strong technical force, sophisticated production equipment, testing means complete. Independent development and production of large-diameter valve capacity, the main products are: three eccentric all-metal sealed butterfly valve, double eccentric hemisphere valve , fast cut-off valve, high-performance anti-wheezing valve, water-sealed gas cut-off valve, plug valve, blind plate valve, gate valve, cut-off valve, check valve, ball valve and non-non-gas shut-off valve Standard valves and other more than a dozen varieties, its diameter from DN50 to 4200mm, pressure level from PN0.25 to 10.0MPa, operating methods have manual, umbrella gear, worm wheel, electric, pneumatic, liquid, electro-liquid, etc. Products are widely used in metallurgy, petrochemical, electricity, heating, environmental protection, paper, water supply and drainage
and other industries. Our company can also be based on user requirements for the design and production of non-standard valve products.
Henan Jitong Valve Co. , Ltd. has always adhered to the "survive by quality, science and technology for development" service concept, to provide you with network, information, intelligent industrial valves.Jitong Valve Co. , Ltd. and you share the new century technology , so that you feel close to the world's cutting-edge manufacturing technology . Product
production to after-sales service , throughout the "customer-centric" commitment, so that customers have no worries, advanced technology and advanced management concepts, to bring you quality assurance; User satisfaction is our greatest wish. Warmly welcome friends from all walks of life to guide the inspection work! We will, as always, with new and old customers sincere cooperation, create brilliant
