Quick Details
-
Surface treatment:
-
Black powder coated
-
Type:
-
3 point lock
-
Maximum Static Load:
-
250N
-
KEYWORD-3:
-
3 point door panel lock
-
Free sample:
-
Available, but freight collect
-
Management Certification:
-
ISO9001:2008
-
Handle Strength:
-
equal to or less than 330N
-
OEM/ODM,small order:
-
accepted
-
Standard or Nonstandard:
-
Can be customized
Quick Details
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
Lipson
-
Material:
-
Zinc Die Casting
-
Surface treatment:
-
Black powder coated
-
Type:
-
3 point lock
-
Maximum Static Load:
-
250N
-
KEYWORD-3:
-
3 point door panel lock
-
Free sample:
-
Available, but freight collect
-
Management Certification:
-
ISO9001:2008
-
Handle Strength:
-
equal to or less than 330N
-
OEM/ODM,small order:
-
accepted
-
Standard or Nonstandard:
-
Can be customized

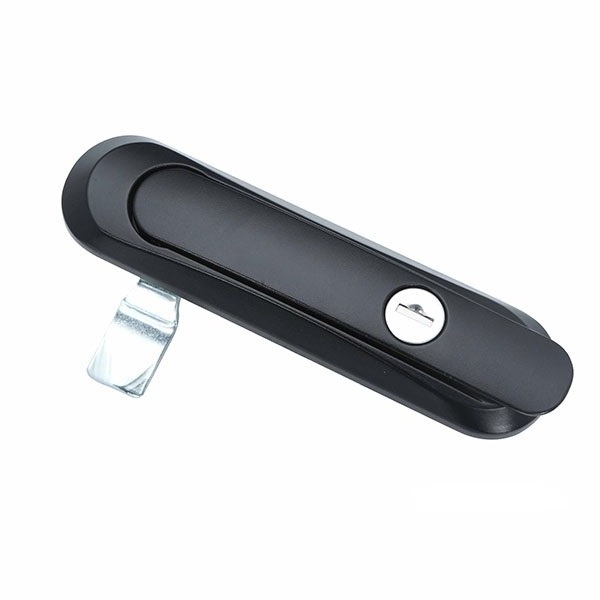

LM-840-5-2 Plane Electric Cabinet Swinghandle Electronic Recessed Panel Lock
Product Description
Product description for 3 point rod control panel swing handle lock
1.Material:
Zinc Alloy
2.Finish:
Black powder coated
3.Application:
Cubicle, control panel, cabinet door, distribution panel, kitchen
furnishings, electronic control box, cubicle and machinery door.
More pictures of 3 point rod control panel swing handle lock
More information of 3 point rod control panel swing handle lock
| Product Detail | |
| Product Name | Panel lever Latch,panel cabinet lock, lock for electrical panel, Swinghandle System, Flush Swing Handle, Industrial cabinet lock, Electric panel lock, electric latch, electrical panel latch, industrial cabinet latch, electric cabinet latch, electric cabinet lock, swing cabinet latch, swing cabinet lock, flush lock, lever latches, electrical panel door lock, Swing Handle, Locking Cabinet Latch |
| Material | Body:Zinc Die Casting Body |
| Shaft, cylinder:Zinc alloy die cast | |
| Cam:Steel with zinc plating | |
| Finish | LM-838-1:Gray chrome plated |
| LM-838-2:Black powder coated | |
| Feature | 1) Small protrusion from the panel surface and waterproof (O-ring and sheet packing) |
| 2) Handle can operate with the push-button when unlocking. | |
| 3) Push Buton is incorporated in the lift handle to increase the effective length of the grip so operation is easy | |
| 4) For both left hand and right hand use.(the left hand and right hand use can be changed by reversing the cam and stopper plate. | |
| Accessary Includes | 2keys, screws, stopper plate and installation plate. |
| Usage and Feature | Automotive, Passenger Vehicles and Trucks, Metal or nonmetal cabinet,public telephones,metro auto-gate,Intelligent Terminal Device,Financial Terminals,Game Consoles,Vending Machine,Strongbox, Advertising Box and etc. |
| Sample | Free samples in reasonable quantity for checking quality, freight charge should be paid by customer. |
| MOQ | 100 PCS |
| Certification | ISO9001:2008 |
| Payment | T/T, L/C, Paypal or others for negotiation. |
| OEM/ODM orders are accepted | |
size specification of 3 point rod control panel swing handle lock
