Quick Details
-
Voltage:
-
380V, 380V,50Hz
-
Power:
-
7kw
-
Dimension(L*W*H):
-
2800*1130*1550mm
-
Weight:
-
1100 kg
-
Marketing Type:
-
Hot Product 2023
-
After-sales Service Provided:
-
Online Support
-
Function:
-
Embossing Folding Counting
-
Final product:
-
Napkin Paper
-
Speed:
-
800 pcs/min
Quick Details
-
Production Capacity:
-
800 pcs/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MINGYUAN
-
Voltage:
-
380V, 380V,50Hz
-
Power:
-
7kw
-
Dimension(L*W*H):
-
2800*1130*1550mm
-
Weight:
-
1100 kg
-
Marketing Type:
-
Hot Product 2023
-
After-sales Service Provided:
-
Online Support
-
Function:
-
Embossing Folding Counting
-
Final product:
-
Napkin Paper
-
Speed:
-
800 pcs/min
sample size
Products Description
1.
High-speed production capacity:
800
pcs/min per minute, improving production efficiency
2.
Color printing function:
It can print single-color and multi-color printing functions to meet customer requirements
3. Wide range of application:
suitable for various paper thickness and size requirements, and can be customized according to customer needs
|
Product Type
|

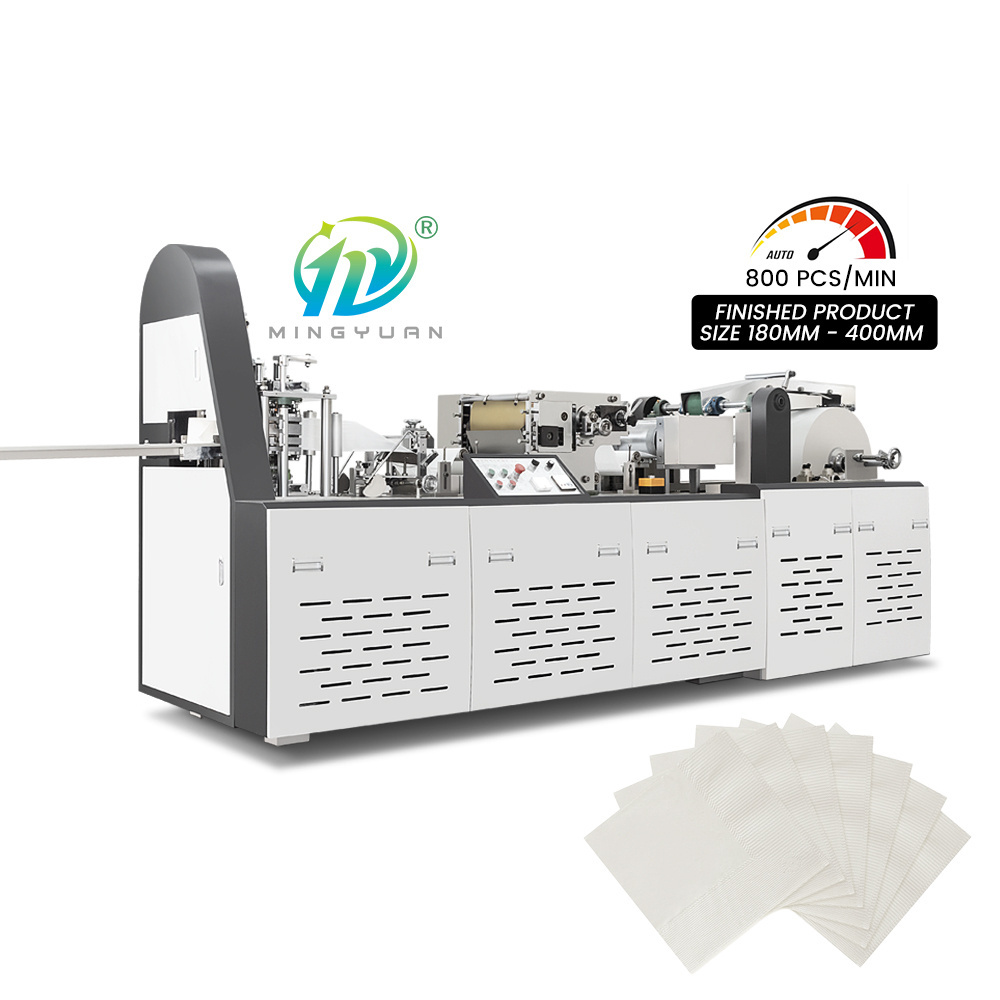

Paper Napkin Machine,Paper Napkin Machine
|
|
||
|
Machine Model
|
MYC-CJ180
|
MYC-CJ330
|
||
|
Napkin Specification
|
Finished folding size 180*180mm(or other specification size)
|
Finished folding size 180*180mm(or other specification size)
|
||
|
Speed
|
500-600 pcs/min(with printing speed）
|
700-800 pcs/min(without printing machine )
|
||
|
Weight
|
1100KGS
|
1700KGS
|
||
|
Machine Dimension
|
2800*1130*1550mm
|
3000*960*1550mm
|
||
|
Power source
|
380V，50 HZ
|
|
||
|
Power Consumption
|
7KW
|
|
||
|
Raw Material
|
230-410mm
|
|
||
|
Paper Core Diameter
|
76.2mm
|
|
||
|
Raw Paper Maximum Diameter
|
1100mm
|
|
||
|
Band Saw Size
|
0.6X32X3450mm
|
|
||
|
OEM ( Show Client Company Name in Machine Panel ) is welcome in our factory
|
|
|
||
Production Process
Product Details
1.
Control Panel:
Simple and easy to operate, equipped with better quality switches andbutton , All the operation can be finished and controlled in this panel
2.
Electric System:
Electrical System with CHINT and other high-quality brand electricalcomponents, stable and better quality
3.
Raw Material Stand:
Raw paper roll can be put on this stand and paper unwinding bytransmission belt.
4.
Pattern Embossing Unit:
Pattern matching paper rolling device, pattern significantly.
5.
Color Printing Device:
Adopts flexible printing,the design can be customized design as yourrequirement, Using professional color priting anilox and string inkrollers which can the water ink equally spread , the printing logo isclear and bright.
6.
Folding Unit:
Folding board with mechanical hand to fold paper shape, and thencutting by bandsaw cutter.
7.
Main Motor and Bandsaw Motor:
provide the power for the Transmission belt drive system and bandsawcutter.The equipment is equipped with a wide belt synchronousconveying device and two control tension devices to ensure thedimensional accuracy of the folded finished product
8.
Speed Regulator:
Adjust the unwinding speed of the belt to change the machine speed
9.
Collecting Table:
For stocking finished napkins and easy to collect
Long-term Cooperation Brand
Company Strength
Packing and shipping
FAQ
Q1.Are you factory?
A:
Yes! We are the professional manufacturer in China more than for 13 years.
Welcome to visit our factory.
Q2. Do you have quality certificate?
A: we have got the ce certificate for our machine.
Q3. What's the delivery time?
A: Around 20~30 days, however, based on order.
Q4.What is after-sales services?
Q2. Do you have quality certificate?
A: we have got the ce certificate for our machine.
Q3. What's the delivery time?
A: Around 20~30 days, however, based on order.
Q4.What is after-sales services?
A:
The machine will guaranteed for one year. We will replace the damaged spareparts (except easy
damageable parts)within one year. After one year we willtrace the technology and quality for long time.
Q5.How does your factory do regarding quality control?
A: Quality is priority. Our Factory always attach great importance to quality controlling from the very beginning to the very end:
1). Skilful workers care every details in handling the producing and packing processes;
2). Quality Control Department specially responsible for quality checking in each process.
Q6. What terms of payment you usually use?
A: T/T 30% deposit and 70% before machine loading, Western Union, L/C at sight.
damageable parts)within one year. After one year we willtrace the technology and quality for long time.
Q5.How does your factory do regarding quality control?
A: Quality is priority. Our Factory always attach great importance to quality controlling from the very beginning to the very end:
1). Skilful workers care every details in handling the producing and packing processes;
2). Quality Control Department specially responsible for quality checking in each process.
Q6. What terms of payment you usually use?
A: T/T 30% deposit and 70% before machine loading, Western Union, L/C at sight.
