Quick Details
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
wire mesh decking
-
Model Number:
-
wire mesh decking
-
Depth:
-
2.0mm
-
Weight Capacity:
-
500-4000kg/level
-
Width:
-
1000-3000mm
-
Height:
-
2000-15000mm
-
Certification:
-
ce
-
wire mesh size:
-
24"x46", 42"x46", 60"x46" or others
-
surface treatment:
-
ganvalnized and powder coated
-
loading capacity:
-
500kg, 1000kg, 1500kg
-
OEM:
-
available and on your requirements
-
function:
-
storage racking support
Quick Details
-
Type:
-
Selective Pallet Rack
-
Material:
-
Steel
-
Feature:
-
Corrosion Protection
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
wire mesh decking
-
Model Number:
-
wire mesh decking
-
Depth:
-
2.0mm
-
Weight Capacity:
-
500-4000kg/level
-
Width:
-
1000-3000mm
-
Height:
-
2000-15000mm
-
Certification:
-
ce
-
wire mesh size:
-
24"x46", 42"x46", 60"x46" or others
-
surface treatment:
-
ganvalnized and powder coated
-
loading capacity:
-
500kg, 1000kg, 1500kg
-
OEM:
-
available and on your requirements
-
function:
-
storage racking support
used pallet racking galvanized wire mesh price philippines metal shelving
Selective pallet racking Wire decking Boltless metal shelving

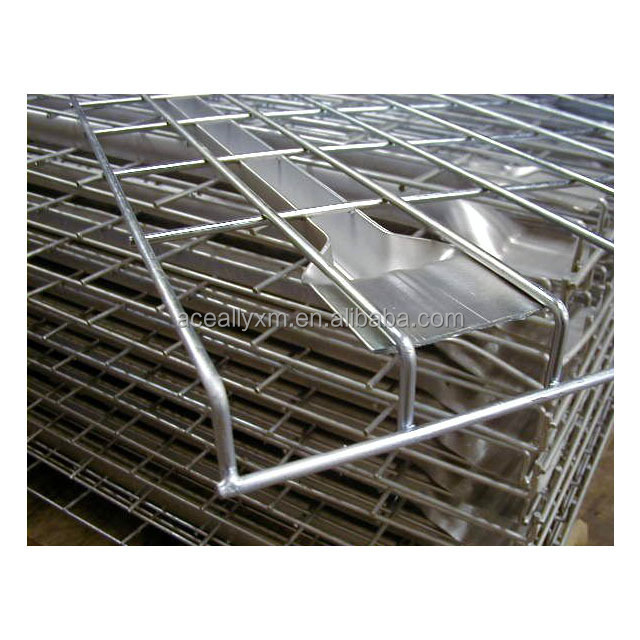

Wire mesh panels,wire mesh decking
Wire mesh decking is a main product in our product line. It is widely used in warehouse, as an accessory of rack. It is commonly used as a safety measure on selective pallet rack to prevent pallets or the products stored on them from falling through the rack structure. Wire mesh decking comes in various thicknesses and mesh dimensions. Most wire mesh extends across the top and down the front of the beam to provide more support, and is more desirable in the marketplace.
Aceally can provide the wire mesh decking in both galvanized and powder-coat finished.
Our equipments
Our wire mesh decking is widely exported to US, UK, France & Australia etc.
Wire mesh decking styles
Please see below stock size. Customized size is available.
| Stock size popular in US market | ||||||
| Model | Size (D*L) | Weight (lbs) | Mesh(Inch) | Gauge/mm | Channels (pcs) | Capacity (lbs) |
| Flared or step style | 24”*46” | 12.4 | 2.5”*4.5” | 4/5.3 | 3 | 3000 |
| 30”*46” | 15.6 | 2.5”*4.5” | 4/5.3 | 3 | 3000 | |
| 36”*46” | 18.4 | 2.5”*4.5” | 4/5.3 | 3 | 2700 | |
| 36”*52” | 19.6 | 2.5”*4.5” | 4/5.3 | 3 | 2500 | |
| 36”*58” | 21.8 | 2.5”*4.5” | 4/5.3 | 3 | 2750 | |
| 42”*46” | 21.5 | 2.5”*4.5” | 4/5.3 | 3 | 2800 | |
| 42”*52” | 23 | 2.5”*4.5” | 4/5.3 | 3 | 2500 | |
| 42”*58” | 27.5 | 2.5”*4.5” | 4/5.3 | 4 | 2800 | |
| 44”*46” | 23 | 2.5”*4.5” | 4/5.3 | 3 | 2500 | |
| 44”*52” | 27 | 2.5”*4.5” | 4/5.3 | 4 | 2600 | |
| 48”*46” | 25 | 2.5”*4.5” | 4/5.3 | 3 | 2500 | |
| 48”*52” | 31 | 2.5”*4.5” | 4/5.3 | 4 | 2500 | |
| 48”*58” | 33 | 2.5”*4.5” | 4/5.3 | 4 | 2500 | |
| 60”*46” | 38 | 2.5”*4.5” | 4/5.3 | 4 | 2500 | |
| Stock size popular in Australia market | ||||||
| Model | Length (mm) | Depth (mm) | Wire (mm) | Mesh (mm) | Supports (pcs) | Capacity (kgs) |
| Flared wire deck | 12,501,350 | 840,900,1070, | 4.0, 5.0, 5.3, 5.5 | 25*100 | 2,3,4 | 500, 1000 |
| 11,701,220 | 50*100 | 1500 | ||||
| Stock size popular in UK market | ||||||
| Model | Length (mm) | Depth (mm) | Wire (mm) | Mesh (mm) | Supports (pcs) | Capacity (kgs) |
| Flared wire deck | 1118, 1320 | 910, 1110 | 5 | 50*100 | 2,3,4 | 1000, 1500 |
| Stock size popular in France market | ||||||
| Model | Length (mm) | Depth (mm) | Wire (mm) | Mesh(mm) | Supports(pcs) | Capacity (kgs) |
| Flared wire deck | 1000, 1050 1100 | 880 | 5 | 50*100 | 3,4 | 1000 |
| Step wire deck | ||||||
Wire mesh panels processing flow and packaging
The working flow of storage racks for your reference
Remarks: Our storage racking are with advanced equipment, especially
1. Shot Blasting Machine: it's one of the most advanced technology for surface cleaning, using high-speed particles to clean metal surface. Compared with traditional acid pickling , it’s better at cleaning and more efficient .
2. AkzoNobel Powder Coating: it’s one of the best powder , colorful and highly decorative
3. GEMA airbrush: By controlling the coating thickness uniformity, it can eliminate blind angle , achieve high-grade coating effect and improve production efficiency.
Wire mesh panels Pre-sale service
We offer no obligation professional consultation and design. Allow our experienced staff to assist you in designing a storage system that best suits your particular needs.
We also offer:
• Professional CAD Drawings
• Stamped Engineered Drawings
Custom sizes and colors are also available.
Custom designed and built to meet your specific needs and requirements.
After Sale Service
1.Professional engineer and application specialists respond to your requests efficiently;
2.Online via SKYPE MSN; Also through mail, voice phone message and fax if network is not accessible for
customer;
3.Follow up the case, record the entire process, report complaint to QC department;
4.QC will find defect from which department ,who is in charge to identify responsibility
record customer respond,suggestion,requirement.
