- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
LA-10
-
Dimension:
-
290H 570W 420D
-
Storage:
-
Other
-
SNR:
-
other
-
Output Power:
-
350w
-
Format:
-
passive
-
System Model:
-
10'' 2-way line array speaker system
-
Components:
-
LF 10inch x 1 ; HF 44mm voice coil in neo x 2
-
Frequency Response:
-
150HZ-19KHZ(+_3DB) 1 watt@1m
-
Sensitivity:
-
99db/w( lm)
-
Maximum SPL:
-
115db Max
-
Nominal Impedance:
-
8Ω
-
Power Handling:
-
400W Nominal
-
Recommended power:
-
800w Continuous
-
Max Power:
-
1000W
-
Frequency Range (Hz):
-
150HZ-19KHZ(+_3DB)
-
Certification:
-
3C ISO FCC
Quick Details
-
Warranty:
-
other 2 Years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PRINCE
-
Model Number:
-
LA-10
-
Dimension:
-
290H 570W 420D
-
Storage:
-
Other
-
SNR:
-
other
-
Output Power:
-
350w
-
Format:
-
passive
-
System Model:
-
10'' 2-way line array speaker system
-
Components:
-
LF 10inch x 1 ; HF 44mm voice coil in neo x 2
-
Frequency Response:
-
150HZ-19KHZ(+_3DB) 1 watt@1m
-
Sensitivity:
-
99db/w( lm)
-
Maximum SPL:
-
115db Max
-
Nominal Impedance:
-
8Ω
-
Power Handling:
-
400W Nominal
-
Recommended power:
-
800w Continuous
-
Max Power:
-
1000W
-
Frequency Range (Hz):
-
150HZ-19KHZ(+_3DB)
-
Certification:
-
3C ISO FCC
General Information

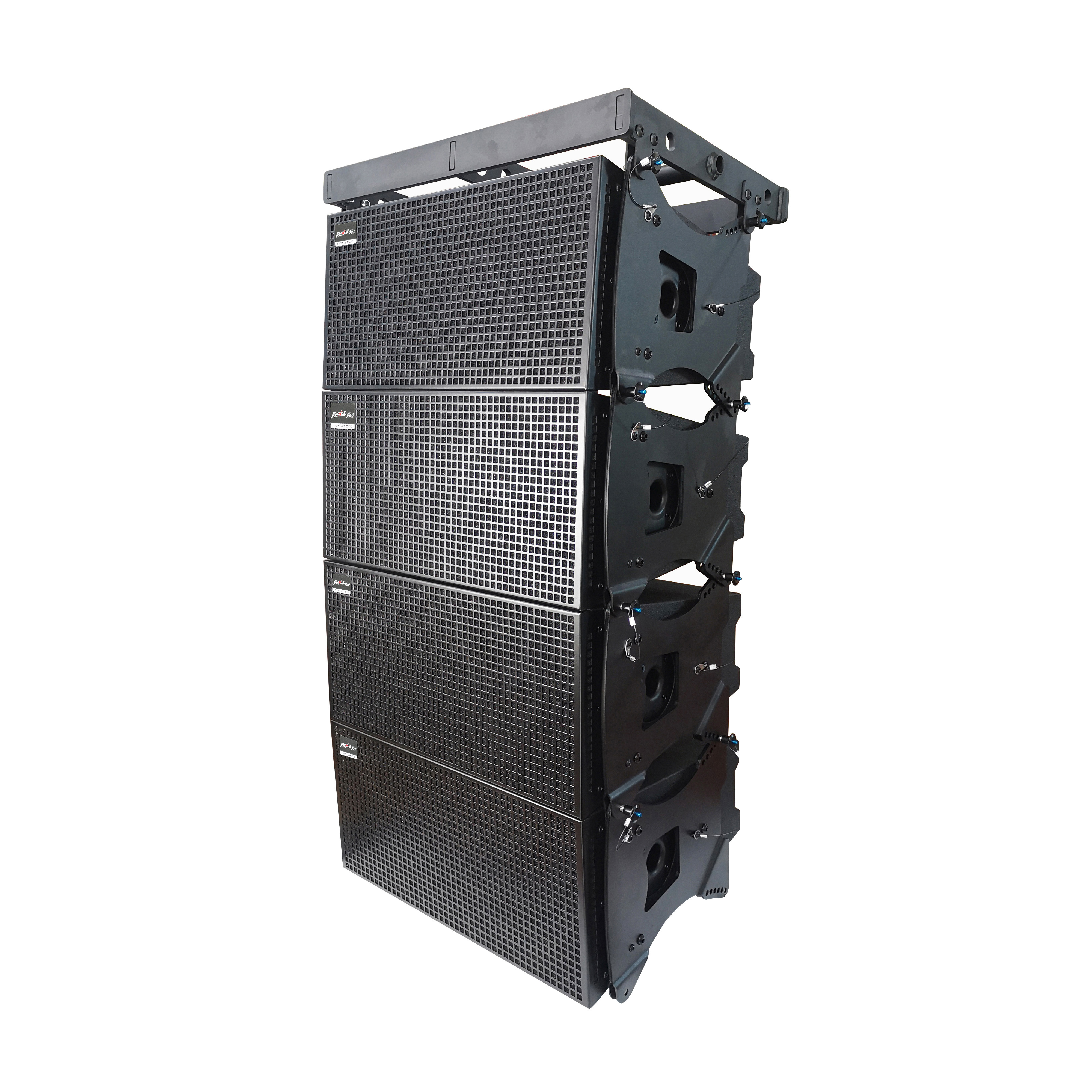

1:LA-10 is a 2-way passive crossover line array speaker, is designed to meet the high requirements of touring performance, rental and fixed installation. it can be used as main sound reinforement for stage with 4pcs at least. it can bring the performance in maximum extent. it has a large dynamic capacity, because of phase correction design and professional line horn, it can fully bring out the required frequency signal in required scope.
2:It adopoted the latest ergonomics engineering design in its installation system, which make the installation easily and safely.
3:Drivers system: 2 x 10 inch woofer with 65mm voice coil / 156 magnetic efficiency, 2 x 44mm voice coil titanium tweeter, the cabinet box body adopt multi-layer plywood with durable painting finishing.
4:Application: Stadiums, small and mid-size performance area, theatre,music hall , performing arts center, conference center
Specification
|
Frequency response |
150HZ-19KHZ(+_3DB) 1 watt@1m |
| Sensitivity | 99dB /W(lm) |
| SPL Max | 115dB MAX |
| Impedance | 8Ω |
| Power handling | 40W Nominal |
| Recommended power | 700W Continuous |
| Peak power | 100W Peak |
| Dispersion-6dB | 90°(H)x 10°(V) |
| Crossover point | 12dB/Octave 2500Hz |
Physical Parameter
|
System Model |
10' 2-way line array speaker system |
| HF driver | 44mm voice coil in neodymium ×1 |
| LF driver | 10 inch woofer×1 |
| Fixing up hardware | Prossional line array system |
| Cabinet quality | Durable plywood |
| Painting | Nice and quality painting |
| Color | Black |
| Dimension | 290H×570W×420D (mm) |
| Net weight | 15kg/pcs |
1. We can design and supply the whole sound system as per your project need;
2. We have professional engineers for helping the system adjustment and installation;
3. We warrants our audio device to be free to defects in workmanship for a period of ninety (90) days from date of purchase
1.Can we place our logo or company information on your product or package?
Of course. We accept OEM / ODM orders. Your logo can be printed, imprinted, etc. on the product. Please let us know your request.
2. Can I have a sample order for it?
Yes, we welcome sample order, 1pc for sample testing is available. Mixed samples are acceptable
3.What about the lead time?
Sample needs 2-5 days, bulk production needs 2-4 weeks depends on Quantity.
4.What is the minimum order? How to pay?
we can accept at least a set MOQ samples, shipping costs also need to pay by customers. Payment methods accept cash, T / T and Western Union.
5.Do you offer guarantee for the products?
Yes, we offer 1 years warranty to our products.
6.How to deal with the faulty?
Firstly, our products are produced in strict quality control system, we have the IQC and OQC , all the goods are 100% inspected before packing.Secondly, during the guarantee period, we will send replacement with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
7.Are you a professional audio manufacturer or a trading company?
We are the 100% manufacturer in Guangzhou, southern China. We specialize in the R&D, manufacturing, sales, system integration and technical support of the live audio industry.
8.How do you ship the goods and how long does it take to arrive?
We usually ship by Sea. It usually takes 30-45 days to arrive. Airline also optional.
9.How to proceed an order for loudspeaker?
Firstly let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Finally we arrange the production.
