Quick Details
-
Production Speed(Cycles/min):
-
8-32
-
Air Pressure(MPa):
-
0.7 MPa
-
Heating Power (kW):
-
10 kW
-
Air Comsumption(L/min):
-
35 L/min
-
Water Comsumption(L/min):
-
50 L/min
-
Product Type:
-
Plastic lid
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SAYEAH
-
Voltage:
-
380V/50HZ, 380V/50HZ
-
Dimension(L*W*H):
-
3500*1000*1700mm
-
Weight (T):
-
1.2 T
-
Power(KW):
-
10kw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Condtion:
-
New
-
Power(W):
-
10KW
-
Max.Forming Depth:
-
52MM
-
Weight:
-
1200kg
-
1200kg:
-
10kw
-
After Warranty Service:
-
Online support
Quick Details
-
Max.Forming Height(mm):
-
52 mm
-
Forming Width (mm):
-
300 mm
-
Forming Length (mm):
-
420 mm
-
Production Speed(Cycles/min):
-
8-32
-
Air Pressure(MPa):
-
0.7 MPa
-
Heating Power (kW):
-
10 kW
-
Air Comsumption(L/min):
-
35 L/min
-
Water Comsumption(L/min):
-
50 L/min
-
Product Type:
-
Plastic lid
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SAYEAH
-
Voltage:
-
380V/50HZ, 380V/50HZ
-
Dimension(L*W*H):
-
3500*1000*1700mm
-
Weight (T):
-
1.2 T
-
Power(KW):
-
10kw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Condtion:
-
New
-
Power(W):
-
10KW
-
Max.Forming Depth:
-
52MM
-
Weight:
-
1200kg
-
1200kg:
-
10kw
-
After Warranty Service:
-
Online support
Products Description
|
Product specification
|

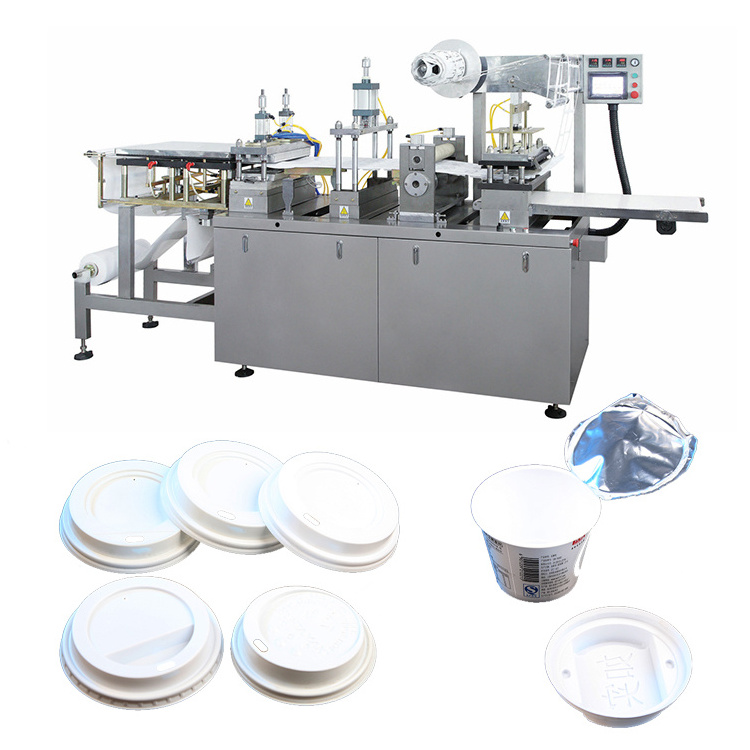

This type is designed for making different kinds of lids for plastic/ paper cards,mini spoons,trays for medicine,etc
|
|
Model
|
FJL-420S
|
|
Used Material
|
HIPS,PS,PVC,PET, and ETC
|
|
Cutting Frequency
|
8-32times/min
|
|
Travel Range
|
50-160mm
|
|
Max.Forming Depth
|
52mm
|
|
Max.Forming Area
|
420X300mm
|
|
Mould Cooling
|
Tap Water of Circulating Water 60L/S
|
|
Total Power
|
10kw
|
|
Air Consumptions
|
>0.5M/Min
|
|
Air pressure
|
0.5-0.7Mpa
|
|
Overall Dimensions
|
3500 x 1000 x 1700mm
|
|
Weight(kg)
|
1200kg
|
