Quick Details
-
Brand Name:
-
Fonkan
-
Model:
-
FM-505
-
RF Power Output:
-
-2~25dBm
-
Interface:
-
TTL(UART)
-
Gain antenna:
-
3dbi antenna
-
Module size:
-
50*50mm
-
Read distance:
-
2.5M(depends on tags )
-
Read speed:
-
>50pcs tags/sec
-
Tags storage:
-
200pcs tags @ 96 bit EPC
Quick Details
-
Frequency:
-
865-868Mhz(EU),902-928Mhz(US), 865-868MHZ(EU),902-928MHZ(US)
-
Protocol:
-
ISO 18000-6C
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fonkan
-
Model:
-
FM-505
-
RF Power Output:
-
-2~25dBm
-
Interface:
-
TTL(UART)
-
Gain antenna:
-
3dbi antenna
-
Module size:
-
50*50mm
-
Read distance:
-
2.5M(depends on tags )
-
Read speed:
-
>50pcs tags/sec
-
Tags storage:
-
200pcs tags @ 96 bit EPC
|

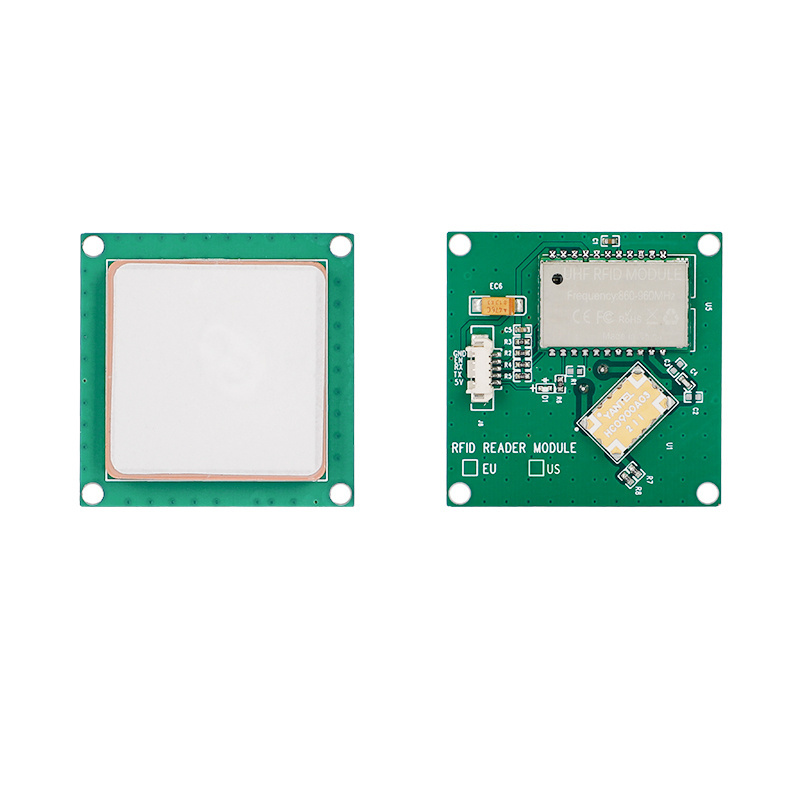

Model
|
FM-505
|
|
Protocol
|
ISO18000-6C / EPC C1 GEN2
|
|
Frequency
|
865-868MHZ(EU),902-928MHZ(US)
|
|
RF Power Output
|
-2~25dBm
|
|
Interface
|
TTL(UART)
|
|
Gain antenna
|
3dbi antenna
|
|
Module size
|
50*50mm
|
|
Read distance
|
2.5M(depends on tags )
|
|
Read speed
|
>50pcs tags/sec
|
|
Tags storage
|
200pcs tags @ 96 bit EPC
|
|
Power supply
|
3.3V-5V
|
|
Standby current
|
<80mA(EN pin high level)
|
|
Sleeping current
|
<100uA(EN pin low level)
|
|
Operation current
|
180mA @3.5V(25dBm output, 25℃)
|
|
|
110mA @ 3.5V (-2 dBm Output,25°C).
|
|
Receive sensitivity
|
<70dbm
|
|
Heat-dissipating method
|
Air cooling(no need for out install cooling fin)
|
1.UHF RFID module*1pcs
2.Test card *1pcs
3.5 PIN Cable *1pcs
4.SDK and DEMO(After bought,we will send it to your E-mail)
