Quick Details
-
Supplier Type:
-
manufacture
-
KEY WORD:
-
LCD TV Control Board
-
Resolution:
-
Max 1920x1080@60Hz
-
Backlight Type:
-
LED LCD TV
-
Use:
-
Portable TV
-
Standby power consumption::
-
<1W
-
Advantage::
-
accept mix order
-
Product Name:
-

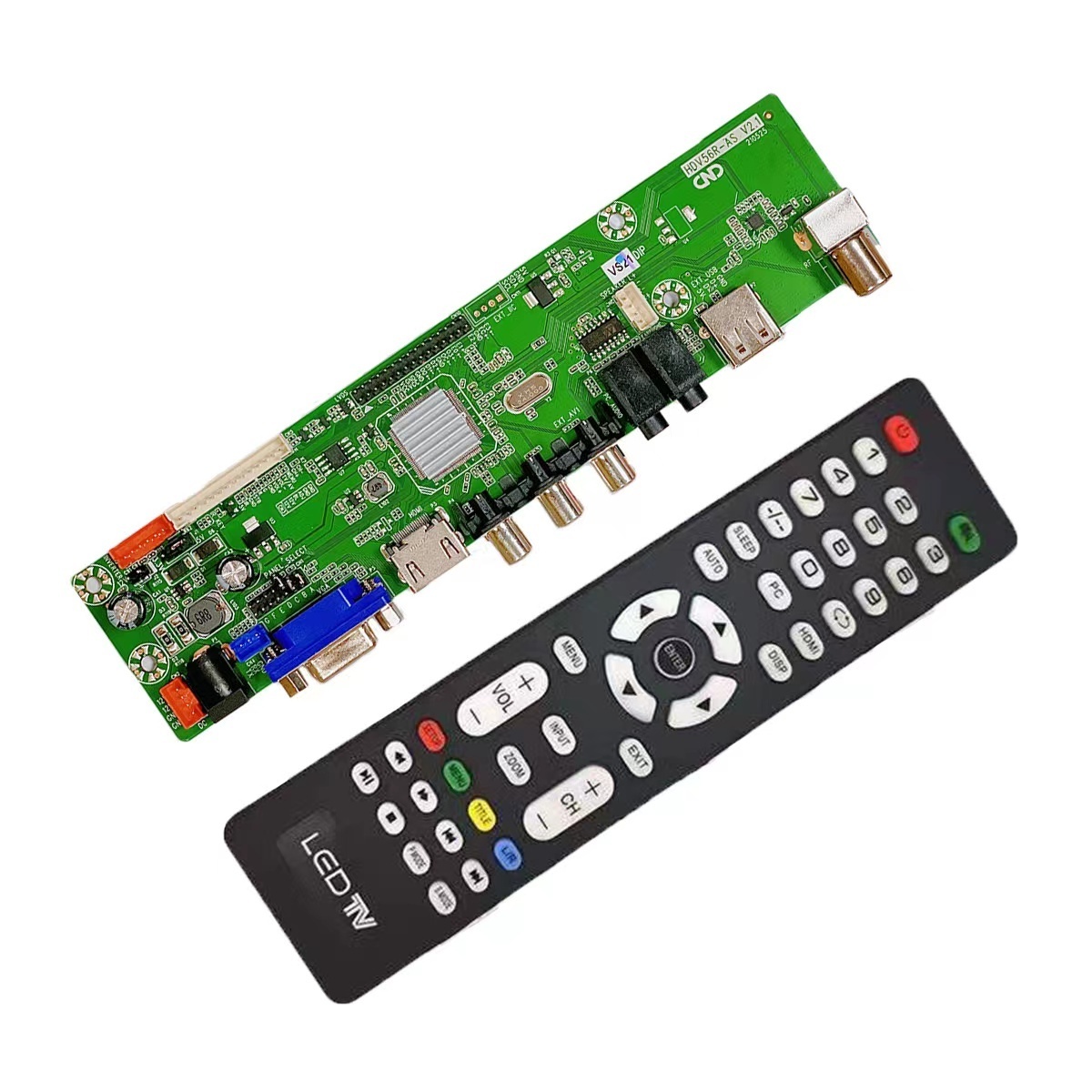

Universal 32 inch pcb board for led tv
-
Warranty:
-
360 days
-
Certificate:
-
RoHS, ISO9001
-
Operating voltage:
-
3.3V 5V 12V
Quick Details
-
Model Number:
-
HDV56R-as
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CND
-
Supplier Type:
-
manufacture
-
KEY WORD:
-
LCD TV Control Board
-
Resolution:
-
Max 1920x1080@60Hz
-
Backlight Type:
-
LED LCD TV
-
Use:
-
Portable TV
-
Standby power consumption::
-
<1W
-
Advantage::
-
accept mix order
-
Product Name:
-
Universal 32 inch pcb board for led tv
-
Warranty:
-
360 days
-
Certificate:
-
RoHS, ISO9001
-
Operating voltage:
-
3.3V 5V 12V
product name: Universal 32 inch pcb board for led tv support Full HD 1920*1080
Special Features:
1,this board main for worldwide analog TV system,such as SAMSUNG,AUO, LG,SHARP,BOE etc
2,support PAL+SECAM/NTSC system, optional full standard system
3, the product is suitable in the 1920 * 1200
4, Dynamically adjust picture's color, contrast ratio, definition
5, this motherboard software support online updates
6, Reliable, High stability, Low noise, low power consumption.
7, It can reappear real world image color and sound
8,HDMI/VGI/USB/AV Input
9. Panel interface:Single/Dual Channel LVDS
10. Support IR Control
products details
| IC | TSUMV59XU | ||
| Market Area | China | ||
| OSD Language | English, French, German, Italian , Spanish , Portuguese | ||
| Match Screen | Interface | Single Dual LVDS | |
| Resolution | Max 1920x1080@60Hz | ||
| Video Input |
TV
|
Received frequency | 49MHz – 863MHz |
| Input impedance | 75 | ||
| Color system | PAL, SECAM/NTSC | ||
| Sound system | BG, DK, I, L/M,N | ||
| USB | USB document support format | ||
| Video | Color system | PAL/SECAM/NTSC | |
| Video range | 1.0 Vp-p ±5% | ||
| Audio input | PC | Earphone input | 0.2 – 1.5 Vrms |
| Video | L/R RCA Input | 0.2 – 1.5 Vrms | |
| Component | L/R RCA Input | 0.2 – 1.5 Vrms | |
| Audio output | Frequency | 100Hz - 15000Hz @±3dB (1KHz 0dB benchmark signal) | |
| Loudspeaker output | 2x10W(8) ( optional 3W ) THD+N<10% | ||
| Key interface | Menu,CH+,CH-,VOL+,VOL-,source, stand b | ||
| Power | Input requirement | 12V, 5V, 5VSB/single+12v optional | |
| Screen power supply | 3.3V , 5V, 12V | ||
| Power management | Low power consumption mode, stand by <1W ( depending on the power supply ) | ||
CND Electronic Technology(shenzhen) Co.,LTD is a factory established in year 2006,which providing electronic contract manufacture service,certificated by ISO 9001:2015. Including:
1. PCB assembly OEM service
· Electronic components material purchasing
· Bare PCB fabrication
· PCB Assembly Service. (SMT, BGA, DIP)
· FULL Test: AOI, In-Circuit Test (ICT), Functioal Test (FCT)
· Cable, and Wire-harness assembly
· Conformal coating service
· Prototyping and mass production...
2. PCBA ODM service
· PCB layout, PCBA design according to your idea
· PCBA copy/clone
· Digital Circuit Design / Analog Circuit Design/ lRF Design /Embedded Software Design
· Firmware and Microcode Programming Windows Application (GUI) Programming/ Windows Device Driver (WDM) Programming
· Embedded User Interface Design / lSystem Hardware Design...
Q
: We are using several panel. how to match and change the software?
A
: Our software supports
MULTI-RESOLUTION
choice by changing jumper cat. no need change software for different panel.
Q:
What's delivery time? what's the shipping way?
A:
General sample order is in stock within 3 days; General order is about 15 days after get deposit; Flexible delivery time can be negotiable.
Q: Are you a factory or a trading company?
A: we are a factory launched since 2006, specialized in TV Monitor products for more than 12 years.
Q: How about your quality? If any defective, is there any compensation or what can you do for me?
A: We have one year warranty, if any defective, please take multi angle photos of the defective as an evidence, then send the whole machine including defective parts or unforced broken parts back to us, we will repair it FREE Another way, the defective will be compensated in the order after the defective sent back.
Q: Is it possible do the models with our brand and all artwork in our language?
A: Yes, both are ok. The products can be in your brand and all artwork in your language.
Q: Can you do OEM and ODM orders?
A: Yes, OEM and ODM orders are acceptable.
