- Product Details
- {{item.text}}
Quick Details
-
Color:
-
BLACK
-
Place of Origin:
-
shenzhen
-
Model Number:
-
TB40
-
Power Input::
-
AC100-240V 50/60Hz
-
Output Interface::
-
2 Ethernet ports
Quick Details
-
Application:
-
Indoor, Outdoor
-
Type:
-
Video Controller
-
Brand Name:
-
novastar
-
Color:
-
BLACK
-
Place of Origin:
-
shenzhen
-
Model Number:
-
TB40
-
Power Input::
-
AC100-240V 50/60Hz
-
Output Interface::
-
2 Ethernet ports
Hello, boss! Welcome to our shop. What can I do for you?
Shenzhen Ledstore technology Co.Ltd
Product Description

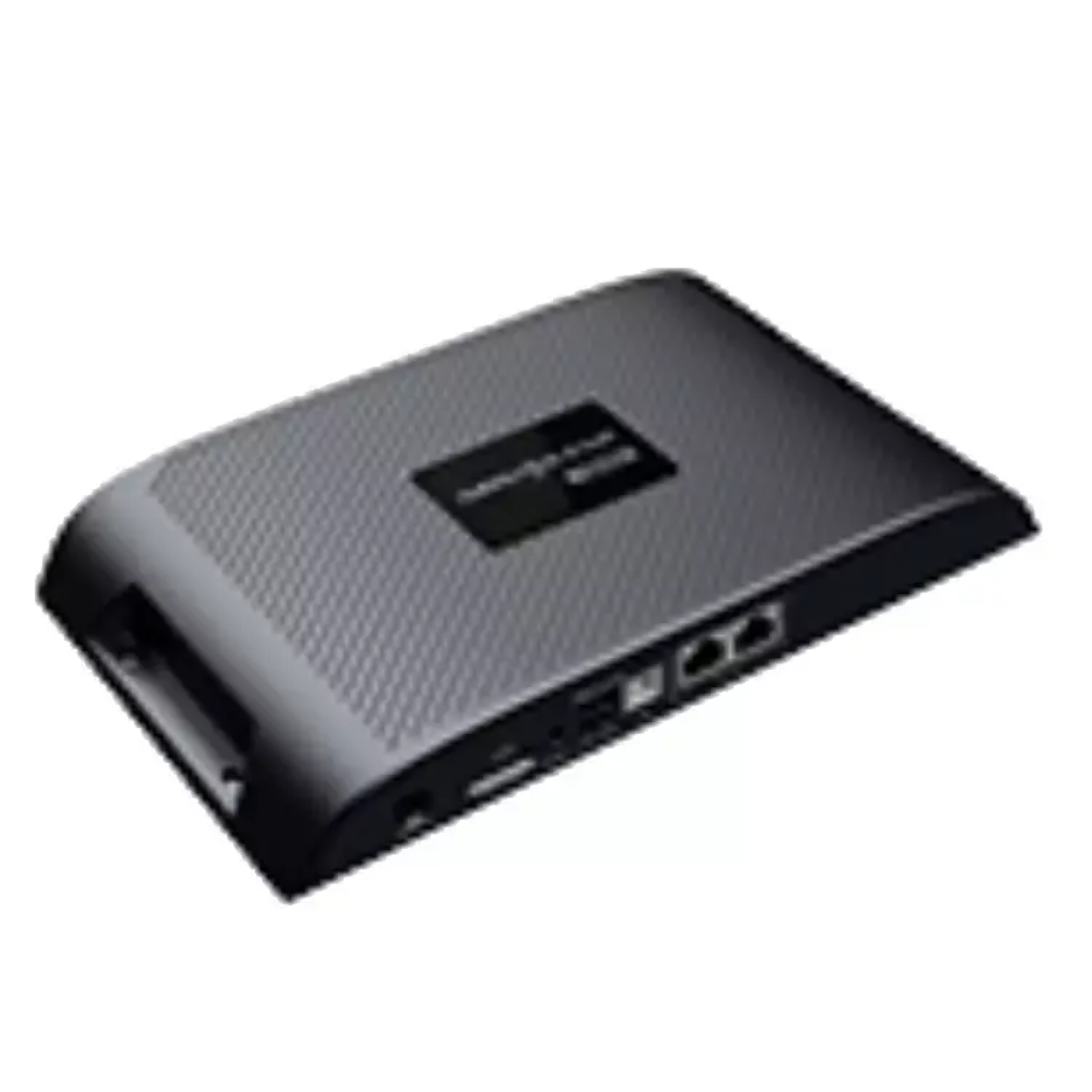

TB40
supports multi-screen playback synchronization mechanism, synchronous asynchronous dual mode, to meet various playback requirements.With the characteristics of safety and stability, easy to use, intelligent control and so on,
TB40
can be widely used in LED commercial display and smart city field, such as fixed screen, light pole Screen, chain store screen, advertising machine, mirror screen, retail store screen, door screen, shelf screen, etc.
Parameter specification
|
Electrical Parameters
|
Input power
|
DC 12 V, 2 A
|
|
|
|
Maximum power consumption
|
18 W
|
|
|
Storage Capacity
|
RAM
|
1 GB
|
|
|
|
Internal storage
|
16 GB
|
|
|
Storage Environment
|
Temperature
|
–40°C to +80°C
|
|
|
|
Humidity
|
0% RH to 80% RH, non-condensing
|
|
|
Operating Environment
|
Temperature
|
–20ºC to +60ºC
|
|
|
|
Humidity
|
0% RH to 80% RH, non-condensing
|
|
|
Packing Information
|
Dimensions (L×W×H)
|
385.0 mm × 280.0 mm × 75.0 mm
|
|
|
|
List
|
1x TB40
1x Wi-Fi omnidirectional antenna 1x Power adapter
1x Quick Start Guide
|
|
|
Dimensions (L×W×H)
|
238.8 mm × 140.5 mm × 32.0 mm
|
|
|
|
|
430.0 g
|
|
|
|
IP Rating
|
IP20
Please prevent the product from water intrusion and do not wet or wash the product. |
|
|
|
System Software
|
Android 11.0 operating system software
Android terminal application software FPGA program Note: Third-party applications are not supported |
|
|
Key Features
●
Loading capacity up to 1,300,000 pixels
Maximum width: 4096 pixels
Maximum height: 4096 pixels
●
2x Gigabit Ethernet ports
These two ports serve as primary by default.Users can also set one as primary and the otheras backup
●
1x Stereo audio connector
The audio sample rate of the internal source isfixed at 48 kHz The audio sample rate of theexternal source supports 32
kHz, 44.1 kHz, or48 kHz. If NovaStar's multifunction card is usedfor audio output, audio with a sample rate of 48kHz is
required.
●
1x HDMI 1.4 connector
Maximum output: 1080p@60Hz, support forHDMI Ioop
In synchronous mode, video sources input fromthis connector can be scaled to fit the entirescreen automatically.
●
2x sensor connectors
Connect to brightness sensors or temperatureand humidity sensors.
Function
|
Name
|
Description
|
|
SWITCH
|
Switches between synchronous and asynchronous modes
* Staying on: Synchronous mode *Off: Asynchronous mode |
|
SIM CARD
|
SIM card slot
Capable of preventing users from inserting a SIM card in the wrong orientation |
|
RESET
|
Factory reset button
Press and hold this button for 5 seconds to reset the product to its factory settings. |
|
USB
|
Reserved USB (Type B) port
|
|
LED OUT
|
Gigabit Ethernet outputs
|
|
Name
|
Description
|
|
SENSOR
|
Sensor connectors Connect to light sensors or temperature and humidity sensors.
|
|
HDMI
|
HDMI 1.4 connectorsOUT: Output connector, support for HDMI loop
IN: Input connector, HDMI video input in synchronous mode In synchronous mode, users can enable full-screen scaling to adjust the image to fit the screen automatically. Requirements for full-screen scaling in synchronous mode: 64 pixels ≤ video source width ≤ 2048 pixels Images can only be scaled down and cannot be scaled up. |
|
WiFi
|
Wi-Fi antenna connectorSupport for switching between Wi-Fi AP and Wi-Fi STA
|
|
ETHERNET
|
Gigabit Ethernet portCapable of connecting to a LAN, public network, or computer for content publishing and screen control
|
|
COM2
|
4G antenna connector
|
|
USB 3.0
|
USB 3.0 (Type A) port Allowing for playback of content imported from a USB drive and firmware upgrade over USB
The Ext4 and FAT32 file systems are supported. The exFAT and FAT16 file systems are not supported |
|
COM1
|
Gigabit Ethernet port Indicator status:
▸Yellow indicator always on: The unit is connected to 100M Ethernet cable and the status is normal. ▸Green and yellow indicators always on at the same time: The unit is connected to Gigabit Ethernet cable and the status is normal. |
|
AUDIO OUT
|
Audio output connector
|
|
12V—2A
|
Power input connector
|
Product size
TB40size
:
238.8mm*140.5mm*32mm
