Quick Details
-
Color:
-
FULL COLOR
-
Panel Size:
-
500*1000mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
SZXGC-P3.91
-
Brightness:
-
4500CD, ≥4500 cd/sqm
-
pixel density:
-
128*256dots
-
Contrast Ratio:
-
1000:1
-
Color Depth:
-
256
-
Lifespan (hours):
-
100000
-
IP Rating:
-
65
-
HS Code:
-
8528591090
-
Resolution:
-
128*256dots
-
View Angle（H/V）:
-
140/140
-
Usage:
-
INDOOR
-
Tube Chip Color:
-
FULL COLOR
-
Warranty:
-
2Years
-
Pixel pitch:
-
3.91mm
-
Module size:
-
250*250mm
-
Viewing angle:
-
160/160
-
Refresh rate:
-
3840Hz
-
Cabinet size:
-
500*1000mm
Quick Details
-
Application:
-
Indoor, Outdoor
-
Type:
-
LED
-
Brand Name:
-
XGC
-
Color:
-
FULL COLOR
-
Panel Size:
-
500*1000mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
SZXGC-P3.91
-
Brightness:
-
4500CD, ≥4500 cd/sqm
-
pixel density:
-
128*256dots
-
Contrast Ratio:
-
1000:1
-
Color Depth:
-
256
-
Lifespan (hours):
-
100000
-
IP Rating:
-
65
-
HS Code:
-
8528591090
-
Resolution:
-
128*256dots
-
View Angle（H/V）:
-
140/140
-
Usage:
-
INDOOR
-
Tube Chip Color:
-
FULL COLOR
-
Warranty:
-
2Years
-
Pixel pitch:
-
3.91mm
-
Module size:
-
250*250mm
-
Viewing angle:
-
160/160
-
Refresh rate:
-
3840Hz
-
Cabinet size:
-
500*1000mm
Product Description
P3.91 Pro Envisual Outdoor
Led Tile:
500mmx1000mm/19.7inx39.4in
Led Module:
250mmx250mm/9.8inx9.8in
Refresh Rate:
3840Hz
Brightness:
5000 Nits Against Sunlight Available
Installation:
Suspending&Stacking
IP Protection:
IP 65
Full Weather Resistance
Application:Indoor Application:
Outdoor
Application:
Semi-outdoor
Supplier Type:Original manufacturer
Media Available:
datasheet
Media Available:
Photo Media Available
:
EDA/CAD Models Function:SDK
Pixels:
3.91mm
Color:
black and green
Panel Size:
500mmx1000mm
Pixel Pitch:
3.91mm
use:advertising publish use:
Event Back Drop
use:
Audio Visual
use:
Concert
use:
Entertainment
Specification:
500mmx1000mm/19.7inx39.4in

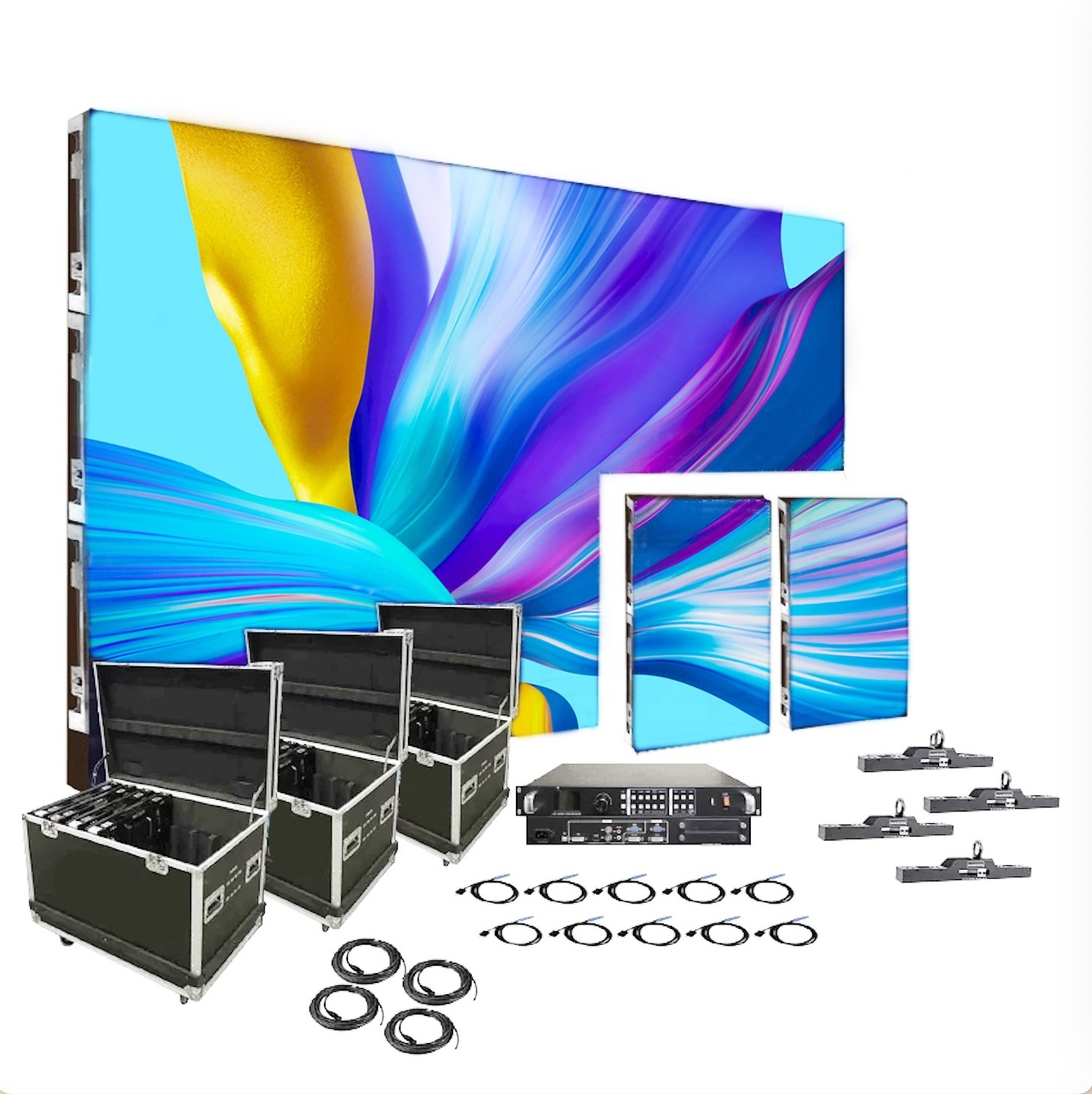

One-stop production
Plug and Play Package
Video Processor
Video Controller
Hanging Bars
Cables
Flight Case
Spare Parts
Screen Details Parameter as Below
|
Module
|
|
|
|
||
|
Dimension
|
250*250mm
|
Resolution
|
64*64 dots
|
||
|
Pixel Pitch
|
3.91mm
|
Pixel Density
|
65536
|
||
|
LED Lamp
|
2121SMD
|
Pixel configuration
|
3 in 1
|
||
|
Standard Panel
|
|
|
|
||
|
Dimensions(w x h x d)(mm)
|
500*1000
|
Module Quantity
|
8
|
||
|
Physical Resolution (w x h)
|
128*256
|
Physical Pixels (total)
|
32768
|
||
|
Weight/Panel (kgs)
|
13.5
|
Material
|
Die casting aluminum
|
||
|
Average Power/sqm (watts)
|
380
|
Max Power/sqm(watts)
|
800
|
||
|
Parameter
|
|
|
|
||
|
Screen Size （Could be Customized）
|
9.8ft (W) * 6.5ft (H) or 3m (W) * 2m (H)
|
|
|
||
|
Panel Quantity （PCS）
|
6pcs tall and 2pcs high (Also could be customized)
|
|
|
||
|
Maintenance
|
Rear
|
|
|
||
|
Brightness
|
800cd
|
|
|
||
|
View Angle
|
Horizontal 160 deg. Vertical 140deg.
|
|
|
||
|
Minimum Viewing Distance
|
3.91 meter
|
|
|
||
|
Brightness Control
|
256 level
|
|
|
||
|
Gray scale
|
13 bit
|
|
|
||
|
Refresh frequency
|
≥1920Hertz
|
|
|
||
|
Driving mode
|
1/16S
|
|
|
||
|
Input power frequency
|
50 or 60 Hertz
|
|
|
||
|
Input Voltage
|
200～240 Volt or 100-120Volt
|
|
|
||
|
Blind spot rate
|
＜1/10000
|
|
|
||
|
Lifetime at 50% brightness
|
100000 hours
|
|
|
||
|
Ingress Protection
|
Ip40
|
|
|
||
|
Operating temperature
|
﹣20 ～﹢50 ℃
|
|
|
||
|
Operating humidity
|
10％ ～ 90％
|
|
|
||
|
Control distance
|
CAT5 cable:＜100 m; Single mode fiber:＜10 km
|
|
|
||
|
Signal input format(with video processor)
|
AV, S-Video, VGA, DVI,DP, HDMI, SDI
|
|
|
||
|
Operating system
|
Windows (2000/XP/Vista)
|
|
|
||
