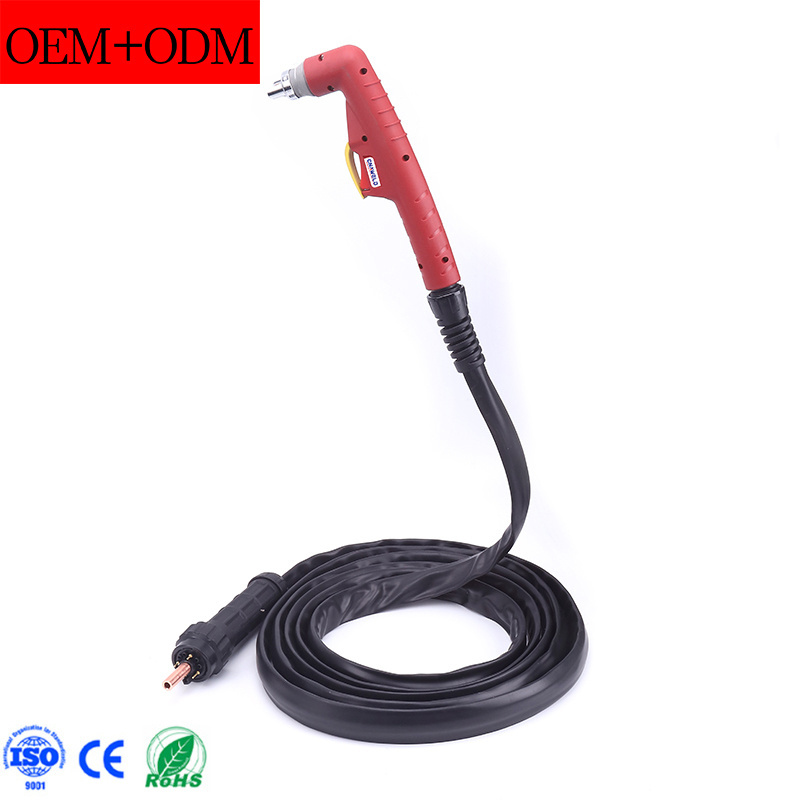

PT-60 PT60 Plasma Cutting Cutter Torch 6M 60Amp without High frequency

PT-60 PT60 Plasma Cutting Cutter Torch 6M 60Amp without High frequency

FOB Reference Price: Get Latest Price

≥2 Pieces

US $80

≥500 Pieces

US $79

≥1000 Pieces

US $78

≥2000 Pieces

US $77

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: CNAWELD

Model Number:: PT60

Cutting Capacity:: Excellent

Current:: 60Amp

Duty Cycle:: 60%

Gas Pressure:: 4.5-5.0 Bar

Gas Flow:: 110LPM

Post Flow:: 50ecs.recommended

Length:: 6m / 12m / Customization

MOQ:: 1 PC

Packing:: Colour Box

Certificate:: ISO9001/CE

Quick Details

Type:: CUTTING TORCH

Warranty:: 1 year

Place of Origin:: Jiangsu, China

Brand Name:: CNAWELD

Model Number:: PT60

Cutting Capacity:: Excellent

Current:: 60Amp

Duty Cycle:: 60%

Gas Pressure:: 4.5-5.0 Bar

Gas Flow:: 110LPM

Post Flow:: 50ecs.recommended

Length:: 6m / 12m / Customization

MOQ:: 1 PC

Packing:: Colour Box

Certificate:: ISO9001/CE

More advantage

Good reliable product

Copper Material

To Connect and Stability

Word of M outh Good

Welding forming

Easy to use

Low failure rate

The welding torch diagram

Good reliable product

Accessories image resolution

Wear-resisting durable quality better

Good Cable Export Quality

Each plasma torch cable meets export standards, conductivity.

Pure Copper Material Connector

The connector is made of brass, which is not hot and has high.

Enough Square Meters Long enough cablesEnsure that every plasma torch is a good torch with a few met

Product Information

_1.Nozzle

_2.Switch

_3. Handle

_4. Power cable

_5.Connector

Accessories

DOUBLE POINTED SPACER

Weight:7.9g

OUTSIDE NOZZIE

Weight:26.2g

DIFFUSER

Weight:0.4g

TIP

Weight:5.8g

Electrode Weight:5.2g

Product preview

The product will more real

PT-60 PT60 Plasma Cutting Cutter Torch 6M 60Amp without High frequency
Part No.	Description
60432	Double pointed spacer
51318.06	Tip 0.6
51318.08	Tip 0.8
51318.09	Tip 0.9
60028	Diffuser
52582	Electrode
60389	Outside Nozzle

We mainly produce:
1) MIG/MAG/CO2: Binzel 15AK/24KD/25AK/26KD/36KD/40KD/401D/501D, Pana 200A/350A/500A, OTC 200A/350A/500A, Bernard 300A/400A, CN-Tweco 2#/3#/4#/5#, CN-Fronius AW4000 /AW5000 / MTW500i/ AL2300/ AL3000/ AL4000, Robot automatic welding. Welding torches Tbi82W,Robacta5000, Nozzle, Contact Tip, Tip Holder, Swan Neck, Diffuser, Liner, etc.

2) TIG: WP9, WP17, WP26, WP18, WP12, WP20, WP-24,WP27, SR-208/308, etc. Welding torch,torch head (F/V/FV/P), collet, collet body, gas lens, ceramic nozzle, long/medium/short cap, etc.
3) Air plasma cutting: P80, P160, PT31, SG51, SG55, JG60, JG100,CB50-CB150, A81, A101, A141, S45, S75, PT60, PT80, PT100 etc,compatiable parts for trafimet, HPR,kjellberg, OTC, TD, etc. Plasma cutting torch, torch head, nozzle, electrode, shield cap,ceramic nozzle, swirl ring, etc.
4)Stud welding torch, etc.
5) Cable joint, earth clamp, electrode holder,quick plug,scoket,water quick connector, etc.
