Quick Details
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
2200*600*920mm
-
Weight:
-
500 kg
-
Marketing Type:
-
New Product 2022
-
Application:
-
Poultry Farm
-
Product name:
-
Chaff cutter
-
Usage:
-
Animal Feedstuff Making
-
Raw material:
-
Steel
-
Capacity:
-
3000-6500kg/h
-
Final product:
-
Straw Crushing
-
Advantage:
-
Easy Operation High Efficiency
-
Color:
-
Customized Color
-
Motor:
-
Copper Core Motor
-
Package:
-
Special Tailored Wooden Case
Quick Details
-
Max. Capacity:
-
3000-6500 kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Junzheng
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
2200*600*920mm
-
Weight:
-
500 kg
-
Marketing Type:
-
New Product 2022
-
Application:
-
Poultry Farm
-
Product name:
-
Chaff cutter
-
Usage:
-
Animal Feedstuff Making
-
Raw material:
-
Steel
-
Capacity:
-
3000-6500kg/h
-
Final product:
-
Straw Crushing
-
Advantage:
-
Easy Operation High Efficiency
-
Color:
-
Customized Color
-
Motor:
-
Copper Core Motor
-
Package:
-
Special Tailored Wooden Case
Products Description

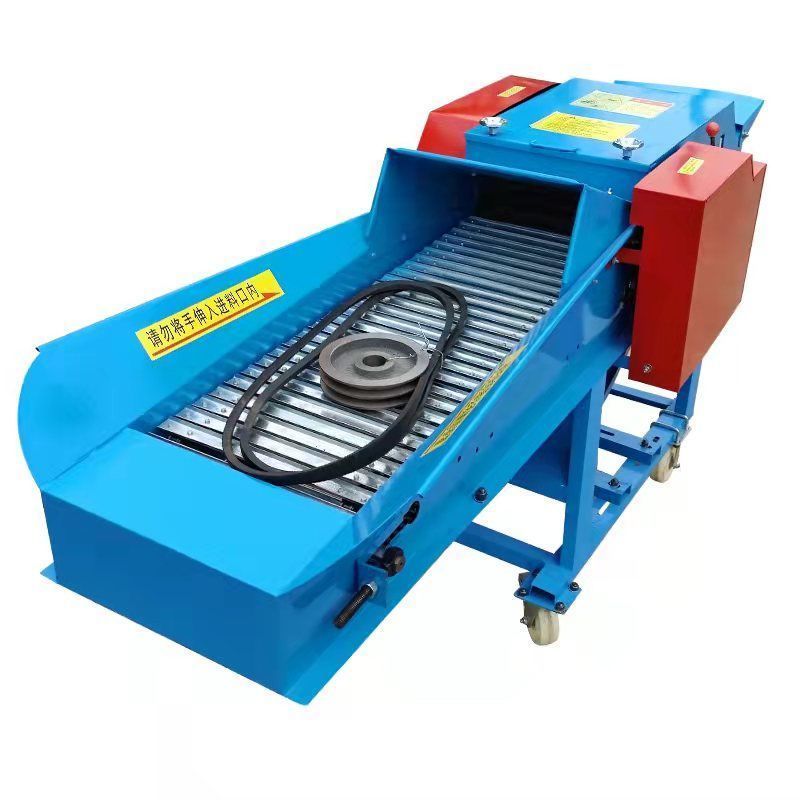

Forage silage chopper chaff cutter machine
Agriculture grass chopper machines hay cutter machine feed making, Used for chaff-cut green (dry) corn straw, straw and other crops straw and herbage agricultural livestock machinery. The processed materials are suitable for breeding cattle, sheep, deer, horses, etc., and can also be used for biomass power generation, paper making, ethanol extraction, etc.
Product Paramenters
|
Model
|
JZ-30
|
JZ-45
|
JZ-65
|
|
Product output
|
3000kg/h
|
4500kg/h
|
6500kg/h
|
|
Motor
|
Pure copper core motor
|
Pure copper core motor
|
Pure copper core motor
|
|
Voltage
|
220v/380v
|
220v/380v
|
220v/380v
|
|
Motor speed
|
2800 rpm
|
2800 rpm
|
2800 rpm
|
|
Product Power
|
4.8kw/4kw
|
4.8kw/4kw
|
4.8kw/4kw
|
|
Product Size
|
1.56*0.49*0.88m
|
1.56*0.49*0.88m
|
1.56*0.49*0.88m
|
|
Weight
|
85kg
|
110kg
|
170kg
|
Advantage:
1.It has the advantages of stable performance, simple operation, sturdiness and durability,
high efficiency, and flexibility.
2. Wet and dry, more convenient,Stable fuselage, low noise.
3.Fine workmanship and durable,Wide range of side cuts, more practical.
high efficiency, and flexibility.
2. Wet and dry, more convenient,Stable fuselage, low noise.
3.Fine workmanship and durable,Wide range of side cuts, more practical.
Details Images
Inside the chaff cutter
Four blade eight blade serrated small sharp knife, wind fire wheel serrated knife, cutting grass quickly, good helper for cattle and sheep breeding.
Wind Fire Wheel Silk Kneading Pointed Blade
Widened and enlarged, serrated thread rolling cutter is more durable, not easy to break, and convenient to disassemble.
Titanium alloy steel knife
Widening and lengthening hay cutting is faster, saving time and labor.
Fully automatic feeding chain conveyor
Widening and heightening the feeding port, and conveying with iron chain, safe, efficient and durable.
Product Usage
Working Principle
Drive by the motor, gasoline engine, diesel engine s power, first of all power equipment idling for about 2 minutes, check whether the internal has noise and after speed to reach the rated(to maintain the machines and the power), then feeding grass, power equipment running through the belt pulley drive shaft, then the drive shaft will be transferred power to roller and grass feeding device by gear at the other end and other components, transmission power to drive by into the studio by pressing grass roller, straw was chopped combined action with the fixed knife and the fast spinning moving blades, the cutting grass outside of the hay cutter through the outlet port.
