Quick Details
-
No. of Slitting Lines:
-
3 - 15
-
Coil Weight (T):
-
25 T
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HZ
-
Weight:
-
25
-
Product name:
-
Slitting Machine
-
After-sales Service Provided:
-
Overseas service center available
-
material cutting:
-
SS, HR, CR, GAL
-
coil width:
-
1800mm
-
coil weight:
-
15-30Ton
-
Drive:
-
AC
-
Thickness:
-
2.0--8.0mm
-
Name:
-
Sheet Metal Slitting Machine
-
Type:
-
Metal Sheet Coil Slitting Machine
-
Machine Type:
-
High Speed
Quick Details
-
Cutting Width (mm):
-
1 - 1800 mm
-
Material Thickness(mm):
-
2 - 8 mm
-
Cutting Speed(m/min):
-
10000 - 180000 mm
-
No. of Slitting Lines:
-
3 - 15
-
Coil Weight (T):
-
25 T
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HZ
-
Weight:
-
25
-
Product name:
-
Slitting Machine
-
After-sales Service Provided:
-
Overseas service center available
-
material cutting:
-
SS, HR, CR, GAL
-
coil width:
-
1800mm
-
coil weight:
-
15-30Ton
-
Drive:
-
AC
-
Thickness:
-
2.0--8.0mm
-
Name:
-
Sheet Metal Slitting Machine
-
Type:
-
Metal Sheet Coil Slitting Machine
-
Machine Type:
-
High Speed

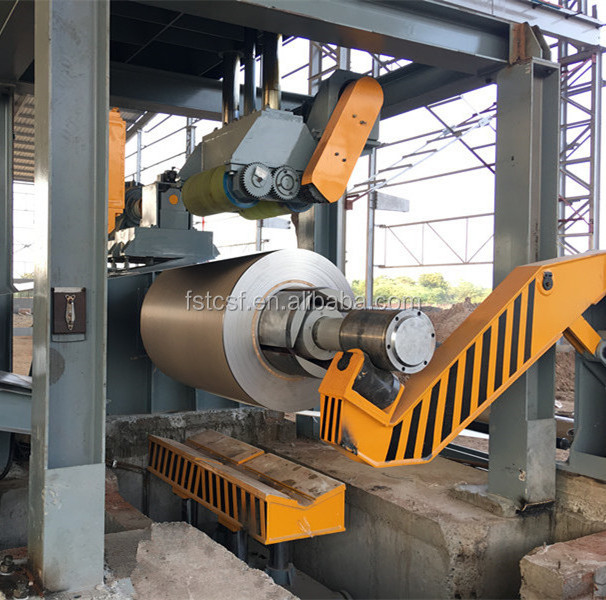

Metal coil slitting lines: Slitting lines are longitudinal cutting jumbo metal coils into more narrow coils. Usually slitting lines are consisted of four main parts: decoiler, slitter , tensioner and recoiler . Metal strip is fed from decoiler, through slitter for longitudinal cutting by two circular cutting blades, and then re-coiled in slitted mults on the recoiler through tensioner.
Our slitting lines can be designed and made based on stainless steel, carbon steel, silicon steel, GI, PPGI, brass, copper and aluminum; width range: 300~2000mm, thickness range: 0.2~16mm, weight range: 3~40tons
|
Stainless steel (All series) |
Carbon steel(HR or CR) |
|
Colored coil (PPGI) |
Galvanized coil(GI) |
|
Aluminum, Copper and Brass |
Silicon steel |
Flow Chart of Slitting Lines:
Loading coils→decoiling→ pinching, leveling, and shearing→ looping→ guiding → slitting → rewinding scraps → looping → tension → recoiling → unloading baby coils → packing
Packaging & Shipping
We use standard packing for all steel coil slitting lines.
a) Sea transportation, Land transportation, and so on.
b) Please choose your convenient shipping method according your detail requirement.
c) The shipping freight is different based on different season; we will choose best and safest way according to your demand.
Delivery time:
a) Delivery time is 60-180 working days based on different machines
b) ODM 60-150 days after all info confirmed.
c) Depends on order quantity on hands
d) According to real production situation, appointment time of delivery.
