Quick Details
-
Brand Name:
-
HYCOM
-
Use:
-
FTTH
-
Warranty Time:
-
10year
-
Application:
-
FTTH FTTB FTTX Network
-
Certification:
-
CE RoHS
-
Fiber Type:
-
Single Fiber Single Mode
-
Warranty:
-
20 Year
-
Material:
-
SMC
-
Dimensions:
-
103.5cm*55.5cm*31cm
-
Wavelength:
-
1310nm/1490nm/1550nm
-
Color:
-
Gray
-
Cable Type:
-
Indoor Armored Patch Cord Cable
-
Connector Type:
-
SC FC LC ST
Quick Details
-
Type:
-
Optical Outdoor Cabinet
-
Model Number:
-
C144C
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
HYCOM
-
Use:
-
FTTH
-
Warranty Time:
-
10year
-
Application:
-
FTTH FTTB FTTX Network
-
Certification:
-
CE RoHS
-
Fiber Type:
-
Single Fiber Single Mode
-
Warranty:
-
20 Year
-
Material:
-
SMC
-
Dimensions:
-
103.5cm*55.5cm*31cm
-
Wavelength:
-
1310nm/1490nm/1550nm
-
Color:
-
Gray
-
Cable Type:
-
Indoor Armored Patch Cord Cable
-
Connector Type:
-
SC FC LC ST

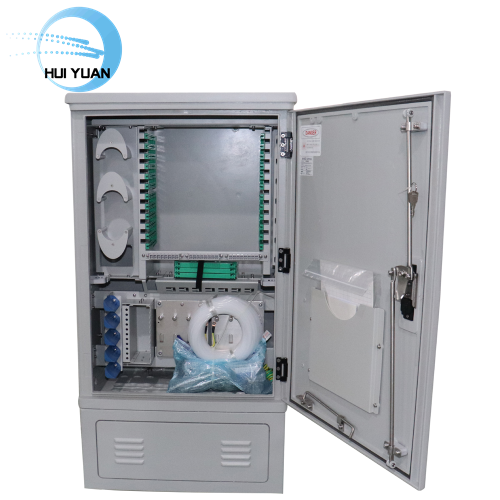

HY-18-C serial outdoor cabinet is weather proof designed for joining and terminating fiber optic feeder and distribution cables. It is suitable for branching single fiber cable into multi fiber cable, The cabinet is designed for extreme climate conditions such as water ingress, dust and extreme temperature. can be applied in active link with trunk optical cables and cable distribution, accomplishing fusion, storage, distribution and dispatch for the cables.
Standard case body,made of high intensity, anti-corrosive,anti-aging special composite material(SMC-Glass steel), with
protection reaching IP65 grade.
Adapting various bad weather condition, with reliable sealing,water-proof and dampproof.
Splicing&distribution integration module with adapter assembling,fusion and connection, storage in integration,inserted assembling
Available for different type of adapters such as FC, SC, ST
Adapters assembling with deflexion of 30o to ensure fiber pigtail bending radius,with perfect control winding ring of the fiber in horizontal and vertical
The bottom end is assembled with spare splice tray,for direct fusion and connection of trunk optical cables and distribution cables
Application: Telecommunications subscriber loop, Fiber to the home (FTTH), LAN/WAN, CATV
|
Spcification
|
HY-18-C96
|
HY-18-C144A/B
|
HY-18-C288A/B
|
HY-18-C576A
|
HY-18-C576B
|
|
Dimension(HxWxD)
|
700*450*280
|
1035*555*310
|
1450*750*320
|
1450*750*540
|
1550*1460*360
|
|
Material
|
SMC-Glass steel
|
SMC-Glass steel
|
SMC-Glass steel
|
SMC-Glass steel
|
SMC-Glass steel
|
|
Splice Module
|
10 pcs
|
12 pcs
|
24 pcs
|
48 pcs
|
48 pcs
|
|
Capacity
|
120 core
|
144 core
|
288 core
|
576 core
|
576 core
|
|
Door
|
1 Door(Front)
|
1 Door(Front)
|
1 Door(Front)
|
2 Doors(Front+Back)
|
2 Doors(Front)
|
|
Installation Modes
|
Pole-mounted, wall-mounted, and base-installed
|
Pole-mounted, wall-mounted, and base-installed
|
base-installed
|
base-installed
|
base-installed
|
|
Operating Environment
|
–40°C to 45°C
|
–40°C to 45°C
|
–40°C to 45°C
|
–40°C to 45°C
|
–40°C to 45°C
|
|
Storage Temperature
|
-40℃～+60℃
|
-40℃～+60℃
|
-40℃～+60℃
|
-40℃～+60℃
|
-40℃～+60℃
|
|
Relative humidity
|
≤95%（+40℃）
|
≤95%（+40℃）
|
≤95%（+40℃）
|
≤95%（+40℃）
|
≤95%（+40℃）
|
|
Atmospheric pressure：
|
70Kpa～106Kpa
|
70Kpa～106Kpa
|
70Kpa～106Kpa
|
70Kpa～106Kpa
|
70Kpa～106Kpa
|
|
Water-proof and Dust-proof Rating
|
IP65
|
IP65
|
IP65
|
IP65
|
IP65
|
|
Connector
|
SC,FC,LC duplex
|
SC,FC,LC duplex
|
SC,FC,LC duplex
|
SC,FC,LC duplex
|
SC,FC,LC duplex
|
|
Package
|
950x490x320
|
1150*590*350
|
1550x780x350/1690x780x390
|
1590x780x570
|
1590x780x570
|
|
Innner Structure
|
Customize
|
Customize
|
Customize
|
Customize
|
Customize
|
