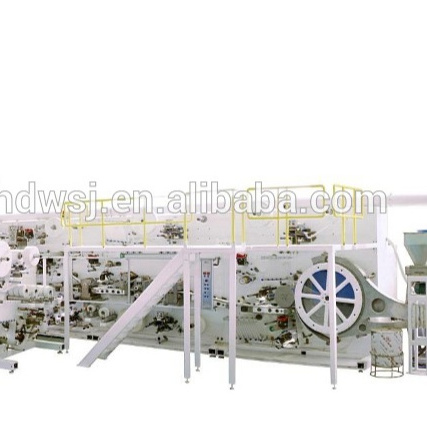

Baby Diaper Making Machine Manufacturer For HD-NK Annular Elastic U Style Baby Diaper Machine

Main Parameter: Overal size(m):25m X 5m X4 m(for reference only) Machine size(m):22m X 2.5m X3.5m(According to the sample provided by client) Design speed:500 pcs / minute Stable speed:350-400 pcs / minute Rejection rate ≤3%(excluding scrap caused by hot melt , materials splicing or joint) Work efficiency ≥85% Power supply:380V,50HZ(three-phase four-lines+ ground wire) Power consumption:About 350KW Air compressure:0.6-0.8Mpa Machine weight:About 65 Tons Main Configuration: Product structure:Top &bottom tissue, cotton core (with SAP), ADL, PE film, frontal tape, cover sheet NW fabric, leg cuffs, side sticker, elastic waistline Product size(mm):S:390 X 300 M:450 X 320 L: 480 X 320 XL: 520 X 320 Control system:PLC control system, operating on the touch screen, man-machine interface,match with a LED digital display to control the production by pattern digitization Tension system:Tension unwinding equipped, constant tension control with buffer system, automatic web guide system, The unwinding system ensure materials stable working at full speed splice, minimize the impact on materials tension force, to reduce downtimes Drive system:Full servo drive, digital size change, ensure run synchronized at full process. The frontal tape and back sheet adopt servo positioning cutting to ensure pattern consistent with phase Safety system:Safety guard installed at the operating side, with security identifier, emergency stop switch at per segment, drive side is equipped with the radiator system and safety pull wire Packaging system Auto stacker, two push two exit (customized design) Corrective system BST automatic web guide system
