Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Number of Axes:
-
---
-
Travel (X Axis)(mm):
-
78 mm
-
Travel (Y Axis)(mm):
-
80 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
500W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LY
-
Voltage:
-
AC380V(Option)
-
Dimension(L*W*H):
-
485x415x374mm
-
Power (kW):
-
0.5
-
Weight (KG):
-
15
-
Core Components:
-
Other
Quick Details
-
Working Table Size(mm):
-
300x180x180mm
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 2000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Number of Axes:
-
---
-
Travel (X Axis)(mm):
-
78 mm
-
Travel (Y Axis)(mm):
-
80 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
500W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LY
-
Voltage:
-
AC380V(Option)
-
Dimension(L*W*H):
-
485x415x374mm
-
Power (kW):
-
0.5
-
Weight (KG):
-
15
-
Core Components:
-
Other

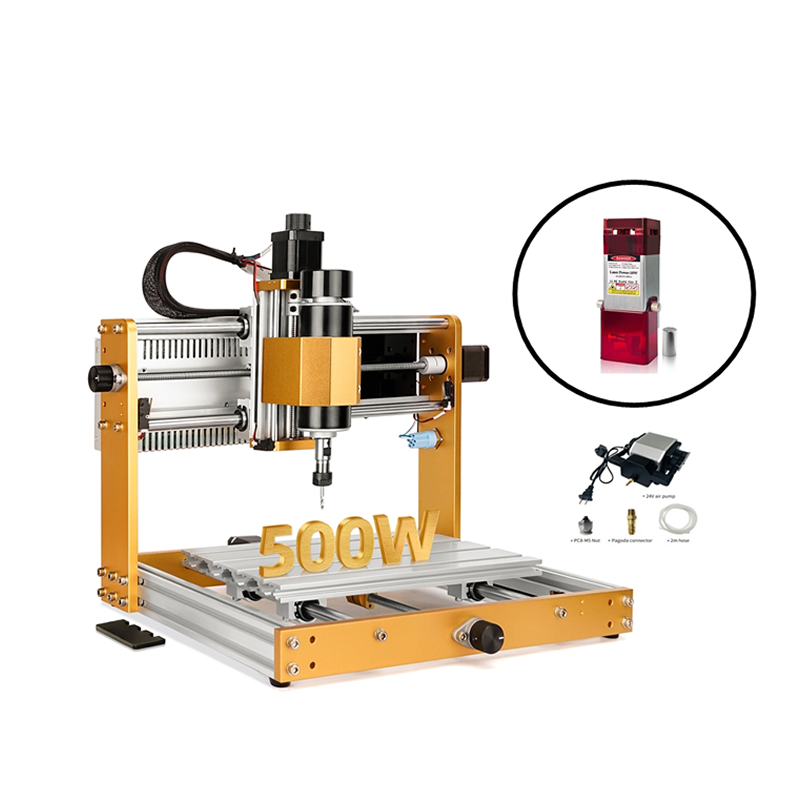

New CNC 3018 Plus 3018 Pro Max V2.0 500W Desktop Wood CNC Router Engraver Kit 52MM Spindle Holder Nema17 Stepper Motors Support Laser 5.5W 10W Function With Offline Panel Limit Switch Emergency
RE:
1. This kit is half-assembled now, needs the customer little DIY assembling, needs certain electronic and the Mechanical Foundation. Any questions pls feel free to contact us !
2. Support Diameter 40MM laser module only (5.5W & 10W)
Advantages With old 3018 Plus V1.0 Version:
1. The installation of the control board eliminates the use of isolation columns, making it convenient for installation and use
2. The new generation of spindle wiring terminals are easy to use and not easy to loosen when pressing wires
3. Using a power supply bracket, the power supply can be fixed on the back of the machine
4. Z-axis travel is 78-80mm (with limit switch installed) ( Old version Z travel 60mm,no limit switch )
5. Use a new integrated limit switch to prevent the impact of metal debris on the false triggering of the limit switch
6. Greatly improved Z-axis strength
7. Convenient shipment and installation of half-assembled products, saving installation time
8. Adjusting the clearance structure of the screw nut and improving the carving accuracy
9. Auxiliary tools can sort out the spacing between slider nuts, making it convenient for machine assembly
10. Limit switch wires and motor wires are all custom lengths
11. Use tie straps to secure the base and trunking for easy wiring management
12. Limit switch, feeler block, emergency stop , offline control board , all with now.
Product Description
Parameter:
Product name 3018Plus V.2.0
Driver chip A4988
Control board three axis 5.2 GRBL 1.1f
Motor 42 stepper motor, body length 48mm
X Shaft-driven bicycle optical shaft+T8 screw rod
Y Shaft-driven bicycle optical axis+T8 screw rod
Z Shaft-driven bicycle optical axis+T8 screw rod
Screw Nut Type Double Nut Clearance Adjustment
Machine size 485x415x374mm
Working area 300*180*80mm
Repetitive positioning accuracy ± 0.025
Processing accuracy ± 0.1
Maximum operating speed 5000mm/min
Maximum processing speed 2000mm/min
Maximum acceleration 200mm/s ²
Manual knob support
Coupling rigid clamping coupling
Frame reinforced aluminum profiles+aluminum alloy plates
Spindle support 500W
Power supply 48V 500W
Control Board Three Axis Control Board 5.2
Emergency stop switch support
Limit switches support 6 (X+, X -, Y+, Y -, Z+, Z -)
Z-axis tool alignment support installation of tool alignment instrument
Laser support (12V 40mm size laser)
Software Candle
Applicable materials: plastic, wood, stone, aluminum, copper
