Quick Details
-
Voltage:
-
220V/380V, 220V/380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SIGO
-
Dimension(L*W*H):
-
180*170*140cm
-
Weight:
-
650 KG
-
Max. Laminate width::
-
680mm
-
Laminating temperature:
-
60-130℃
-
Lamianting speed:
-
0-25m/min
-
Lamination side:
-
Single side
-
Conveyor belt:
-
Auto feed
-
Temperature control:
-
Automatic
-
Motor Power:
-
1.5KW
-
Power of electric heater:
-
6KW
-
Pressure:
-
0-10Mpa
Quick Details
-
Packaging Type:
-
case
-
Packaging Material:
-
Wood
-
Driven Type:
-
Hydraulic
-
Voltage:
-
220V/380V, 220V/380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SIGO
-
Dimension(L*W*H):
-
180*170*140cm
-
Weight:
-
650 KG
-
Max. Laminate width::
-
680mm
-
Laminating temperature:
-
60-130℃
-
Lamianting speed:
-
0-25m/min
-
Lamination side:
-
Single side
-
Conveyor belt:
-
Auto feed
-
Temperature control:
-
Automatic
-
Motor Power:
-
1.5KW
-
Power of electric heater:
-
6KW
-
Pressure:
-
0-10Mpa
SPECIFICATION

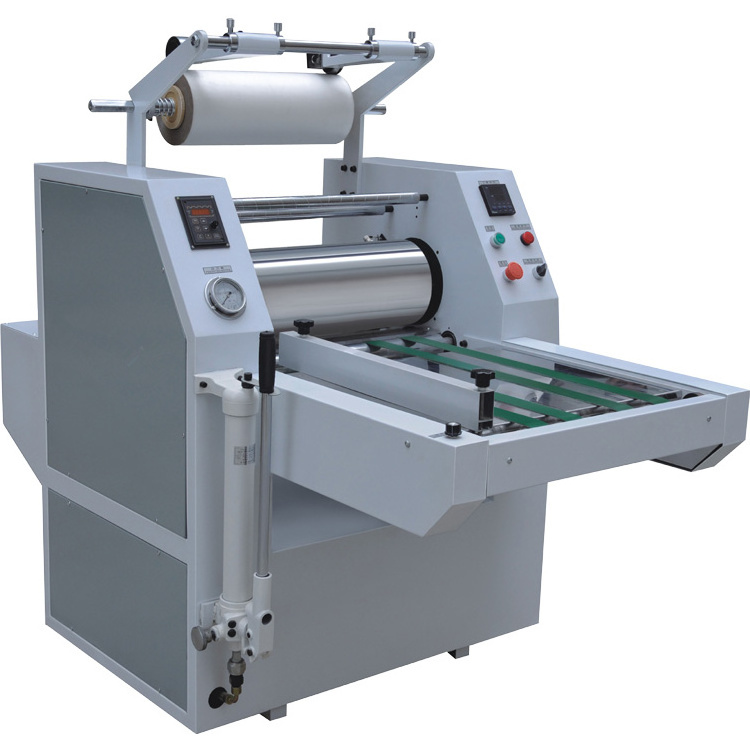

YYFM 720 Hydraulic Oil Laminating Machine
YYFM-520/720/900/1000/1200 hydraulic film laminator is one newly developed machine to meet our market after abroad technology is introduced. This machine is of advanced design, compact structure and convenient operation. It is used to expand BOPP film and thermal film to be laminated with paper by one side or double side. After lamination, the prints are much too glossy, colorful, strong, at the same, have high intensity, water-proof and moisture resistance. So the machine is widely used on text books, calendars, pictures, maps and some packaging boxes. Therefore, it is a necessary processing equipment in modern printing industries.
|
Model
|
YYFM520
|
YYFM720
|
YYFM900
|
YYFM1000
|
YYFM1200
|
|
Max laminating width (mm)
|
480
|
650
|
850
|
1000
|
1200
|
|
Speed (m/min)
|
15
|
15
|
15
|
15
|
15
|
|
Overall dimension (cm)
|
105*140*135
|
120*160*135
|
145*160*135
|
165*160*135
|
185*160*135
|
|
Power voltage (v)
|
3 phase AC 380
|
3 phase AC 380
|
3 phase AC 380
|
3 phase AC 380
|
3 phase AC 380
|
|
Power frequency(hz)
|
50
|
50
|
50
|
50
|
50
|
|
Electric power consumption (kw)
|
2.4
|
3.5
|
5
|
6
|
7
|
|
Weight (kgs)
|
300
|
380
|
460
|
540
|
620
|
|
Laminating temperature
|
60-130ºC
|
60-130ºC
|
60-130ºC
|
60-130ºC
|
60-130ºC
|
|
Laminating pressure
|
≤4Mpa
|
≤4Mpa
|
≤4Mpa
|
≤4Mpa
|
≤4Mpa
|
|
Slitting device
|
yes
|
yes
|
yes
|
yes
|
yes
|
|
Lamination side
|
Single side
|
Single side
|
Single side
|
Single side
|
Single side
|
|
Conveyor belt
|
Auto feed
|
Auto feed
|
Auto feed
|
Auto feed
|
Auto feed
|
|
Temperature control
|
Automatic
|
Automatic
|
Automatic
|
Automatic
|
Automatic
|
Detailed Images
|
01: toothline cutter
|
02: Variable speed display
|
|
03: Hydraulic pressure gauge
|
04: rewinding adjustment
|
|
05: Exit impression roller
|
06: Hydraulic heater
|
|
07: Heater pressure relief knob
|
08: film cutter
|
|
09:Temperature Controller
|
10: motor switch
|
|
11: scram button
|
12: power
|
|
13: conveyor
|
14:Frequency control switch
|
Working video
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
(L)180cm* (W)170cm* (D)140cm
|
|
|
Weight
|
G.W.: 380kgs N.W:350kgs
|
|
|
Packaging Details
|
The normal package is non-fumigation casewooden box(Size: L115cm*W105cm*H111cm).
If you need shipping mark on out of carton, pls tell us before order. Otherwise we will paste "SIGO OFFICE SUPPLIES" on carton.
|
|
