Quick Details
-

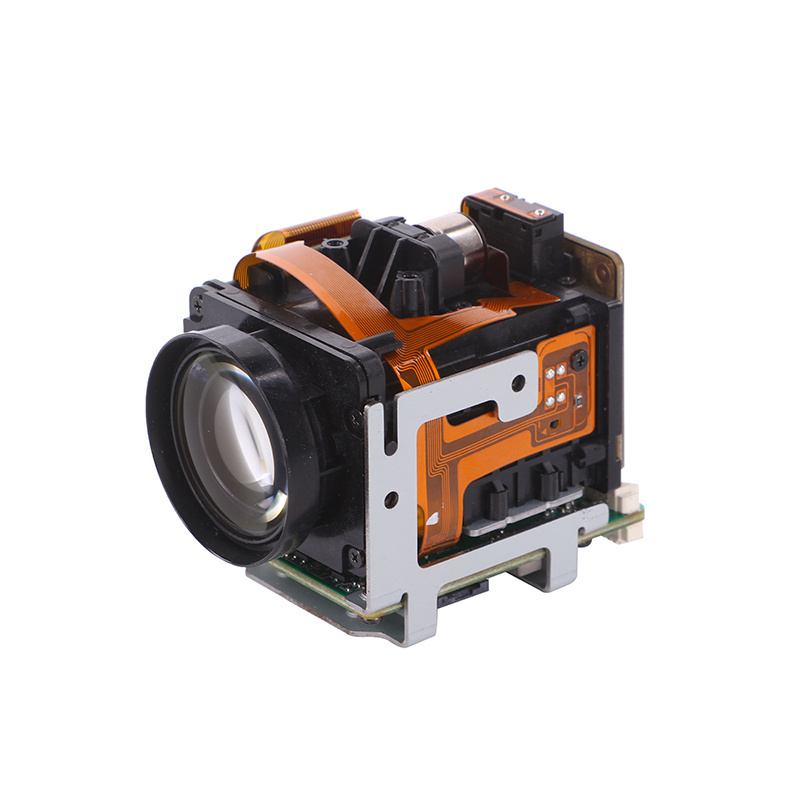

Product name:
-
Zoom Camera Module
-
Optical Zoom:
-
10X
-
Warranty:
-
1 Year, 1 Year
-
Pixel:
-
4 MP
-
Focal Length:
-
4.8~48mm
-
Size:
-
61.7*42.4*50.3mm
-
Weight:
-
100g
-
Video Compression:
-
H.264/MJPEG/H.265
-
Power Supply:
-
DC12V
-
Interface:
-
RJ45
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Univision
-
Model Number:
-
UV-ZNS4110
-
Product name:
-
Zoom Camera Module
-
Optical Zoom:
-
10X
-
Warranty:
-
1 Year, 1 Year
-
Pixel:
-
4 MP
-
Focal Length:
-
4.8~48mm
-
Size:
-
61.7*42.4*50.3mm
-
Weight:
-
100g
-
Video Compression:
-
H.264/MJPEG/H.265
-
Power Supply:
-
DC12V
-
Interface:
-
RJ45
|
Specifications
|
|
|
||
|
Camera
|
Image Sensor
|
1/2.8” Progressive Scan CMOS
|
||
|
|
Minimum Illumination
|
Color:0.001 Lux @(F1.6,AGC ON);B/W:0.0005Lux @(F1.6,AGC ON)
|
||
|
|
Shutter
|
1/25s to 1/100,000s；Supports delayed shutter
|
||
|
|
Aperture
|
DC drive
|
||
|
|
Day/Night Switch
|
ICR cut filter
|
||
|
|
Digital zoom
|
16X
|
||
|
Lens
|
Focal Length
|
4.8-48mm, 10x Optical Zoom
|
||
|
|
Aperture Range
|
F1.7-F3.1
|
||
|
|
Horizontal Field of View
|
62-7.6°（wide-tele）
|
||
|
|
Minimum Working Distance
|
1000m-2000m (wide-tele)
|
||
|
|
Zoom Speed
|
Approximately 3.5s(optical lens, wide-tele)
|
||
|
Image（Maximum Resolution：1920*1080）
|
Main Stream
|
50Hz: 25fps (2560x1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (2560x1440, 1920 × 1080, 1280 × 960, 1280 × 720)
|
||
|
|
Image Settings
|
Saturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browser
|
||
|
|
BLC
|
Support
|
||
|
|
Exposure Mode
|
AE / Aperture Priority / Shutter Priority / Manual Exposure
|
||
|
|
Focus Mode
|
Auto / One step / Manual/ Semi-Auto
|
||
|
|
Area Exposure / Focus
|
Support
|
||
|
|
Optical Defog
|
Support
|
||
|
|
Image Stabilization
|
Support
|
||
|
|
Day/Night Switch
|
Automatic, manual, timing, alarm trigger
|
||
|
|
3D Noise Reduction
|
Support
|
||
|
Network
|
Storage Function
|
Support Micro SD / SDHC / SDXC card (256g) offline local storage, NAS (NFS, SMB / CIFS support)
|
||
|
|
Protocols
|
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6
|
||
|
|
Interface Protocol
|
ONVIF(PROFILE S,PROFILE G),GB28181-2016
|
||
|
Interface
|
External Interface
|
36pin FFC (Network port, RS485, RS232, CVBS,SDHC, Alarm In/Out
Line In/Out, power),LVDS |
||
|
General
Network |
Working Temperature
|
-30℃~60℃, humidity≤95%(non-condensing)
|
||
|
|
Power supply
|
DC12V±25%
|
||
|
|
Power consumption
|
2.5W MAX(4.5W MAX)
|
||
|
|
Dimensions
|
62.5x49x53.1mm, 61.7x48.2x50.6mm(camera stand)
|
||
|
|
Weight
|
160g/100g
|
||
FAQ
1. Who we are?
Hangzhou Huanyu Vision, established in 2019, is based in Zhejiang, China. We have more than 50 staff. Our market is Eastern Asia(25.00%), North America(25.00%), Western Europe(20.00%), Eastern Europe(15.00%), South Asia(5.00%).
Hangzhou Huanyu Vision, established in 2019, is based in Zhejiang, China. We have more than 50 staff. Our market is Eastern Asia(25.00%), North America(25.00%), Western Europe(20.00%), Eastern Europe(15.00%), South Asia(5.00%).
2. What warranty do we offer?
We always make a pre-production sample before mass production, and always make total and final Inspection before shipment.
3. What do we have?
Zoom camera module, Zoom camera, Camera block, Marine PTZ, IR PTZ, 4G PTZ.
4. Why can you buy from us?
More than 10-year experience in zoom camera module and PTZ design. Our factory covers an area of 2500 square meters, with 200 employees and 30 R&D engineers. We were awarded National High-tech Enterprise, Provincial R&D Center in China.
5. What services can we provide?
OEM and ODM service is available.
Deliver goods on schedule, fast delivery.
Optional shipping term: EXW, FOB, DDU.
24-hours technical support and on-line service.
