Quick Details
-
Detection Angle:
-
360°
-
Power Consumption::
-
0.45W (work)
-
Power Source:
-
220-240V/AC
-
Power Frequency:
-
50/60Hz
-
Rated Load:
-
1200W (incandescent lamp) 300W (energy-saving lamp)
-
Detection Range:
-
6m (<24°)
-
Time Delay Setting:
-
min.10sec±3sec Max: 7min±2min
-
Ambient Light:
-
<3-2000LUX (adjustable)
-
Working Temperature:
-
-20~+40°
Quick Details
-
Use:
-
Ceiling Mounted PIR Motion Sensor For LED Light
-
Place of Origin:
-
Shanghai, China
-
Product Name:
-
HOT Selling Ceiling Mounted PIR Motion Sensor For LED Light
-
Detection Angle:
-
360°
-
Power Consumption::
-
0.45W (work)
-
Power Source:
-
220-240V/AC
-
Power Frequency:
-
50/60Hz
-
Rated Load:
-
1200W (incandescent lamp) 300W (energy-saving lamp)
-
Detection Range:
-
6m (<24°)
-
Time Delay Setting:
-
min.10sec±3sec Max: 7min±2min
-
Ambient Light:
-
<3-2000LUX (adjustable)
-
Working Temperature:
-
-20~+40°

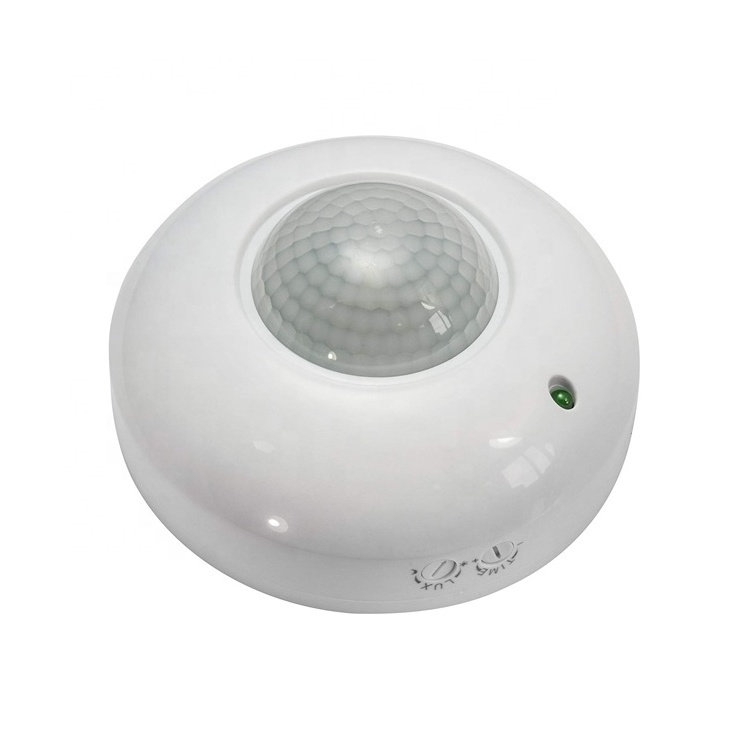

HOT Selling Ceiling Mounted PIR Motion Sensor For LED Light
Occupancy Sensing switches are commonly used to control lighting and extract ventilation. They will save energy by ensuring lights and fans are not left on. The energy savings will be high with a short energy saving investment payback time if connected to average energy level lighting such as fluorescent tubes, or compact fluorescent lamps. Higher savings if controlling tungsten or halogen lighting. In a domestic application these products are well suited to rooms such as integral garages, store rooms, toilets, or any other room where lighting may accidentally be left turned on. Potential energy savings in commercial property will be far greater with shorter payback times, generally less than one year.
This product is ideally suited to circulation areas, store rooms, toilets, kitchens, common stairs wells or corridors where there are are frequently people passing in an out of an area and the lighting often gets left on all day. Payback is the time it takes for an investment in energy conservation to repay its cost in energy savings. All our PIR and microwave switches have CE marking and have a 1 year warranty.
Power Source: 220 -240V AC
Detection Range: 360°
Working Temperature: -20 - 40 deg C,
Working Humidity: <93%RH
Ambient Light: 3-2000LUX (adjustable)
Time-Delay: min: 10sec±3sec - Max: 7min±2min
Installation Height: 2.2-4m
Power Consumption: 0.45W (work), 0.1W (static)
Rated Load: 1200W (incandescent lamp)/ 300W (energy-saving lamp)
Detection Motion Speed: 0.6 ~1.5m/s,
detection distance: 6m max (24 deg C)
Diameter 114mm, depth 52mm
One year warranty.
- 1 x Motion Sensor switch
- 1 x User Instruction
