Quick Details
-
Brand Name:
-
KLQD
-
Material of body::
-
Brass,stainless steel or plastic
-
Voltage range::
-
plus or minus 10%
-
Type::
-
Normally open & Normally closed
-
Motion pattern::
-
Direct action or Pilot operated
-
Port size:
-
1/2"
-
Timer:
-
OK
Quick Details
-
Port Size:
-
1/4"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
KLPT-A
-
Brand Name:
-
KLQD
-
Material of body::
-
Brass,stainless steel or plastic
-
Voltage range::
-
plus or minus 10%
-
Type::
-
Normally open & Normally closed
-
Motion pattern::
-
Direct action or Pilot operated
-
Port size:
-
1/2"
-
Timer:
-
OK

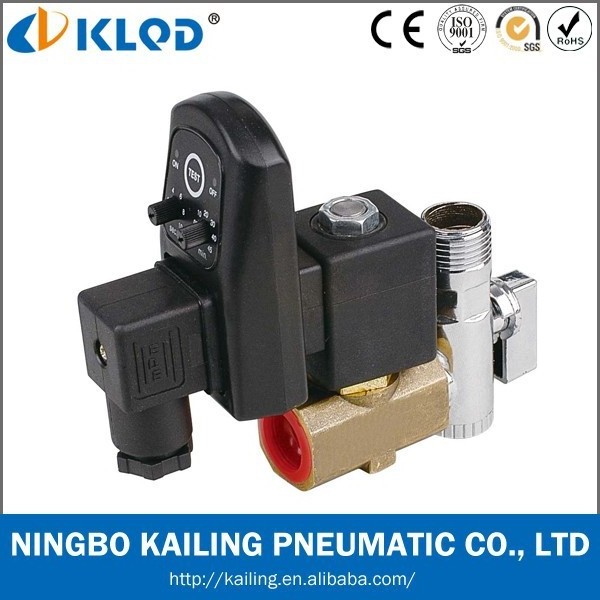

automatic solenoid valve
|
Orifice Size |
5.0MM |
||
|
Body |
Brass |
||
|
Working Pressure |
1.6Mpa,4.0Mpa(Optional) |
||
|
Ambient Temp |
2°C~+55°C |
||
|
Medium Temp |
0~90°C |
||
|
Insulate grade |
H |
||
|
Protection grade |
IP65 |
||
Timer
|
Interval (minute) |
0.5-45 |
|
Drain time (second) |
0.5-10 |
|
Manual test button |
Microswitch |
|
Voltages |
24-240V AC/DC,50-60HZ |
|
Current consumption |
≤4mA |
|
Ambient Temp |
-40°C~+60°C |
|
Protection grade |
IP65 |
|
Shell material |
Flame Retarding ABS |
|
Electrical connection |
DIN43650A |
|
Indicating lamp |
LED indicating lamp |
We have many other types of solenoid valves for your selection, below is some pictures
Payment Terms
Pay by T/T, LC
Customers can choose which payment ways that you accept, paypal is most useful and safe, please don’t refuse
paypal fee when you choose it.
Shpping Terms
Loading Port: ShangHai or NingBo, China
Sample Delivery: 7-10days.
Mass Production Delivery: 20 -50days after sample confirmation
Samples are available within 7-10 working days.
Welcome to China and visit our factory, If so you will know more ! MANY THANKS !
