Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kinmore Motor
-
Model Number:
-
KM-20A180-144-1585
-
Torque:
-
On load 3kg.cm
-
Motor housing Size:
-
L 32.1*Dia 20.4 mm
-
Nominal voltage:
-
DC 15V
-
Operating Temperture:
-
-10~ +60
-
Shaft Position:
-
Inline
-
Rotation:
-
CW/CCW
-
End Play:
-
0.05~0.35 mm
-
Net Weight:
-
58g
-
Brush Kind:
-
Metal or Carbon Brush
-
Motor type:
-

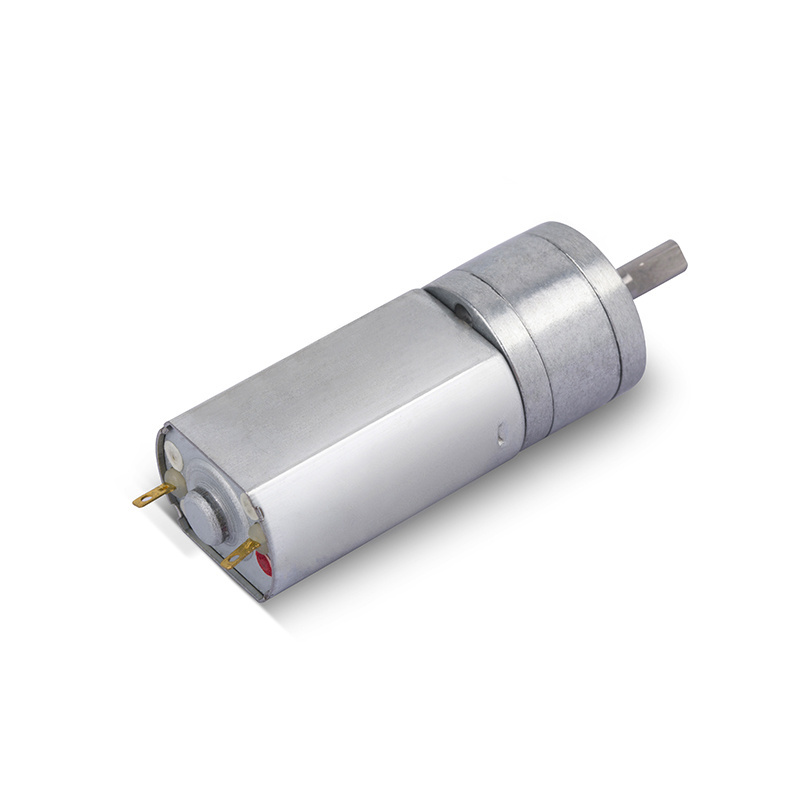

Dc Gear Motor With Encoder Of Micro Motor
-
Certification:
-
RoHS
Quick Details
-
Speed(RPM):
-
On load 60rpm
-
Continuous Current(A):
-
On load <0.47A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kinmore Motor
-
Model Number:
-
KM-20A180-144-1585
-
Torque:
-
On load 3kg.cm
-
Motor housing Size:
-
L 32.1*Dia 20.4 mm
-
Nominal voltage:
-
DC 15V
-
Operating Temperture:
-
-10~ +60
-
Shaft Position:
-
Inline
-
Rotation:
-
CW/CCW
-
End Play:
-
0.05~0.35 mm
-
Net Weight:
-
58g
-
Brush Kind:
-
Metal or Carbon Brush
-
Motor type:
-
Dc Gear Motor With Encoder Of Micro Motor
-
Certification:
-
RoHS
gearbox 12 volt 50 watt dc motor switched reluctance motor
More than 20 years' motor design and production experience
90 million-piece annual capacity
Auto motors are almost entirely produced on automated lines
Facilities certified to IAFT16949:2016,ISO 9001:2008 and ISO 14001:2004
Advanced equipment from Sodick, Hexagon,Mitutoyo, Magtrol and Votsch
10% sales revenue invested in R&D and automatic equipment every year
Customer PPM: auto motors s 30;general motors s 3,000
gearbox 12 volt 50 watt dc motor switched reluctance motor
1.1. Micro Spur Gear motor Product Specification:
- MEASURING CONDITIONS:
- Rated Voltage: DC 15.0 V ; Operating Voltage range:6~15 V
- Environmental temperature: +5 °C - +35°C
- Environmental humidity: 65%RH
- Motor Position: Motor to be held with shaft horizontally.
- ELECTRICAL CHARACTERISTICS (At initial stage after 30 seconds run-in)
- No load Speed: 85 ±10%rpm
- No load Current: 0.08A
- On load Speed: 60 ±10%rpm
- On load Torque: 3kg.cm
- On load Current: 0.47A
- Direction of Rotation: CW when viewing motor output side with positive voltage applied to p ositive(red) terminal.
- The Same Series Other Different Models:
| Ratio | Model No. | Voltage | No Load | On Load | ||||
| Operating | Nominal | Current | Speed | Current | Torque | Speed | ||
| V | V | A | r/min | A | kg.cm | r/min | ||
| 1/16 | KM-20A180-16-241400 | 6~24 | 24 | 0.14 | 1400 | 0.74 | 0.6 | 1100 |
| 1/58 | KM-20A180-58-03125 | 2~3 | 3 | 0.22 | 125 | 0.75 | 0.6 | 98 |
| 1/78 | KM-20A180-78-1243 | 6~12 | 12 | 0.02 | 43 | 0.045 | 0.5 | 35 |
| 1/1220 | KM-20A180-1220-1205 | 6~12 | 12 | 0.032 | 5 | 0.057 | 4 | 4 |
Note: (1).The above performance are customized from clients just for you reference.
(2).Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in 1mm=0.039in 1g=0.035oz.
(3). Customized electric performance on request by using suitable dc motor windings and ratio.
1.2. Micro Spur Gear motor P roduct Outline:
