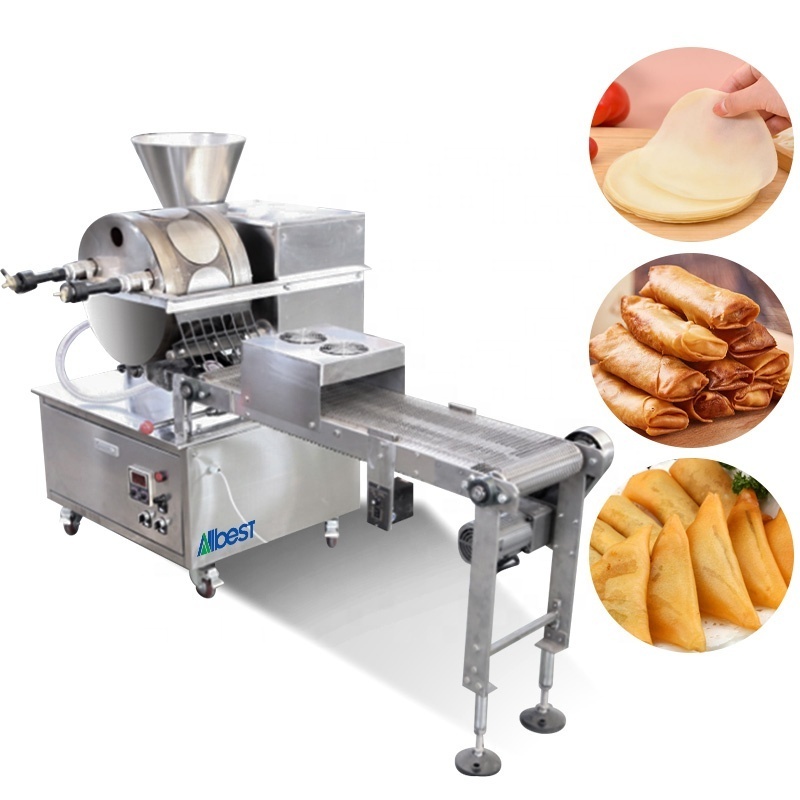

Small Portable Low Price Automatic Mini Pancake Maker Chapati Roti Spring Roll Sheet Making Machine For Canada Dubai Australia

Small Portable Low Price Automatic Mini Pancake Maker Chapati Roti Spring Roll Sheet Making Machine For Canada Dubai Australia

FOB Reference Price: Get Latest Price

≥1 Sets

US $6500

≥5 Sets

US $6000

≥20 Sets

US $5000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: AB

Voltage:: 220V/380V, 220v/50hz

Power:: 8.2kw, 8.2kw

Dimension(L*W*H):: 4300*800*1350mm

Weight:: 350 KG, 350KG

Model:: ABCJP-1A

Capacity:: 1600-2400/H

Wrapper size:: single 20cm

Dimension:: 2000*900*1100mm

Quick Details

Production Capacity:: 1600-2400/H

Type:: Spring roll wrapper

Place of Origin:: Henan, China

Brand Name:: AB

Voltage:: 220V/380V, 220v/50hz

Power:: 8.2kw, 8.2kw

Dimension(L*W*H):: 4300*800*1350mm

Weight:: 350 KG, 350KG

Model:: ABCJP-1A

Capacity:: 1600-2400/H

Wrapper size:: single 20cm

Dimension:: 2000*900*1100mm

Technical Parameter

Model	ABCJP-1A
Wrapper size	single 20cm
Size of machine	*20009001100mm*
Electric Power	8.2KW or gas
Host Power	0.75KW
Power Cutter	0.55kw
Belt Power	0.18kw
Weight	350kg
Size of the sheet ( Max.)	round: 180mm rectangular:200mm
Thickness of the sheet	0.3-1.0mm
Production capacity	1600-2400pcs/h

Product introduction

Introduction of Injera Skin Chapati Spring Roll Wrapper Machine

1. The thickness of the end product can be 0.3-4.0 mm. The capacity can be 500-4000 pcs/h. Both the diameter and capacity can be customized.

2.Our spring roll wrapper machine is made of food grade stainless steel. The heating mode of the roasting wheel can be gas type or electric type.

3. It can also save manpower, and reduce the production cost, improve market competitiveness, seize business
opportunities.

4. It is the intelligent model machine, which has the high output, low energy consumption.

Different molds

Finished product display

Equipment features and advantages:

*Full frequency conversion: Change the power supply frequency to adjust the load, reduce power consumption, reduce losses, and prolong the service life of equipment.
*0 Noise: During the day and night, the operating noise of the equipment is controlled below 40 decibels, which will not affect the surrounding environment, not disturb the people, and worry-free production.
*Maintenance-free: The innovative technology equipment does not need maintenance and other maintenance during the service cycle, and only needs to be filled with lubricating grease once a year.
* Simplified operating system: stable performance, unique mechanism, labor saving, innovative technology, one-person operation, and can start production without technical experience.
*Humanized customer plan: rich technical reserves, experienced manufacturers in the industry, professional customization for customers, customer needs are our standards.
*Diversified heating options: ordinary electric hot plate, imported full-bridge electromagnetic, ordinary gas, heating.

Production process

put the prepared batter into the slurry bucket, when the baking wheel is heated to the set temperature, start the slurry pump to send the batter to the nozzle, operate the clutch lever to make the batter adhere to the batter of the baking wheel . On the arc surface, when the roasting wheel rotates through a certain angle, the batter is cooked and automatically separated from the roasting wheel to form a spring roll skin with a fixed thickness or wrap the spring roll immediately.

The shape, size and thickness of the spring roll skin can be customized, and you can contact customer service for customization.

Click the link below to consult customer service.

Product details

Electric heating roller Gas heating roller

The heating roasting wheel is made of alloy steel, which is not deformed. It is heated by two heating methods, electric heating and gas heating.You can contact customer service to choose.

Food Grade Teflon Conveyor Belt

Two different material conveyor belts are available

Stainless steel conveyor belt

You can contact customer service to choose.

Machines that can be equipped

Air cooler

It can be equipped with air cooling. After the pancake is heated on the roller, the temperature of the cake is high, and the air cooler can reduce the temperature of the cake.

Teflon conveyor belt

After the cake is cooked from the baking wheel, the conveyor belt can be used, which can reduce the production time and labor, and
greatly improve the work efficiency.

Folding machine

After the cake passes through the air cooler, it is conveyed by the conveyor belt to the folding machine, the folding machine is turned over, and the cake can be counted into a stack of the number you want.

Stainless steel conveyor belt

It can be equipped with an additional conveyor belt. After the cake has passed through the air cooler and the folding machine, it
can be directly conveyed to the conveyor belt for easy storage in production.
