Quick Details
-
Weight (KG):
-
185
-
Usage:
-
round pipe Rust Removal
-
Name:
-
Metal Polishing machine
-
Weight:
-
185kg
-
Rotation speed:
-
2800r/min
-
Diameter range:
-
2-100mm
-
Polishing roller diameter:
-
250mm
-
Polishing speed:
-
20-60mm/s
Quick Details
-
Place of Origin:
-
Henan, China, Henan. China
-
Brand Name:
-
yingwang
-
Power (kW):
-
4.5, 4.5
-
Weight (KG):
-
185
-
Usage:
-
round pipe Rust Removal
-
Name:
-
Metal Polishing machine
-
Weight:
-
185kg
-
Rotation speed:
-
2800r/min
-
Diameter range:
-
2-100mm
-
Polishing roller diameter:
-
250mm
-
Polishing speed:
-
20-60mm/s
Stainless Steel Round Pipe Polishing Machine/ round tube deruster Cloth wheel polishing machine
Introductions of pipe polishing machine :
T he main features: increase the cooling system, it can be loaded grinding wheels, the wheel rotation speed can be adjusted, to control the speed of the feeding, and can satisfy the demands of different diameter work piece grinding and polishing.
Application of pipe polishing machine:
I t is suitable for all kinds of axle, member bar, pope fittings cylindrical surface grinding and polishing; long stainless steel tube, boiler tube, high precision drawn tube, ti-alloy bars; engineering machinery hydraulic lever, automobile and motorcycle shock absorber rod, valve rod, oil field pumping polished rod; polishing and grinding of various kinds of all kinds of metal/metal bar, pipe, plastic, plastic rubber tube, textile machinery polished rod and wire rod.
Parameter of pipe polishing machine:
|
Model |
YW -7 |
YW -10 |
YW -12 |
YW -23 |
|
Max working dia.(MM) |
1-80 |
1-120 |
1-150 |
20-200 |
|
Polishing length(MM) |
≥ 6000 |
≥ 6000 |
≥ 6000 |
≥ 6000 |
|
Main roll dia.(MM) |
32 |
32 |
32 |
32 |
|
Max wheel dia.(MM) |
300 |
300 |
300 |
300 |
|
Max wheel thickness(MM) |
160 |
160 |
160 |
160 |
|
Guide roller dia.(MM) |
230 |
230 |
260 |
260 |
|
Buff whell speed(r/min) |
2800 |
2800 |
2800 |
2800 |
|
Guide roller speed(r/min) |
0-200(adjustable) |
|||
|
Working speed(m/min) |
0-10(adjustable) |
|||
|
Buff wheel power(KW) |
3 |
3 |
4 |
4 |
|
Guide roller power(KW) |
0.4 |
0.4 |
0.8 |
0.8 |
|
Total power(KW) |
3.4 |
3.4 |
4.8 |
4.8 |
|
Total weight(KG) |
320 |
360 |
420 |
460 |
|
Dimension (MM) |
900*700*1200 |
1000*700*1200 |
1100*800*1200 |
1200*800*1200 |
|
Lighting voltage(V) |
36 |
36 |
36 |
36 |

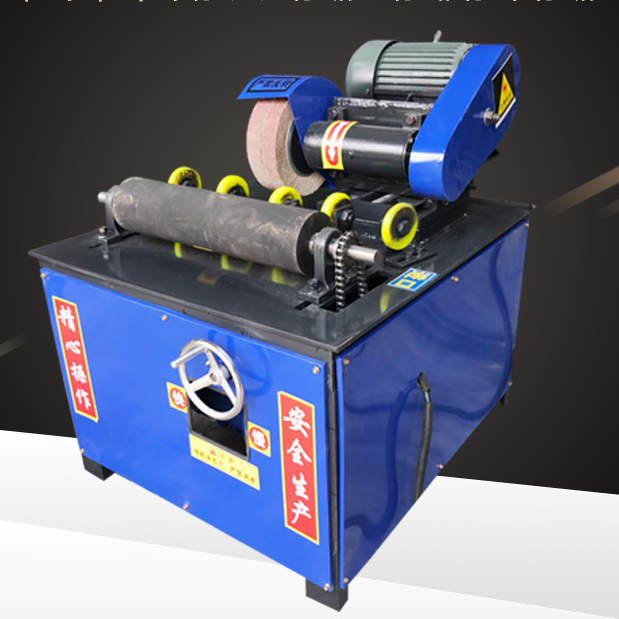

Product show of pipe polishing machine:
