Quick Details
-
Power:
-
5.5hp
-
Dimension(L*W*H):
-
865*500*1120mm
-
Weight:
-
160 kg, 160KG
-
Product name:
-
Plate Compactor
-
Std Rated Power-Gross:
-
5.5HP
-
Model:
-
HZR160
-
Plate size:
-
650*500mm
-
Vibrating fre:
-
5500rpm(92HZ)
-
Walking speed:
-
20-23m/min
-
Engine type:
-
Evangel
-
Max output::
-
5.5HP
-
Overall size:
-
865*500*1120mm
Quick Details
-
Application:
-
Construction
-
Brand Name:
-
Evangel
-
Place of Origin:
-
China
-
Power:
-
5.5hp
-
Dimension(L*W*H):
-
865*500*1120mm
-
Weight:
-
160 kg, 160KG
-
Product name:
-
Plate Compactor
-
Std Rated Power-Gross:
-
5.5HP
-
Model:
-
HZR160
-
Plate size:
-
650*500mm
-
Vibrating fre:
-
5500rpm(92HZ)
-
Walking speed:
-
20-23m/min
-
Engine type:
-
Evangel
-
Max output::
-
5.5HP
-
Overall size:
-
865*500*1120mm
Nissa Tang
Whatsapp/Wechat/Mobile:
+86-15093290380
E-mail:
nissa@evangelchina.com

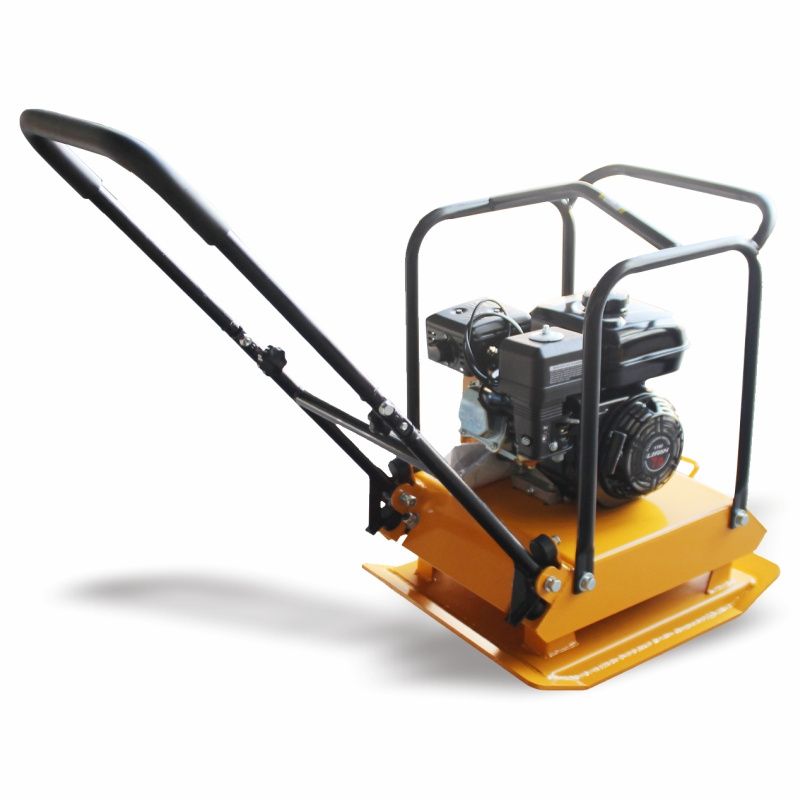

Hot sale machine new vibrating plate compactor with CE
A plate compactor is an indispensable piece of construction equipment that is used to compress different types of soil, asphalt and gravel. Plate compactor increases productivity because it provide most optimal performance. Once the machine is turned on, flat, heavy plate starts to move up and down as quick as the operator wants. PME has many plate compactor models for different construction jobs, which differ in size, power and operating mechanism.
|
Model
|
PC90
|
HZR160
|
|
|
Engine
|
Air-cooled.4-stroke,single cylinder
|
|
|
|
Engine type
|
Honda GX160/IDEAL engine/Diesel engine
|
|
|
|
Weight
|
90KGS
|
110KGS
|
|
|
Frequency
|
4200VPM
|
4200VPM
|
|
|
Centrifugal force
|
15KN
|
30KN
|
|
|
Compaction depth
|
30cm(12in)
|
30cm(12in)
|
|
|
Plate size cm
|
510*550mm
|
650*500mm
|
|
|
Package
|
1000*650*750mm
|
865*500*1120mm
|
|
|
Packing
|
Hob and Carton
|
|
|
Safety and reliability
External cage to protect the plate from accidental damage.
The V-belt drive is fully enclosed for better safety and trouble free use.
The V-belt drive is fully enclosed for better safety and trouble free use.
Easy transportation
Foldable handle for easy transportation and storage.Build in wheels for easy transportation. Open bottom plate to faciliate self cleaning.
More utilisation
Properly curved edges for easy access to corners during compaction.
Heavy duty shock buffer mounts to reduce vibration toward upper deck and handle.
