Quick Details
-
MOQ:
-
100PCS
-
Material:
-
EPDM ABS
-
Color:
-
Black/white/blue
-
Application:
-
Waste Water Treatment
-
Type:
-
clamp
-
Function:
-
Producing Fresh Water
-
Capacity:
-
2-8m3/h/pc
-
Package:
-
carton
-
After-sales Service Provided:
-
Video Technical Support Online Support
-
Packing:
-
Standard Exportation Package
Quick Details
-
Core Components:
-
Rubber
-
Place of Origin:
-
Jiangsu, China
-
Weight (KG):
-
1.5 kg
-
MOQ:
-
100PCS
-
Material:
-
EPDM ABS
-
Color:
-
Black/white/blue
-
Application:
-
Waste Water Treatment
-
Type:
-
clamp
-
Function:
-
Producing Fresh Water
-
Capacity:
-
2-8m3/h/pc
-
Package:
-
carton
-
After-sales Service Provided:
-
Video Technical Support Online Support
-
Packing:
-
Standard Exportation Package

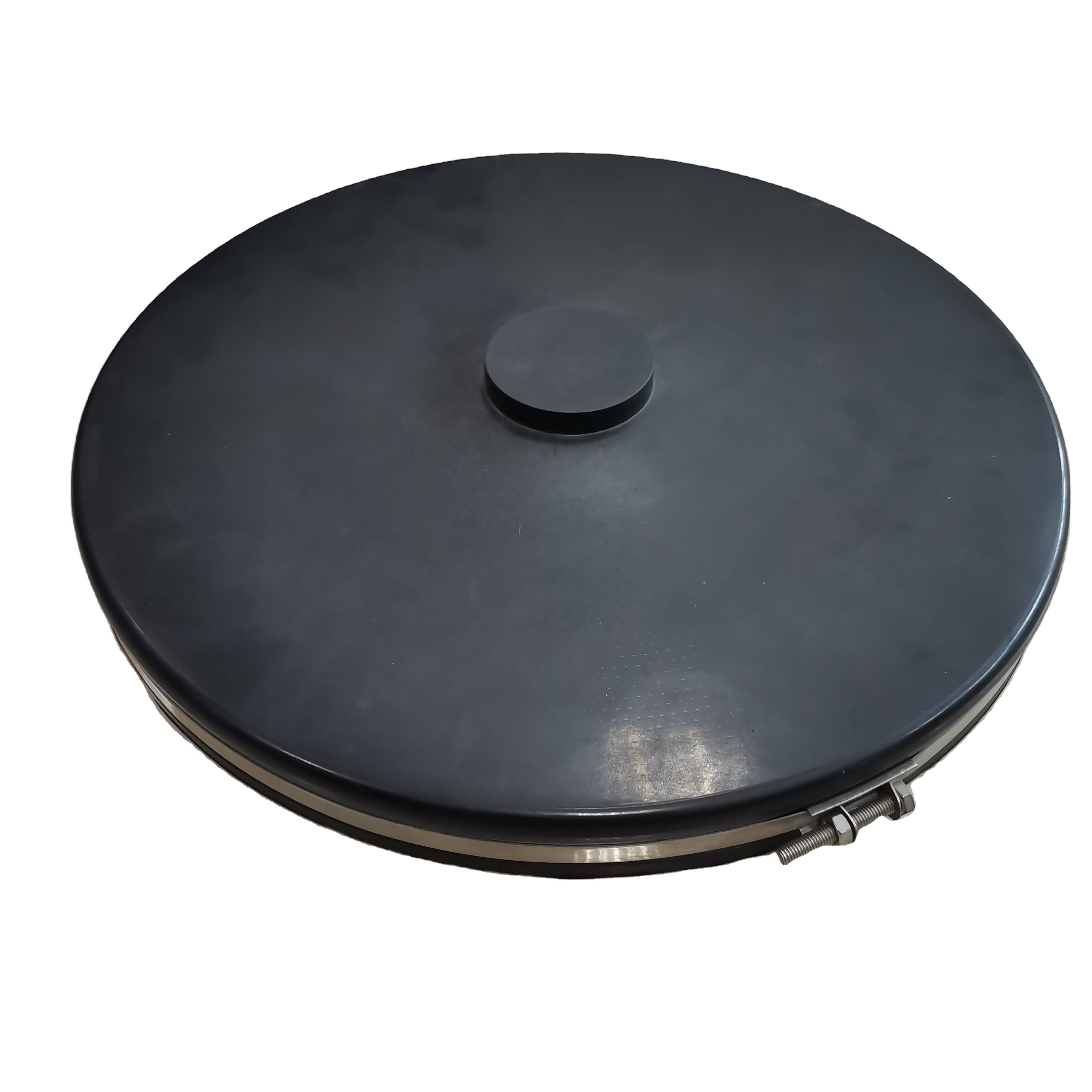

1.Product Description :
Type mode:Clamp type
EPDM membrane
ABS body
Saddle could be matched ,just for 90mm air pipe
Specification normal size :316mm
Different requirements could be according to clients.
price pls contact with us .
2.Product technical parameter sheet :
|
Item |
Φ215mm |
Φ260mm
|
Φ300mm
|
|
Working air flow (m 3 /h) |
1.5-3 |
2-5 |
2-8 |
|
Designed air flow(m 3 /h) |
3 |
4 |
5 |
|
Service area (m 2 /piece) |
0.25-0.45 |
0.35-0.65 |
0.45-0.75 |
|
Oxygen utilization ratio (%) |
>30 |
>30 |
>30 |
|
Oxygenate capability (kgO 2 /h) |
0.13-0.35 |
0.18-0.45 |
0.25-0.5 |
|
Water submerged depth(m) |
4-8 |
4-8 |
4-8 |
|
Theoretic dynamic efficency(kgO 2 /kw.h) |
6.5 |
6.5 |
6.5 |
|
Drag loss (pa) |
<3000 |
<3000 |
<3000 |
3. More pictures :
4.Application :
Our products are mainly applied in wastewater treatment of city planning, textile printing , pharmacy, petrochemical engineering ,charking ,process hides, make mine and aquiculture .Now we are the largest manufacturer in China .
5.Project show:
