Yard bridge container crane operatopm simulator

Product Introduction

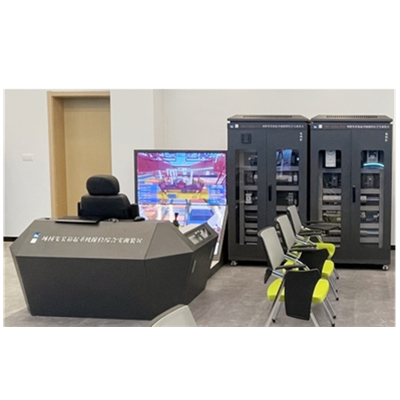

Yard Bridge Container Crane Operation Training Equipment The device combines the operation control of large port crane with the electrical fault by means of 3D virtual simulation. It is a multi-functional training device of "operation and inspection in one". It realize the teaching practice training and assessment of driving training, remote control and electrical maintenance and troubleshooting of shore bridge container crane. Improve the students' comprehensive ability of electrical troubleshooting and operation skills, adaptability to the actual work position in the port, and technical skill level of port equipment operation and maintenance.

Product characteristics

Operation and inspection in one

The multi-functional training device which integrates the operation and electrical troubleshooting of Yard Bridge Container Crane, it adopts the way that combination of 3D virtual simulation and the electrical real object, the virtual picture can be linked with the real electrical equipment;

Close to production

Operation part: Operation linkage table, remote control table, operation handle, seat, etc. are all made of real originals. Mechanism cabinet and power cabinet, cabinet design is based on the real electrical circuit diagram of the yard bridge equipment simulation design. Give students more real and comprehensive feeling.

The virtual interface is derived from the actual environment simulation

Equipment and scenes are 3D modeled 1:1 according to the real work site, which virtually reflects the real environment and simulates the real work flow on site. The operator station can be operated by the operator lever, using virtual simulation technology combined with dual screen immersive imaging display, visual effects and spatial feeling just be almost seems as the actual job site.

Operation Function

Single operation – Training of basic action

The single operation is mainly the single movement operation training of 4 actions, such as gantry movement, trolley movement, lifting device, spreader rotation, etc., which is the most basic movement exercise of yard bridge container crane;

Linkage operation - Training of operation improvement Linkage operation includes training of two actions linkage and three actions collective linkage, mainly is linkage of big cart and small cart, linkage of big cart and lifting, linkage of small cart and lifting, linkage of big cart, small cart and lifting, it is suitable for students improvement practice after familiar with the equipment;

Working operation - job post operation training

Working operations includes real simulation of yard bridge container crane on-site working: pick up operation, collecting operation, loading operation and unloading operation, through the virtual field environment, realistic simulation of container (20 feet, 40 feet) operation process.
