Quick Details
-
Voltage:
-
0
-
Dimension(L*W*H):
-
1360*1360*5230mm
-
Weight:
-
800 KG
-
Feeding size:
-
0.3-0.037mm
-
Outer Diameter:
-
1200mm
-
Keywords:
-
Spiral Separator
-
Name:
-
Spiral Separator
-
Screw Picth:
-
900, 720,540mm
-
Materials:
-
Fiberglass
-
Separator:
-
Gravity Separator
-
Color:
-
as your request
-
Material:
-
Fiberglass
-
Usage:
-
Mining Separation
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Certification:
-
ISO CE
Quick Details
-
Production Capacity:
-
4-6tph
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Hengchang Spiral Separator
-
Voltage:
-
0
-
Dimension(L*W*H):
-
1360*1360*5230mm
-
Weight:
-
800 KG
-
Feeding size:
-
0.3-0.037mm
-
Outer Diameter:
-
1200mm
-
Keywords:
-
Spiral Separator
-
Name:
-
Spiral Separator
-
Screw Picth:
-
900, 720,540mm
-
Materials:
-
Fiberglass
-
Separator:
-
Gravity Separator
-
Color:
-
as your request
-
Material:
-
Fiberglass
-
Usage:
-
Mining Separation
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Certification:
-
ISO CE
BLL-1200 Fiberglass Gravity Gold Spiral Chute, Spiral Separator,Mineral Processing Concentrator
Hengchang machinery
Spiral Separator
can be used for many minerals separating, such as gold, copper, tungsten, tin, tantalum, coltan, chrome, zinc ore and some other minerals. When you find us, you find one best mining machinery manufacturer.
Spiral Separator
Introduction:
Spiral Separator is also called fiberglass spiral separator or spiral chute separator, is the best equipment in mining and ore dressing industries, which is often applied to sort materials with size 0.3 - 0.02 mm, such as ilmenite, chromite, pyrite, zircon, rutile, monazite, phosphate, tungsten ore, tin, tantalum, niobium ore and other non-ferrous metals, precious metals and non-metallic minerals.
It can easily adopt to different raw material size, density, ore grade and feed volume. Spiral chute is suitable for treatment of 0.6-0.03mm lode and placer, but high mud content is bad for separation. At present, spiral chute has been widely used in the treatment of iron ore, tungsten, tin ore, niobium tantalum ore, coastal and riverside placer and gold ore.
Spiral Separator Working Principle:
Spiral Separator is working under the the force of water flow, gravity, inertial centrifuge and friction. Slurry is pumped to the top of the spiral , and it enters a feed distributor that evenly distributes the feed to each spiral concentrator. The design and shape of the spiral make it work, when combined with gravitational acceleration. As the slurry travels the spiraling path down the spiral, mineral grains settle and start sorting according to size, density and to a lesser extend shape. Low density particles are carried with the bulk of the water towards the outside of the spiral , while particles with the greatest density migrate towards the inside of the spiral.
Spiral Separator Applications:
Spiral Separator is a gravity equipment. With the water, action of gravity friction force, minerals would be separated by its gravity difference. Then we could get heavy, middling and light products.It is made of the fiberglass lined with wear-resistant polyurethane and corundum cover; the advantages are light, moisture proof, anti-rust, wear proof,anti corrosion and no noise, properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new high effective equipment.
Spiral Separator is also called fiberglass spiral separator or spiral chute separator, is the best equipment in mining and ore dressing industries, which is often applied to sort materials with size 0.3 - 0.02 mm, such as ilmenite, chromite, pyrite, zircon, rutile, monazite, phosphate, tungsten ore, tin, tantalum, niobium ore and other non-ferrous metals, precious metals and non-metallic minerals.
It can easily adopt to different raw material size, density, ore grade and feed volume. Spiral chute is suitable for treatment of 0.6-0.03mm lode and placer, but high mud content is bad for separation. At present, spiral chute has been widely used in the treatment of iron ore, tungsten, tin ore, niobium tantalum ore, coastal and riverside placer and gold ore.
Spiral Separator Working Principle:
Spiral Separator is working under the the force of water flow, gravity, inertial centrifuge and friction. Slurry is pumped to the top of the spiral , and it enters a feed distributor that evenly distributes the feed to each spiral concentrator. The design and shape of the spiral make it work, when combined with gravitational acceleration. As the slurry travels the spiraling path down the spiral, mineral grains settle and start sorting according to size, density and to a lesser extend shape. Low density particles are carried with the bulk of the water towards the outside of the spiral , while particles with the greatest density migrate towards the inside of the spiral.
Spiral Separator Applications:
Spiral Separator is a gravity equipment. With the water, action of gravity friction force, minerals would be separated by its gravity difference. Then we could get heavy, middling and light products.It is made of the fiberglass lined with wear-resistant polyurethane and corundum cover; the advantages are light, moisture proof, anti-rust, wear proof,anti corrosion and no noise, properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new high effective equipment.
Inner surface without riffiles/ grooves
For Separate the Fine particles and Slurry ore.
Inner surface with riffles/grooves
is to separator the ore with Coarse particles
|
Model
|
BLL-1500
|
BLL-1200
|
BLL-900
|
BLL-600
|
BLL-400
|
|
Outside Diameter
(mm)
|
1500
|
1200
|
900
|
600
|
400
|
|
Screw Pitch
(mm)
|
900, 675
|
900, 720, 540
|
675, 540, 405
|
450, 360, 270
|
240, 180
|
|
Pitch Diameter Ratio
|
0.48, 0.36
|
0.75, 0.6, 0.45
|
0.75, 0.6, 0.45
|
0.75, 0.6, 0.45
|
0.6, 0.45
|
|
Lateral slope
(degree)
|
9°
|
9°
|
9°
|
9°
|
9°
|
|
Max. Screw Numbers
|
4
|
4
|
4
|
2
|
2
|
|
Feed Size (mm)
|
0.8 ~0.037
|
0.3~0.03
|
0.3 ~0.03
|
0.2~0.02
|
0.2 ~0.02
|
|
Feed Density (%)
|
30 ~55
|
25 ~55
|
25 ~55
|
25 ~55
|
25 ~55
|
|
Capacity (t/h)
|
6~8
|
4~6
|
2~3
|
0.8~1.2
|
0.15~0.2
|
|
Length (mm)
|
1600
|
1360
|
1060
|
700
|
460
|
|
Width (mm)
|
1600
|
1360
|
1060
|
700
|
460
|
|
Height (mm)
|
5300
|
5230
|
4000
|
2600
|
1500
|
|
Weight (kg)
|
850/800
|
700/650/600
|
450/400/350
|
150/120/100
|
50
|

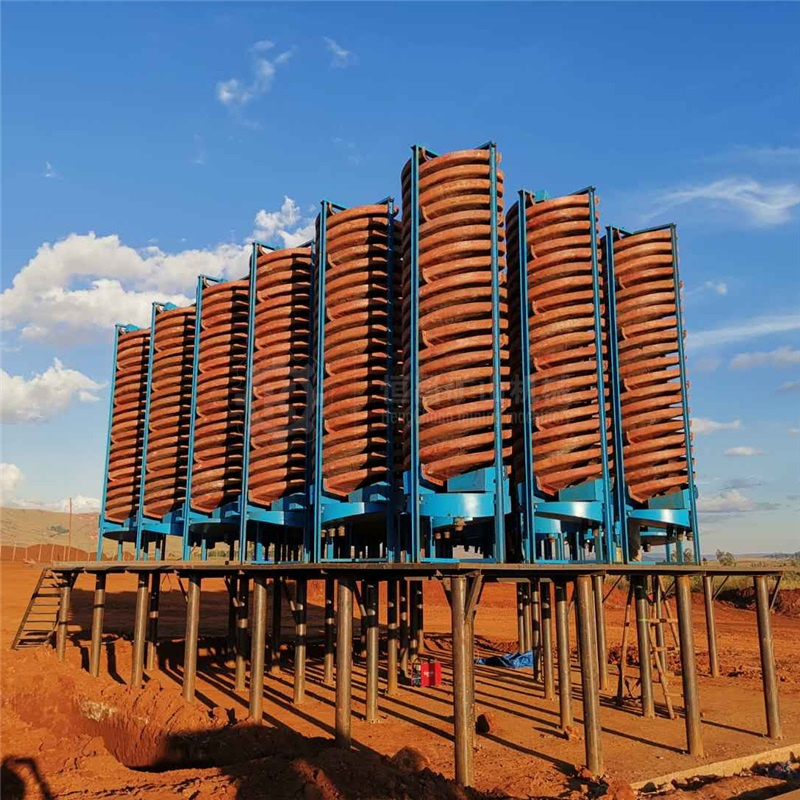

Spiral Separator
In Zimbabwe
Used in alluvial gold processing plant
Spiral Separator
In South Africa
Used in chrome ore separation
Spiral Separator
In Indonesia
Used in black sand separation plant
Spiral Separator
In India
Used in tin ore concentration plant
Spiral Separator
In
Myanmar
Used in Tungsten ore separator line
Spiral Separator
In
Pakistan
Used in iron ore gold separator processing
Spiral Separator
In
Puerto Rico
Used in coal separator plant
Spiral Separator
In Australia
used in beach sand gold separator
