Quick Details
-
Product Name:
-

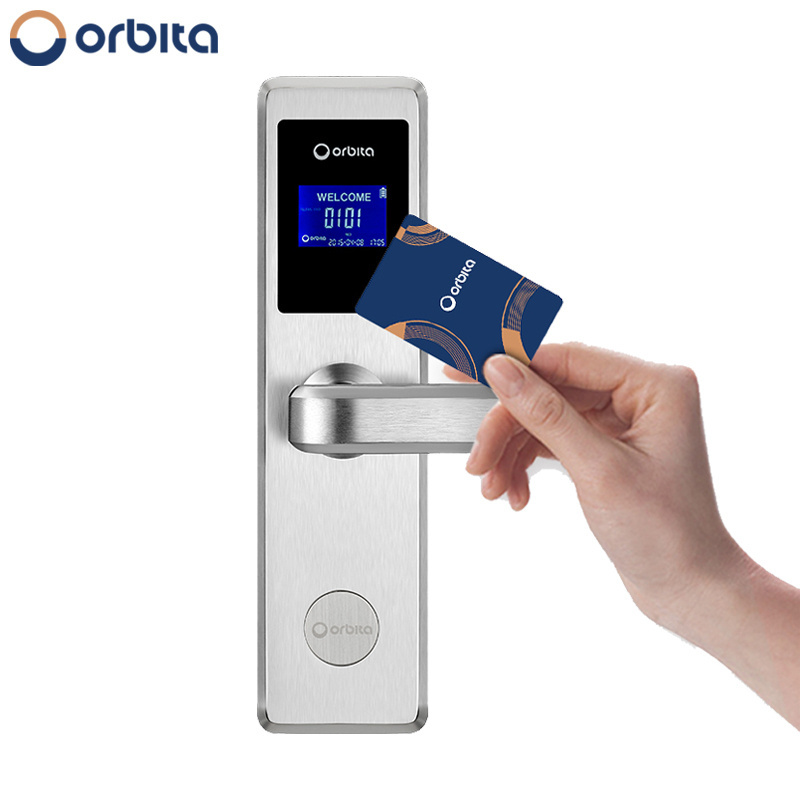

Rfid card key hotel lock system, security handle hotel door lock
-
Material:
-
304 stainless steel,moisture proof, fire retardant
-
Certificate:
-
CE,FCC,BHMA, Fidelo/Opera,SASO
-
Mortise:
-
ANSI Standard Mortise or Din Standard
-
Card option:
-
13.56MHz Philips M1/I Card or 125 KHz Temic card
-
PMS interface:
-
Free SDK, or Fidelio/Opear Registered Software
-
Size:
-
285mm*74.5mm*13mm
-
Suitable door thickness:
-
32-60 mm
-
Application:
-
star hotel,apartment/flat,residential,motel,dormitory,cruise ship
-
Warranty:
-
2 years
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ORBITA
-
Model Number:
-
E4031A
-
Product Name:
-
Rfid card key hotel lock system, security handle hotel door lock
-
Material:
-
304 stainless steel,moisture proof, fire retardant
-
Certificate:
-
CE,FCC,BHMA, Fidelo/Opera,SASO
-
Mortise:
-
ANSI Standard Mortise or Din Standard
-
Card option:
-
13.56MHz Philips M1/I Card or 125 KHz Temic card
-
PMS interface:
-
Free SDK, or Fidelio/Opear Registered Software
-
Size:
-
285mm*74.5mm*13mm
-
Suitable door thickness:
-
32-60 mm
-
Application:
-
star hotel,apartment/flat,residential,motel,dormitory,cruise ship
-
Warranty:
-
2 years
Best selling rfid card key hotel lock system, stainless steel electrical panel security handle hotel door lock
| External Panel Dimension | L285mm×W74.5mm×H13mm |
| Application | Hotel, Resort, Apartment, Dormitory, Guesthouse etc. |
| Material | 304 Stainless Steel, 2.0mm. Brushed |
| Mortise | ANSI Standard Mortise |
| Keycard Type | MI 1K (S50) |
| Power Supply | 4pcs AA Alkaline Batteries, 12-18 months duration |
| Working Humidity | 20%-90%RH |
| Working Temperature | -50℃-60℃ |
| Opening Records | 250pcs saving in lock, 210pcs can be downloaded and read |
| Door Thickness Range | 32-55mm |
| Color Optional | Silver, Gold (PVD) |
| Certificates | CE, FCC, ANSI/BHMA A156 UL, Fidelio/OPERA |
| Key Features | LED Screen Display, Elegant Design, Waterproof,High Sensitivity (proximity response in second with 3cm distance) |
|
Technical Parameters |
|
|
Material: |
Stainless Steel,Moisture Proof,Fire Retardant |
|
Working Voltage: |
DC6V OR 4 AAAlkaline batteries |
|
Power Consumption: |
Static Load<10Ua,Dynamic Load 100~150Ma |
|
Working Environment: |
Working Humidity:20%-90%, working temperature:-50℃-60℃ |
|
Key card Option: |
RF Temic card,M1 card,Ultra-light card |
|
Functional Characteristics |
|
|
Interface with most of the PMS system,Fidelio/Opera registered! |
|
|
CE&FCC Certified! |
|
|
Brushed stainless steel color lasts more than 10 years. |
|
|
ANSI mortise,European Standard mortise 72mm/85mm hole distance.Inside Dead Bolt,Inside handle retracts latches and deadbolt. |
|
|
RF Temic card,M1 card,Ultra-light card are optional,compatible with its own energy saver |
|
|
Override Computer Key for Emergency use,individual or master cylinder. |
|
|
Power:4 PCS#5 AA Alkaline batteries:18 months’ duration. |
|
|
Low battery voltage warning.(Lower than 3.5V) |
|
|
Self Error detecting by LED and “beep” |
|
|
Improper lock warning. |
|
|
Wirelss satnd alone lock realizes 95% of on line lock function. |
|
|
Passage function available |
|
How ORBITA stainless steel 304 LCD screen hotel room key card door lock works?
1.Hotel card lock (Installed on the hotel room door)
2.PC(usually located on the reception desk of hotel lobby)
3.Hotel lock management software(Download to PC,setting the software system )
4.Encoder (Connect to PC,Issue the cards)
5.Cards (Open doors)
We will make the lock according to your door thickness and door open way!
