Technical parameters
|
|
|
|
Type no.
|

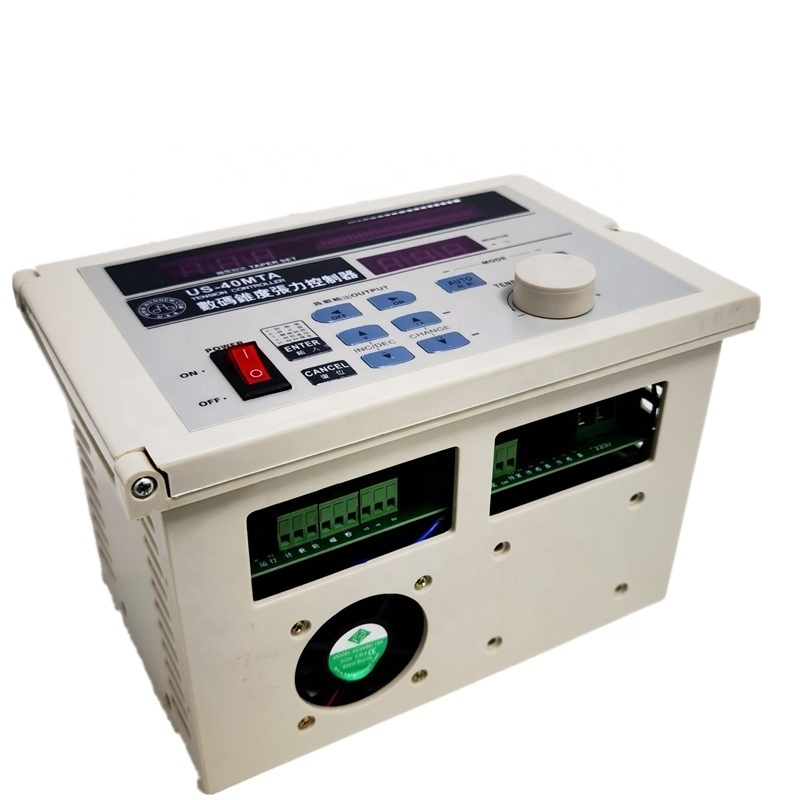

US-40MTA-D/US-40MTA
|
|
|
The power supply voltage
|
Single phase AC220V，50-60HZ （AC110V，60HZ）
|
|
|
voltage output
|
DC 0-24V，4A（MAX） （DC 0-10V，DC4-20mA）
|
|
|
output power
|
120W
|
|
|
Station control
|
With memory type dual station 0-30 seconds free to set the smooth conversion process, external dual conversion and external reset
operation function |
|
|
display usage
|
Digital display
|
|
|
The output load
|
With 0-24v double station output (for magnetic powder brake and clutch), and 0-10 double station output (for frequency converter,
servo controller, torque motor controller, dc controller, etc.) |
|
|
Way to work
|
Winding and unwinding can be arbitrarily set by initial value and termination value. When the set termination value is higher than
the initial value, it is winding mode; otherwise, when the set termination value is lower than the initial value, it is winding mode |
|
|
Set the form
|
Display in menu form, set by digital potentiometer or function key
|
|
|
Tension way
|
Automatic taper tension control for winding and unwinding
|
|
|
Heavy volume
|
About 3kg/5kg
|
|
|
way to install
|
Bed surface table wall surface embedded
|
|
|
usage occasion
|
1, winding, winding taper tension system magnetic powder brake control
|
|
|
|
2, winding, winding taper tension system frequency converter, torque motor controller
|
|
|
auxiliary product
|
New-s2 counting wheel
|
|
|
Technical parameters
|
|
|
Model
|
US-30MTA
|
|
Power supply voltage
|
Single-phase AC220V/110V 50/60HZ
|
|
Voltage output
|
120VA DCO—24V 4A（HAX） DCOTOV
|
|
Display mode
|
Digital display/Chinese and English LCD display
|
|
Weight
|
About 3kg/5kg
|
|
Setting form
|
Automatic, manual by digital potentiometer (or up and down key) double function menu setting, press reset key to quickly enter the
initial preset value. |
|
Tension mode
|
Winding, unwinding constant tension automatic control
Installation method: desktop desktop wall embedded |
|
Installation
|
Desktop /Wall embedded
|
|
Zeroing function
|
With 2 sensors corresponding zeroing function, automatic zeroing during menu setting
|
|
Station control
|
With 2 sensors corresponding zeroing function, automatic zeroing during menu setting
|
|
Technical parameters
|
|
|
Model
|
US-80MTA
|
|
Power supply voltage
|
Single-phase AC220V/110V, 50/60Hz 130W.
|
|
Voltage output
|
DC 0-24V，4A（MAX） DC 0-10V，DC4-20mA.
|
|
Tension control range
|
0-2000Kg.
|
|
Tension resolution
|
0.1Kg and 1kg
|
|
Display mode
|
Digital display/Chinese and English LCD display
|
|
Display lamp
|
Kgf/N/% unit, automatic/manual, power supply.
|
|
Configuration
|
Tension sensor SH-TD,Speed detectorNEW-S2
|
|
Weight
|
About 3kg/5kg
|
|
Setting form
|
Automatic, manual by digital potentiometer (or up and down key) double function menu setting, press reset key to quickly enter the
initial preset value. |
|
Tension mode
|
Winding, unwinding constant tension automatic control
Installation method: desktop desktop wall embedded |
|
Installation
|
Desktop /Wall embedded
|
|
Zeroing function
|
With 2 sensors corresponding zeroing function, automatic zeroing during menu setting
|
|
Station control
|
it has the function of smoothly switching between two stations within 30 seconds, the initial value of new station can be preset,
and the current value of the original station can be remembered. |
