Quick Details
-
Dimension(L*W*H):
-
4200*1680*2170mm
-
Weight:
-
5000 KG
-
Drilling Depth:
-
Max.3m
-
pushing force:
-
135KN
-
Max Drilling speed:
-
40m/min
-
drilling pipe diameter*length:
-
52/60*1.8m
-
Maximum angle of penetration:
-
18degree
-
Max rotary speed:
-
230r/min
-
Max flow of mud pump:
-
100L/min
-
diesel engine:
-
Famous Brand
-
Key words:
-
horizontal directional drilling machine
-
Application:
-
Pipelaying
-
Feature:
-
Environmentally friendly
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HW
-
Voltage:
-
NO
-
Dimension(L*W*H):
-
4200*1680*2170mm
-
Weight:
-
5000 KG
-
Drilling Depth:
-
Max.3m
-
pushing force:
-
135KN
-
Max Drilling speed:
-
40m/min
-
drilling pipe diameter*length:
-
52/60*1.8m
-
Maximum angle of penetration:
-
18degree
-
Max rotary speed:
-
230r/min
-
Max flow of mud pump:
-
100L/min
-
diesel engine:
-
Famous Brand
-
Key words:
-
horizontal directional drilling machine
-
Application:
-
Pipelaying
-
Feature:
-
Environmentally friendly
Note：
The listing price just deposit price and without freight fee,please kindly note that,if you want to know the specific price,please contact us or send us inquiry,then we can give you detail quotation list
Product Description

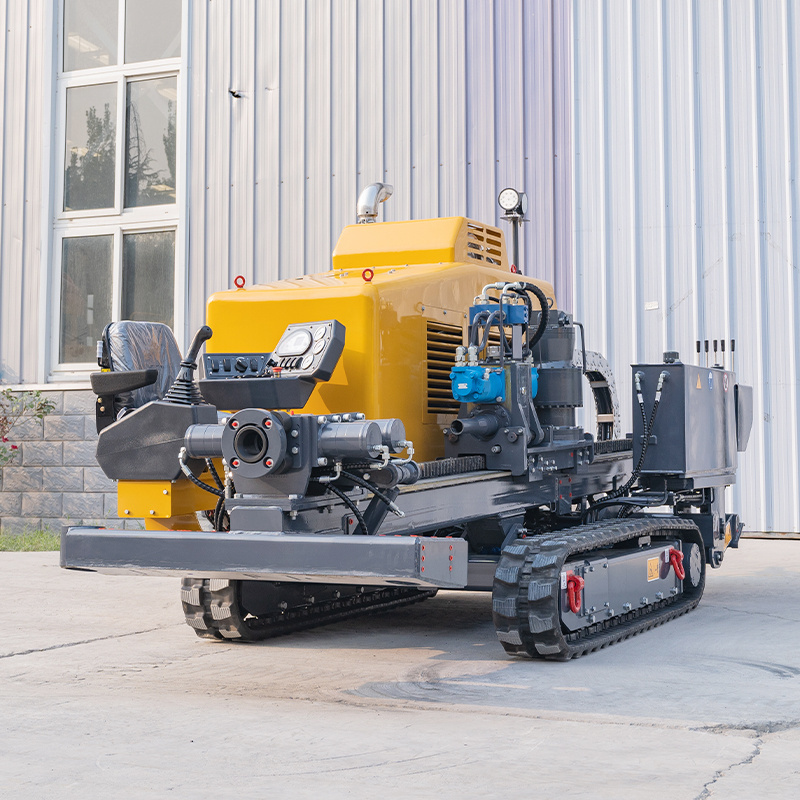

Urban build HDD machine trenchless pipe pipeline cable laying horizontal directional drilling rig
This kind of h
orizontal directional drilling machine
is generally suitable for steel pipes and PE pipes with diameters of φ300~φ2000mm. It is suitable for a variety of soil conditions from soft soil to hard rock, and has broad application prospects.
Drilling rig composition:
1.
Drilling rig system
2.
steering system
3.Mud pump system
4.
Drilling tools and auxiliary tools
|
Model
|
HWF130
|
|
pushing force
|
7.9
|
|
Max Drilling speed
|
40m/min
|
|
drilling pipe diameter*length
|
52/60*1.8m
|
|
Maximum angle of penetration
|
18degree
|
|
Max flow of mud pump
|
100L/min
|
|
Dimension(L*W*H)
|
4200*1680*2170mm
|
|
weight
|
5000kg
|
Why choose this drilling rig？
1* Directional drilling construction will not hinder traffic, will not damage green spaces and vegetation, and will not affect the normal life and work order of shops, hospitals, schools and residents. It solves the interference of traditional excavation construction on residents' lives, traffic and environment. , damage and adverse effects to the foundations of surrounding buildings.
2.* Modern crossing equipment has high crossing accuracy and is easy to adjust the laying direction and burial depth. The arc-shaped laying distance of the pipeline is long, which can fully meet the design requirements for burial depth, and can allow the pipeline to bypass underground obstacles.
3.* The burial depth of urban pipe networks is generally less than three meters. When crossing rivers, the burial depth is generally 9-18 meters under the river bed. Therefore, horizontal directional drilling rigs are used to cross, which has no impact on the surrounding environment, does not damage the landform and environment, and adapts to various environmental protection measures.
2.* Modern crossing equipment has high crossing accuracy and is easy to adjust the laying direction and burial depth. The arc-shaped laying distance of the pipeline is long, which can fully meet the design requirements for burial depth, and can allow the pipeline to bypass underground obstacles.
3.* The burial depth of urban pipe networks is generally less than three meters. When crossing rivers, the burial depth is generally 9-18 meters under the river bed. Therefore, horizontal directional drilling rigs are used to cross, which has no impact on the surrounding environment, does not damage the landform and environment, and adapts to various environmental protection measures.
Detailed Images
Application
Application of h orizontal directional drilling machine
Horizontal directional drilling machine is a construction machine that lays a variety of underground public facilities (pipes,cables, etc.) without excavating the ground surface. It is widely used in flexible pipelines such as water supply, electricity,telecommunications, natural gas, coal gas, and oil. During paving construction, it is suitable for sandy soil, clay, etc.
