Quick Details
-
Brand Name:
-
lubanle
-
Voltage:
-
220V/380V/50HZ
-
Dimension(L*W*H):
-
1610/1820*660/760*870mm
-
Weight (KG):
-
446 KG
-
Power (kW):
-
2.2KW/3kw
-
Product Name:
-
Combination Machine
-
Function:
-
Wood Surface Planing
-
Feeding speed:
-
7m/min
-
Spindle speed:
-
4800r/min
-
Max working width:
-
300 mm/400 mm
-
Working Thickness:
-
5-200mm
-
Max cutting depth of thickness planer:
-
5mm
-
Max cutting depth of joint planer:
-
4mm
-
Motor power:
-
2.2kw/3kw
-
Max drilling depth:
-
95mm
Quick Details
-
Max.Planing Depth(mm):
-
5 mm
-
Max.Planing Width(mm):
-
300/400mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
lubanle
-
Voltage:
-
220V/380V/50HZ
-
Dimension(L*W*H):
-
1610/1820*660/760*870mm
-
Weight (KG):
-
446 KG
-
Power (kW):
-
2.2KW/3kw
-
Product Name:
-
Combination Machine
-
Function:
-
Wood Surface Planing
-
Feeding speed:
-
7m/min
-
Spindle speed:
-
4800r/min
-
Max working width:
-
300 mm/400 mm
-
Working Thickness:
-
5-200mm
-
Max cutting depth of thickness planer:
-
5mm
-
Max cutting depth of joint planer:
-
4mm
-
Motor power:
-
2.2kw/3kw
-
Max drilling depth:
-
95mm
Product Overview

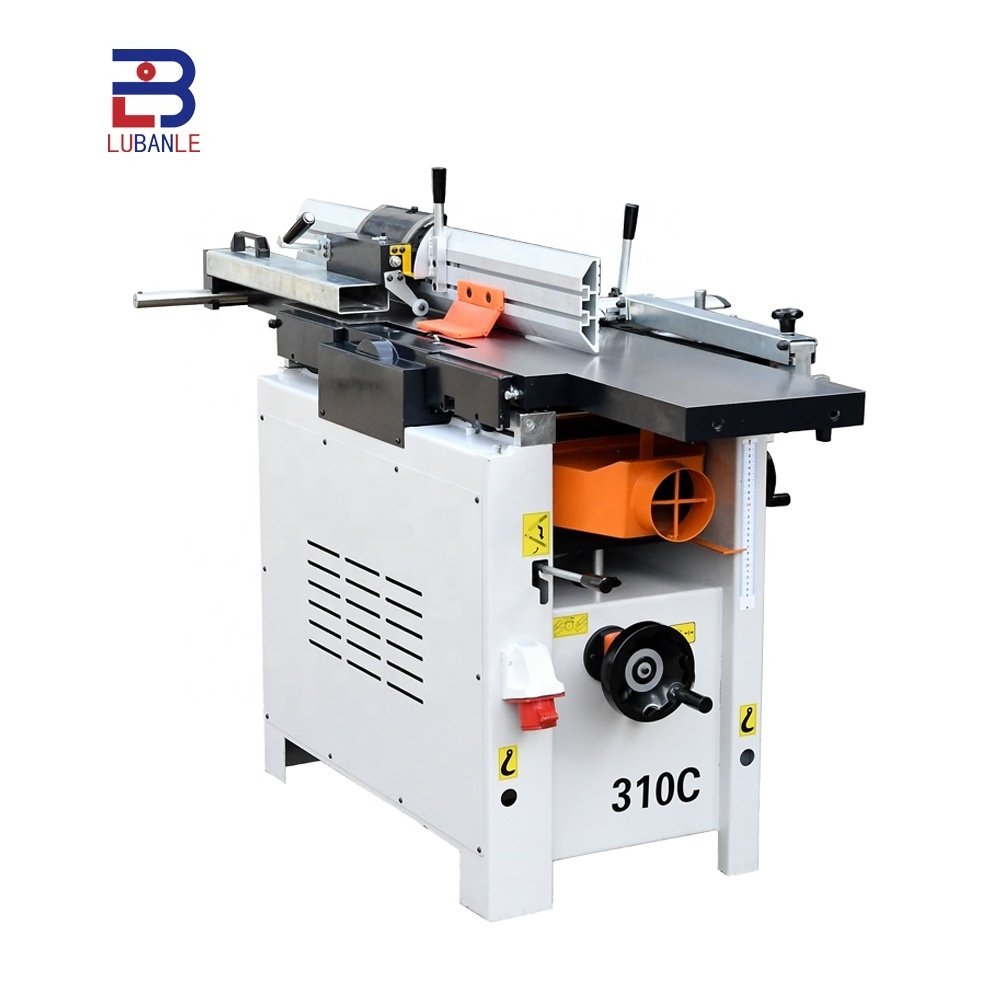

310C/410C
Woodworking combination machine
|
Item
|
310C
|
410C
|
|
Processing width
|
300mm
|
400mm
|
|
Processing thickness
|
5-200mm
|
5-200mm
|
|
Processing length
|
≥200mm
|
≥200mm
|
|
Thickness planer max cutting
thickness
|
5mm
|
5mm
|
|
Joint planer max cutting thickness
|
4mm
|
4mm
|
|
Number of blades
|
4
|
7
|
|
Drill bench size
|
365*160mm
|
365*160mm
|
|
Bit clamping range
|
3-16mm
|
3-16mm
|
|
Max drilling depth
|
95mm
|
95mm
|
|
Max drilling width
|
140mm
|
140mm
|
|
Feeding speed
|
7m/min
|
7m/min
|
|
Motor power
|
2.2KW
|
3KW
|
|
Machine size
|
1610*660*870mm
|
1820*760*870mm
|
|
Voltage
|
220V/380V/50HZ
|
220V/380V/50HZ
|
|
Weight
|
370kg
|
446kg
|
