- Product Details
- {{item.text}}
Quick Details
-
Operating System:
-
ANDROID 10
-
Type:
-
Tablet PC
-
Weight:
-
680g
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GENZO
-
Model Number:
-
GZ-Q703
-
Product name:
-

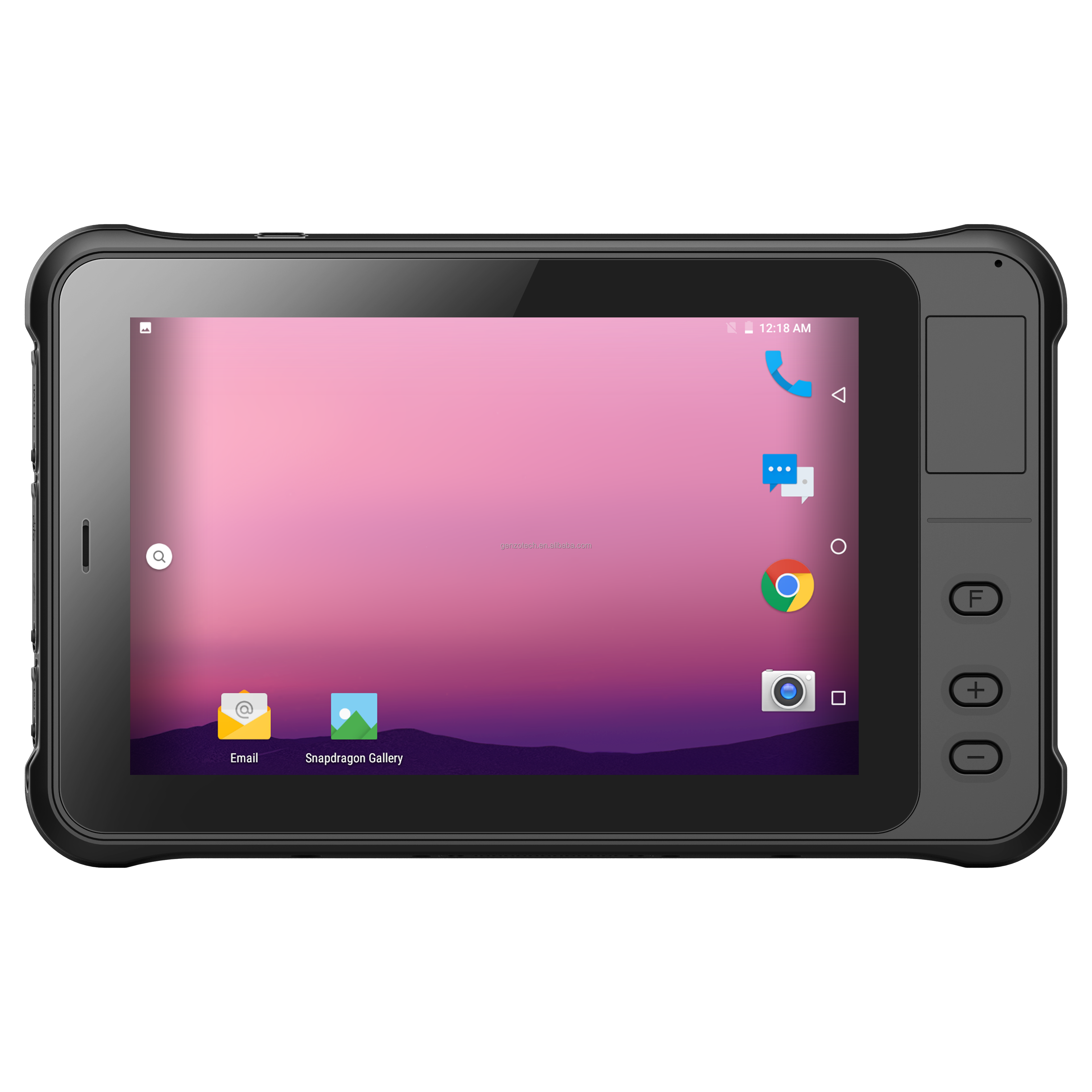

Rugged Tablet 7 inch
-
CPU:
-
Qualcom-m MSM8953(8core)
-
RAM/ROM:
-
4GB+64GB
-
Camera:
-
Front 5.0MP /Rear 13.0MP
-
4G LTE:
-
CMCC 4M
-
GPS:
-
Support:GPS+Glonas
-
Wifi:
-
802.11 a/b/g/n (2.4G/5.0G dual band wifi)
-
Battery:
-
3.7V/7500mAh
-
Barcode:
-
1D/2D Barcode Scanner
Quick Details
-
Screen Size:
-
7"
-
Memory Capacity:
-
4GB
-
Display resolution:
-
1280x800
-
Operating System:
-
ANDROID 10
-
Type:
-
Tablet PC
-
Weight:
-
680g
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GENZO
-
Model Number:
-
GZ-Q703
-
Product name:
-
Rugged Tablet 7 inch
-
CPU:
-
Qualcom-m MSM8953(8core)
-
RAM/ROM:
-
4GB+64GB
-
Camera:
-
Front 5.0MP /Rear 13.0MP
-
4G LTE:
-
CMCC 4M
-
GPS:
-
Support:GPS+Glonas
-
Wifi:
-
802.11 a/b/g/n (2.4G/5.0G dual band wifi)
-
Battery:
-
3.7V/7500mAh
-
Barcode:
-
1D/2D Barcode Scanner
10 Years Old Store Upgraded & Reopened
Product Description
|
Hardware
|
|
|
|
CPU
|
Qualcom-m MSM8953（8core） 2.0 GHz
|
|
|
GPU
|
Adreno 506 1920 × 1200 @ 60 fps
|
|
|
RAM/ROM
|
4GB LPDDR3/ 64GB Emmc
|
|
|
External Memory
|
Support TF*1,MAX 128GB
|
|
|
LCD Display
|
7“ 16:10,800*1280 IPS LCD,
1000 nits
|
|
|
Touch Panel
|
5 points capacity TP, G+G, hardness over 7H, scratch resistant,
TP thickness:1.1mm, COF, support touch with wearing gloves and wet finger
|
|
|
Camera
|
Front:5.0MP ,Rear: 13.0MP Auto focus with flash
|
|
|
Battery
|
3.7V/7500mAh. Built in polymer lithium ion battery
|
|
|
Endurance
|
6-8 hours ( 50% volume sounds, 50% brightness, 1080P HD video display by default )
|
|
|
Speaker
|
Embedded 8Ω/0.8W waterproof speakerx 1
|
|
|
Data Collection & Networking
|
|
|
|
Barcode Scanner
|
1D Optional Honeywell N4313; 2D Optional Honeywell N3680/4680
|
|
|
NFC
|
Built-in
13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092
|
|
|
ID Module
|
Optional
Support reading the 2nd，the 3rd ID card information and the fingerprint information built-in.
|
|
|
Fingerprint
|
Optional
The fingerprint module authenticated by Chinese Ministry of public security, support the collection of resident fingerprint which built in their ID card.
|
|
|
UHF
|
Optional
M-550 UHF RFID slim all-in-one module
|
|
|
BT
|
BT4.2 (BLE) class1 transmission distance：10m
|
|
|
WIFI
|
WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.0G dual band WIFI
|
|
|
4G
|
CMCC 4M： LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41
WCDMA 1/2/5/8 GSM 2/3/5/8
|
|
|
GPS
|
Support GPS/glonass; Capture sensitivity: -140 dBm;
Cool Start Time:less 50 seconds,Hot Start Time:less 5 seconds
|
|
|
OS
|
Android 9/10 With GMS
|
|
|
I/O Port & Appearance & Packag
e
|
|
|
|
I/O Port
|
HDMI 1.4a x 1,
Micro USB x 1, SIM Card x 1, TF Card x 1, 12pins Pogo Pin x 1, Φ3.5mm standard earphone jack x 1, Φ3.5mm DC jack x 1 |
|
|
Dimension
|
216.98*133.96*21.4
|
|
|
Weight
|
Device unit: 680g.
|
|
|
Package
|
USB cable/OTG cable/Charger 5V 3A/Packing box（Can be customized logo)
|
|
|
Certificate System & Reliability Design
|
|
|
|
IP67/IP65
|
IP65 Report： Water resistance：IP-X5，Dust resistance：IP-6X
a.Inner Nozzle diameter：6.3mm；
b. water speed：12.5±0.625L/min；
c. Water Pressure：adjust according to water volumn；
d.Central part of water volumn
e.Spray time in surface of panel：about 1min；
f.test time：at least 3min；
g.distance between nozzle and panel surface：2.5～3m.
After test,there is no water leakage in sample.
|
|
|
CE NB
|
YES
|
|
|
MIL-STD-810G
|
YES
|
|
|
Battery
|
UN38.3，MSDS,IEC62133
|
|
|
Drop Height
|
MIL-STD-810G 1.22m drop
|
|
|
Operate Temperature
|
‘-20 °C to 60 °C
|
|
|
Store Temperature
|
’-30 °C to 70 °C
|
|
|
Humidity
|
Humidity: 95% Non-Condensing
|
|
Details Images
Optional Accessories
Vehicle Mount,
Docking Charger,
Leather Cover,
Shoulder strap, Back Strap, Stylus, Car Charger,
TP protective film
Package
Car Charger Optional
TP protective film
Payment & Packing &Shipping
Company Introduction
FAQ
Q :Are you manufacturer?
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID(LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 18 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10 days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 10 years experiences
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID(LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 18 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10 days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 10 years experiences
