Quick Details
-
Outside Diameter:
-
max70mm
-
Wire Feed Speed:
-
0-127m/min
-
Wire Feed Servo Motor:
-
4.4kw
-
Cam Servo Moto:
-
4.4kw
-
Power AC:
-
380V.AC.50HZ
-
Dimensions:
-
1700*1500*1850
-
Machine Weight:
-
1350kg
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
compression spring:
-
CNC
-
Wire Diameter:
-
0.8-3.5mm
-
Outside Diameter:
-
max70mm
-
Wire Feed Speed:
-
0-127m/min
-
Wire Feed Servo Motor:
-
4.4kw
-
Cam Servo Moto:
-
4.4kw
-
Power AC:
-
380V.AC.50HZ
-
Dimensions:
-
1700*1500*1850
-
Machine Weight:
-
1350kg

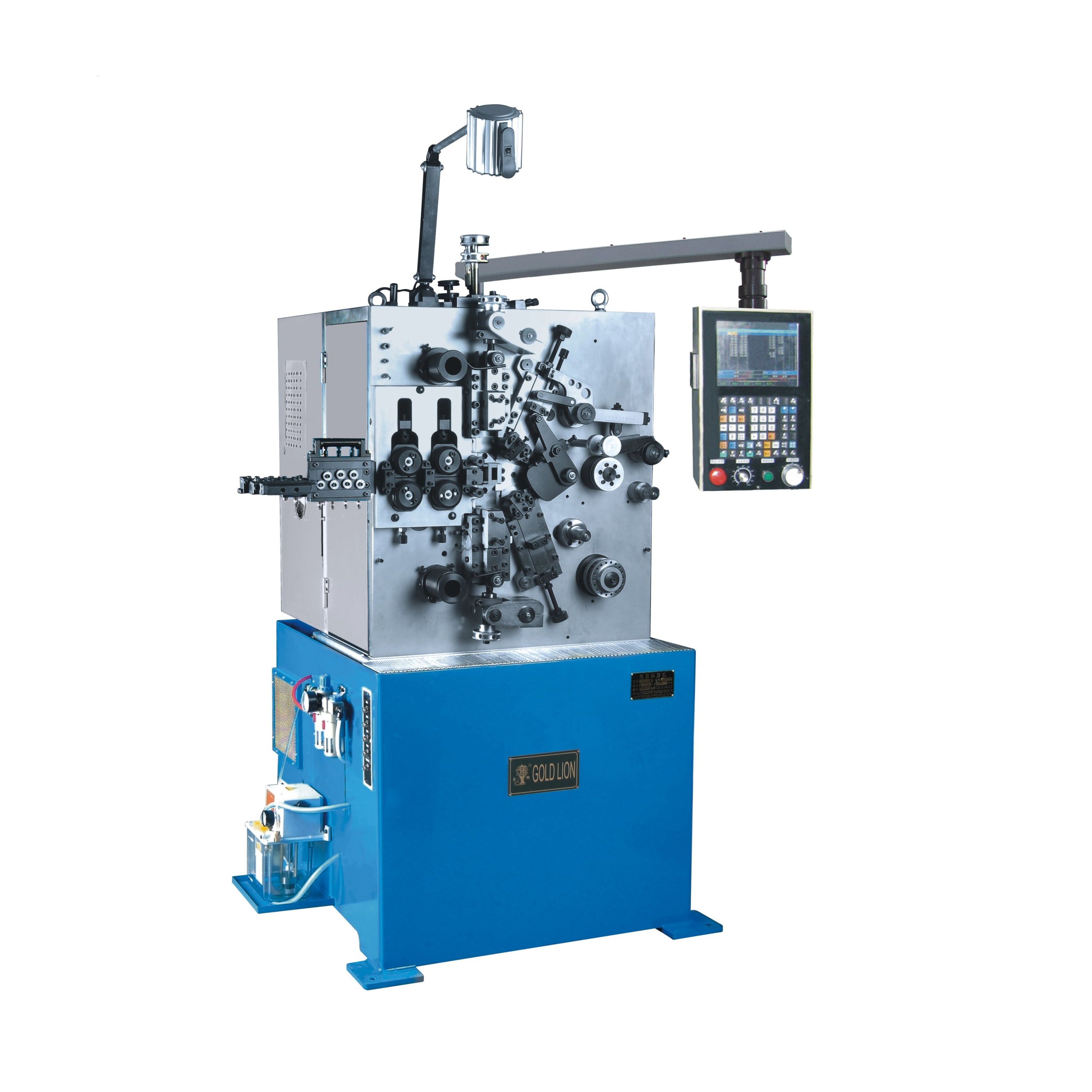

CK335compression spring machine are specially designed for various tension springs with the up-to-date design philosophy. Main technical parameter:
| Model | CK335 |
| wire diameter(mm) | Φ0.8-Φ3.5 |
| Outside diameter(mm) | MaxΦ70 |
| Production rate | Max(30-200)pcs/min |
| Feeding length(mm) | ±0.01±9999.99 |
| Wire feed speed | 0-127m/min |
| Cam setting value | ±0.1°-±359.9° |
| Wire Feed Servo Motor | 4.5KW |
| Cam Servo Motor | 4.5KW |
| Power AC | 380V±10%V50HZ |
| Dimensions(L×W×H)(mm) | 1700×1500×1850 |
| Machine weight | 1350KG |
-
Can you send me some spring samples for checking?
- Sure. Before you place the order, samples can be sent to you for checking. What's more, overseas installation and the consequent training is available.
-
What payment is acceptable?
- Your payment can be made via L/C,D/A,D/P,T/T,Western Union, Paypal. If you have other preference, please negotiate.
| Packaging | In plywood case or according to your request |
| Shipment | Within 4 weeks after receving your deposit |
