Quick Details
-
Model Number:
-
type 1
-
Standard or Nonstandard:
-
Standard
-
Spring:
-
SS304,SS316
-
Face:
-
Car, SiC, TC
-
Seat:
-
Ceramic, SiC, TC
-
Replacement to:
-
John-Crane type 1 seal
-
Speed:
-
≤15m/s
-
Pressure:
-
≤1.4MPa
Quick Details
-
Size:
-
0.5" to 4", 0.5" to 4"
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
JR
-
Model Number:
-
type 1
-
Standard or Nonstandard:
-
Standard
-
Spring:
-
SS304,SS316
-
Face:
-
Car, SiC, TC
-
Seat:
-
Ceramic, SiC, TC
-
Replacement to:
-
John-Crane type 1 seal
-
Speed:
-
≤15m/s
-
Pressure:
-
≤1.4MPa

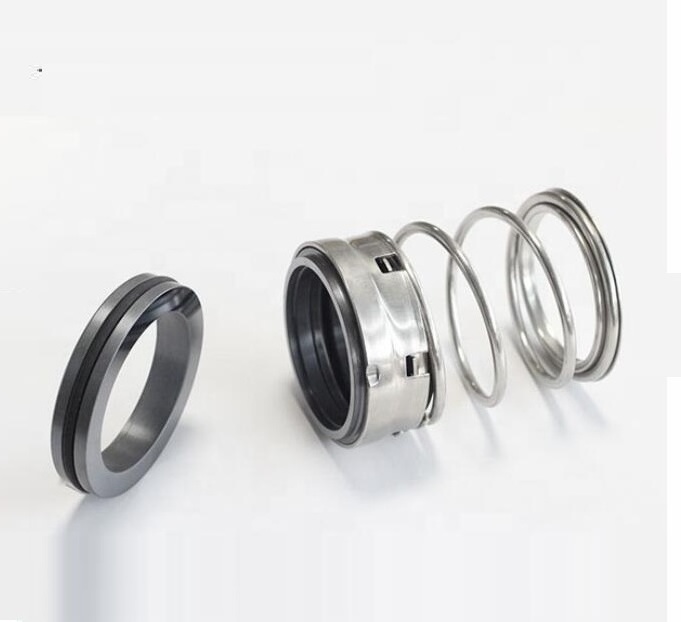

Mechanical Seal Type 1 John Crane Type 1 Seal For Aesseal P05U John Crane Mechanical Seal Type1 Replacement
Operational Conditions:
- Reliable transmission due to special design in the drive band and drive notches.
- Special balancing in the elastomer bellows. design,avaliable in high-pressure application
- Temperature: -20ºC to +120ºC
- Pressure: ≤1.4MPa
- Speed: ≤15m/s
Replacement to:
- Burg-mann MG901/ D1-G55
- Aes-seal P05U seal
- John-Crane type 1 seal
- Flow-serve 51 seal
- US Seal E seal
Materials:
- ROTARY FACES: Carbon Graphite, Silicon Carbide, Tungsten Carbide
- STATIONARY SEATS: Ceramic, Silicon Carbide, Tungsten Carbide, Stainless Steel
- BELLOWS: Buna, V-iton, EP-DM, A-flas, Neoprene
- METAL PARTS: 304 SS standard, 316 SS option available
Performance Capabilities:
|
Temperature
|
-30℃ to 200℃, dependent on the elastomer
|
|
Pressure
|
Up to 14 bar
|
|
Speed
|
Up to 13 m/s
|
|
End play/axial float allowance
|
±0.1mm
|
|
Size
|
0.5" to 4"
|
|
Brand
|
JR
|
|
Face
|
Carbon, SiC, TC
|
|
Seat
|
Ceramic, SiC, TC
|
|
Elastomer
|
NBR, EPDM, V-ITON etc.
|
|
Spring
|
SS304, SS316
|
|
Metal parts
|
SS304, SS316
|
|
Idividual Packing
|
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.
|
We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,
All ranges of mechanical seals for Flyg-t Pumps, Grund-fos Pumps, Pumps, AP-V Pumps, G-rindes Pumps, Fristam, A-BS, All-eeiler, E-MU, GEA Tun-chenhagen, God-win, Hid-rostal, Hil-ge, Johns-on, Lo-wara, Wauk-esha, Vog-elsang Pumps etc
Welcome to quote for more details.
-
we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
