Quick Details
-
Brand Name:
-
HYN@NET OEM ODM
-
Model Number:
-
S7020
-
Place of Origin:
-
Guangdong, China
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
256G
-
Brand Name:
-
HYN@NET OEM ODM
-
Model Number:
-
S7020
-
Place of Origin:
-
Guangdong, China
Description
The S7020 is a new generation Ethernet intelligent access switch. It is mainly deployed on the IP MAN and intranets, meeting requirements the requirements of carrying various Ethernet services and accessing the Ethernet.

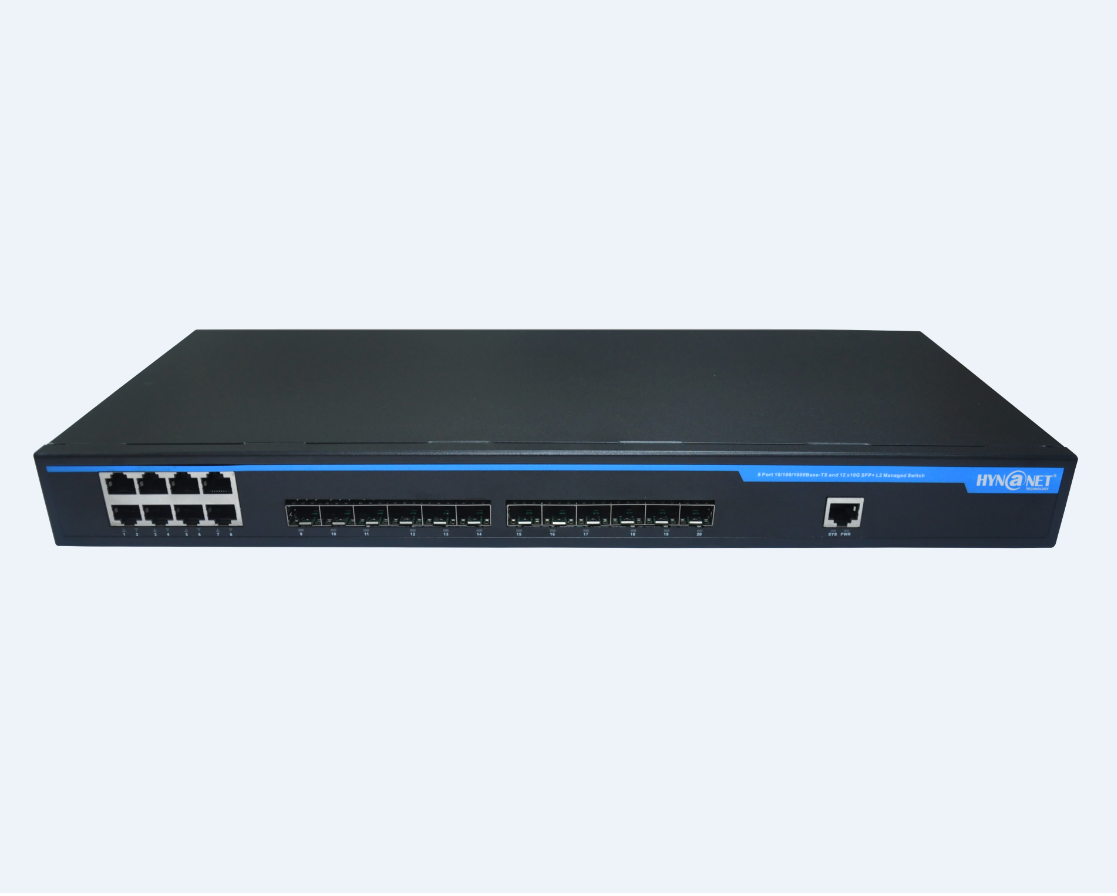

The S7020 is a case-shaped device with a chassis of 1U high. It provides 8 10/100/1000Base-TX ports and 12 10G SFP+.
Features
• Conforms to IEEE802.3, 802.3u, 802.3ab, 802.3z
• Provides 8 10/100/1000 Base-TX ports and 12 10G SFP+
• High back-plane bandwidth 256Gbps
• Support standard IP/ Extend IP / MAC IP / ARP ACL
• IGMP snooping and IGMP Query mode for Multi-media application
• Port mirror and bandwidth control
• Supports GVRP function
• IEEE802.3x Flow control
• Support Port Based VLAN / 802 .1Q Tag VLAN
• Support IEEE802.3ad Port trunk with LACP
• Support Spanning tree protocol IEEE 802.1d
• Supports IEEE 802.1p class of service
• Support IEEE 802.1x user authentication
• Support Broadcast storm filter
• Support DHCP server and client
• Support System event log
• Support command line interface management
• Management by Web/SNMP/Telnet/Console
• Surge protection for power port and data ports
• EMI standards complies with FCC, CE class B
Specifications
|
Item |
Description |
|
Summarize |
|
|
Fixed port |
8 10/100/1000Base-TX ports. 12 10G SFP+. 1 Console port. |
|
LED Indicators |
PWR, PoE, 1000M and Link/Act LED. |
|
Input voltage |
100V ~ 240V AC , 50/60Hz |
|
Power consumption |
40W |
|
Operating temperature |
0 ℃~ 40 ℃ . |
|
Storage temperature |
-10 ℃~ 70 ℃ . |
|
Relative humidity |
20% ~ 85% (non-condensing). |
|
Thermal methods |
Built-in Noiseless FAN. |
|
Layer 2 Switching |
|
|
Switching capacity |
256G |
|
MAC address table |
16K, Support MAC address table management. |
|
MAC Address Binding |
Support. |
|
MAC Address Filtering |
Support. |
|
MAC Address Learning control |
Control number of port-based MAC address learning. |
|
Jumbo Frame |
Jumbo packets up to 16 Kbytes. |
|
Port Feature |
Port Control. Port Isolation. Port Self-loop Detection. |
|
Port Mirroring |
Support. |
|
VLAN |
4K 802.1q VLANs, Support Ingress filter. |
|
Link Aggregation |
Up to 32 maximum aggregation groups, each containing up to 8 GE ports. |
|
Traffic control |
IEEE 802.3x full-duplex flow control. |
|
Rate Limit |
Unit: 64kbps. |
|
Spanning Tree |
IEEE 802.1d Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) |
|
Ring Protocol |
Support EAPS. |
|
Multicast |
Support 1K Multicast groups. Support IGMP Snooping. |
|
Layer 3 Switching |
|
|
Static ARP |
Support. |
|
Static Routing |
Support. |
|
L3 VLAN interface |
Up to 32 L3 VLAN Interface (support 128 MAC). |
|
Convergence |
|
|
4 output queues on each port. Support flexible queue scheduling algorithms: WRR , SP , DRR , RR. Support MAC-based / 802.1p / DiffServ classification. |
|
|
Security |
|
|
ACL |
Support Standard IP / Extend IP / MAC IP / ARP Support 1024 entries |
|
Security Features |
Support MAC-based 802.1X authentication. Support AAA/RADIUS authentication. Support WEB/Telnet password protection. Support Accessing privilege mode password protection. |
|
Self-protection |
Support CPU Self-protection. |
|
Management |
|
|
CLI |
Support CLI (Commend Line Interface) configuration mode. |
|
Console |
Support Configuration via the console port. |
|
Telnet |
Support Local/remote configuration via Telnet. |
|
WEB |
Support WEB management system. |
|
SNMP |
Support System configuration with SNMP v1/v2/v3. |
|
User Management |
Support Multi-user management. |
|
System Log |
Support. |
|
Configuration File Download/Upload |
Support Download/Upload configuration File via WEB/TFTP. |
|
Upgrade Firmware |
Support Upgrade Firmware via WEB/TFTP/Console. |
|
Debug |
|
|
PING |
Support. |
|
TRACEROUTE |
Support. |
|
Telnet client |
Support. |
|
Process View |
Support. |
