Quick Details
-
Color Print Speed:
-
N/A
-
Max. Resolution:
-
5 dots/mm(127dpi)
-
Brand Name:
-
CASHINO
-
Model Number:
-
PDM-02
-
Place of Origin:
-
Fujian, China
-
Printing method:
-
Impact Dot Matrix
-
Resolution:
-
5 dots/mm(127dpi) ,240 dots/line
-
Print speed:
-
5.5mm/sec,1.2 lps
-
Paper width:
-
Paper width 58mm
-
Printing width:
-
48mm
-
Interface:
-
RS232+ Mini USB+IrDA/Raw IR/Bluetooth
-
Battery:
-
7.4/2000mAh
-
Weight:
-
345g(Including battery,without paper roll)
-
Color:
-
black
-
Description:
-
Portable impact dot matrix printer
Quick Details
-
Interface Type:
-
RS232/USB,bluetooth,Raw-Ir
-
Max Paper Size:
-
58mm
-
Black Print Speed:
-
5.5mm/sec,1.2 lps
-
Color Print Speed:
-
N/A
-
Max. Resolution:
-
5 dots/mm(127dpi)
-
Brand Name:
-
CASHINO
-
Model Number:
-
PDM-02
-
Place of Origin:
-
Fujian, China
-
Printing method:
-
Impact Dot Matrix
-
Resolution:
-
5 dots/mm(127dpi) ,240 dots/line
-
Print speed:
-
5.5mm/sec,1.2 lps
-
Paper width:
-
Paper width 58mm
-
Printing width:
-
48mm
-
Interface:
-
RS232+ Mini USB+IrDA/Raw IR/Bluetooth
-
Battery:
-
7.4/2000mAh
-
Weight:
-
345g(Including battery,without paper roll)
-
Color:
-
black
-
Description:
-
Portable impact dot matrix printer
Product Description

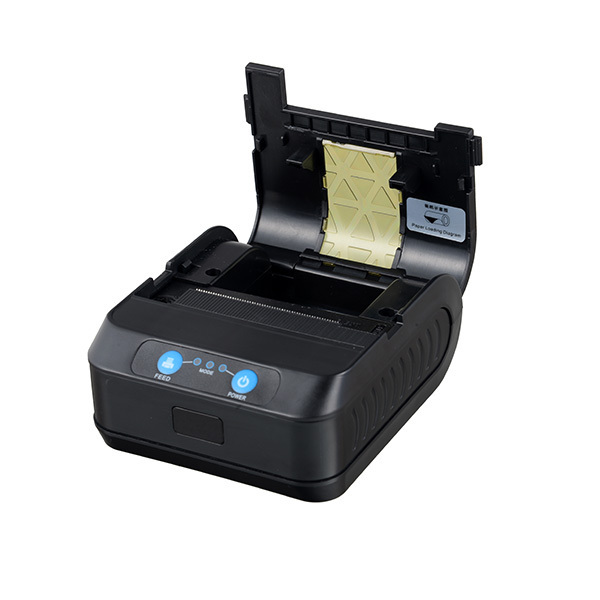

Cashino PDM-02 58mm Portable Bluetooth Printer large code page impact dot matrix printer
Feature:
Dot matrix impact printing method
Unique rugged design withstands droping up to 1.2 meters
Support printing when battery in charging
Intelligent quick battery charging
Large paper capacity and long battery life
Specification:
| Printing Method | Dot Matrix |
| Resolution | 5 dots/mm ( 127dpi ) ,240 dots/line |
| Effective Printing Width | 48mm |
| Printing Speed | 1.2 lps |
| Character Set | ASCII,GB2312(Chinese) |
| Print Font | ANK: 7 x5/12 x6/16 x8, Chinese: 12 x 12/16 x 16 |
| Self-defined Character | Yes |
| Graphic | Support bitmap downloading |
| SDK | Android |
| Driver | Windows XP/Windows Vista/Windows 7 |
| Paper End Sensor | Yes |
| Black Mark Location | Yes |
| Auto Sleeping | Yes |
| Interface | PDM02-BT:RS-232/USB+Bluetooth; |
| PDM02-IR:RS-232/USB+Raw-IR | |
| PDM02: RS-232/USB | |
| Battery | DC7.4V,2000mAh rechargeable Li-ion battery |
| Charger | DC12V/1A |
| TPH | 1.5 Million lines |
| Paper Type | Plain paper |
| Paper Width | 57.5± 0.5mm |
| Paper Thickness | 0.06 to 0.08mm |
| Paper Roll Diameter | 40mm(Max.) |
| Paper Supply Method | Semi-auto Loading |
| Paper Cutting Method | Manual |
| Operating Temp/Humidity | -10-50°C/10%-80% |
| Storage Temp/Humidity | -20-60°C / 10%-90% |
| Dimension | 99×112.3×46(W×D×H) mm |
| Weight | 345g (with battery,without paper roll) |
