Quick Details
-
Model Number:
-
CX-HEMFM
-
Product Name:
-
Electromagnetic Flow Meter
-
Medium:
-
Conductive Liquid
-
Power supply:
-
220VAC/ 24VDC
-
Application:
-
Measuring Fluid
-
Accuracy:
-
0.5%
-
Output:
-
4-20mA /RS485
-
Connection:
-
Flange Clamp Thread
-
Material:
-
Stainless Steel
-
Keywords:
-
Liquid Control Flow Meter
-
Output signal:
-
Pulse / 4~20mA / RS485 / HART
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Oil Flowmeters
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GN
-
Model Number:
-
CX-HEMFM
-
Product Name:
-
Electromagnetic Flow Meter
-
Medium:
-
Conductive Liquid
-
Power supply:
-
220VAC/ 24VDC
-
Application:
-
Measuring Fluid
-
Accuracy:
-
0.5%
-
Output:
-
4-20mA /RS485
-
Connection:
-
Flange Clamp Thread
-
Material:
-
Stainless Steel
-
Keywords:
-
Liquid Control Flow Meter
-
Output signal:
-
Pulse / 4~20mA / RS485 / HART
Product Description
Electromagnetic flow meters are flowmeters that measure flow according to Faraday's law of electromagnetic induction. Electromagnetic flowmeters have the advantage of minimal pressure loss and a large range of measurable flow rates. The ratio of the maximum flow rate to the minimum flow rate is generally more than 20:1. The applicable industrial tube diameter is wide, up to 3 meters. The output signal and the measured flow rate are linear, and the accuracy is high. The conductivity can be measured ≥5μs/cm. Acid, alkali, salt solution, water, sewage, corrosive liquids, and fluid flow of mud, pulp, pulp, etc. However, it cannot measure the flow of gas, steam, and pure water.
What's the technical parameters of Eelectromagnetic Flow meter?
|
Product Name
|
RS485 4-20ma Pulse Output Conductive Liquid Water Magnetic Flowmeter Electromagnetic Flow Meter
|
|
Display
|
reaches 8 element liquid crystal display, current clock to indicate flow data. Units( m3 or L)
|
|
Structure
|
inserted style, compact type or separate type
|
|
Medium
|
liquid or solid-liquid two phase fluid, conductivity >0.5μs/cm2
|
|
Range
|
0.05m/s~12m/s
|
|
Accuracy
|
range between 0.1m/s~10m/s can be 0.5%
|
|
DN
|
6mm~2000 mm
|
|
PN
|
PN6, PN10,PN16,PN25,PN40,PN63,PN100,PN160,PN250,PN420 optional
|
|
Output Signal
|
4~20mA or frequency
|
|
Communication
|
RS485,support MODBUS protocol (not standard), support HART(option)
|
|
Connection
|
DN6~DN2000 flange connection
|
|
Connection Standard
|
suits for all kinds of flange standard(eg:BS EN1092-1)
|
|
Protection Grade
|
compact type for IP65,separately type for IP67or IP68(optional)
|
|
Power
|
AC86~230V or DC24V(optional)
|
|
Ambient Temperature
|
5~55C℃
|
|
Ambient Humidity
|
<85 % r.h (non condensation)
|
Specification
|
DN(mm)
|
Linning Material
|
|
Flow range(m³/h)
|
|
|
Pressure
|
|||
|
|
Rubber
|
PTFE
|
Normal
|
Min
|
Max
|
Mpa
|
|||
|
DN10
|
√
|
√
|
1.2
|
0.16
|
2.5
|
4.0Mpa
|
|||
|
DN15
|
√
|
√
|
3.0
|
0.4
|
6.0
|
|
|||
|
DN20
|
√
|
√
|
6.0
|
0.6
|
12.0
|
|
|||
|
DN25
|
√
|
√
|
8.0
|
1.0
|
16.0
|
|
|||
|
DN32
|
√
|
√
|
12.0
|
1.6
|
25.0
|
|
|||
|
DN40
|
√
|
√
|
20.0
|
2.5
|
40.0
|
|
|||
|
DN50
|
√
|
√
|
30.0
|
4.0
|
60.0
|
|
|||
|
DN65
|
√
|
√
|
60.0
|
6.0
|
120.0
|
|
|||
|
DN80
|
√
|
√
|
80.0
|
10.0
|
160.0
|
|
|||
|
DN100
|
√
|
√
|
120.0
|
16.0
|
250.0
|
|
|||
|
DN125
|
√
|
√
|
200.0
|
25.0
|
400.0
|
1.6Mpa
|
|||
|
DN150
|
√
|
√
|
300.0
|
40.0
|
600.0
|
|
|||
|
DN200
|
√
|
√
|
500.0
|
60.0
|
1000.0
|
|
|||
|
DN250
|
√
|
√
|
800.0
|
100.0
|
1600.0
|
1.0Mpa
|
|||
|
DN300
|
√
|
√
|
1200.0
|
160.0
|
2500.0
|
|
|||
|
DN350
|
√
|
√
|
1600.0
|
200.0
|
3000.0
|
|
|||
|
DN400
|
√
|
√
|
2000.0
|
250.0
|
4000.0
|
|
|||
|
DN450
|
√
|
√
|
3000.0
|
400.0
|
6000.0
|
|
|||
|
DN500
|
√
|
√
|
3000.0
|
400.0
|
6000.0
|
|
|||
|
DN600
|
√
|
√
|
5000.0
|
600.0
|
10000.0
|
|
|||
|
DN700
|
√
|
√
|
6000.0
|
800.0
|
12000.0
|
|
|||
|
DN800
|
√
|
√
|
8000.0
|
1000.0
|
16000.0
|
|
|||
|
DN900
|
√
|
√
|
10000.0
|
1200.0
|
20000.0
|
|
|||
|
DN1000
|
√
|
√
|
13000.0
|
1600.0
|
25000.0
|
|
|||
|
DN1200
|
√
|
|
16000.0
|
2500.0
|
30000.0
|
0.6Mpa
|
|||
|
DN1400
|
√
|
|
25000.0
|
3000.0
|
50000.0
|
|
|||
|
DN1600
|
√
|
|
30000.0
|
3000.0
|
60000.0
|
|
|||
|
DN1800
|
√
|
|
30000.0
|
5000.0
|
60000.0
|
|
|||
|
DN2000
|
√
|
|
50000.0
|
2000.0
|
100000.0
|
|
|||

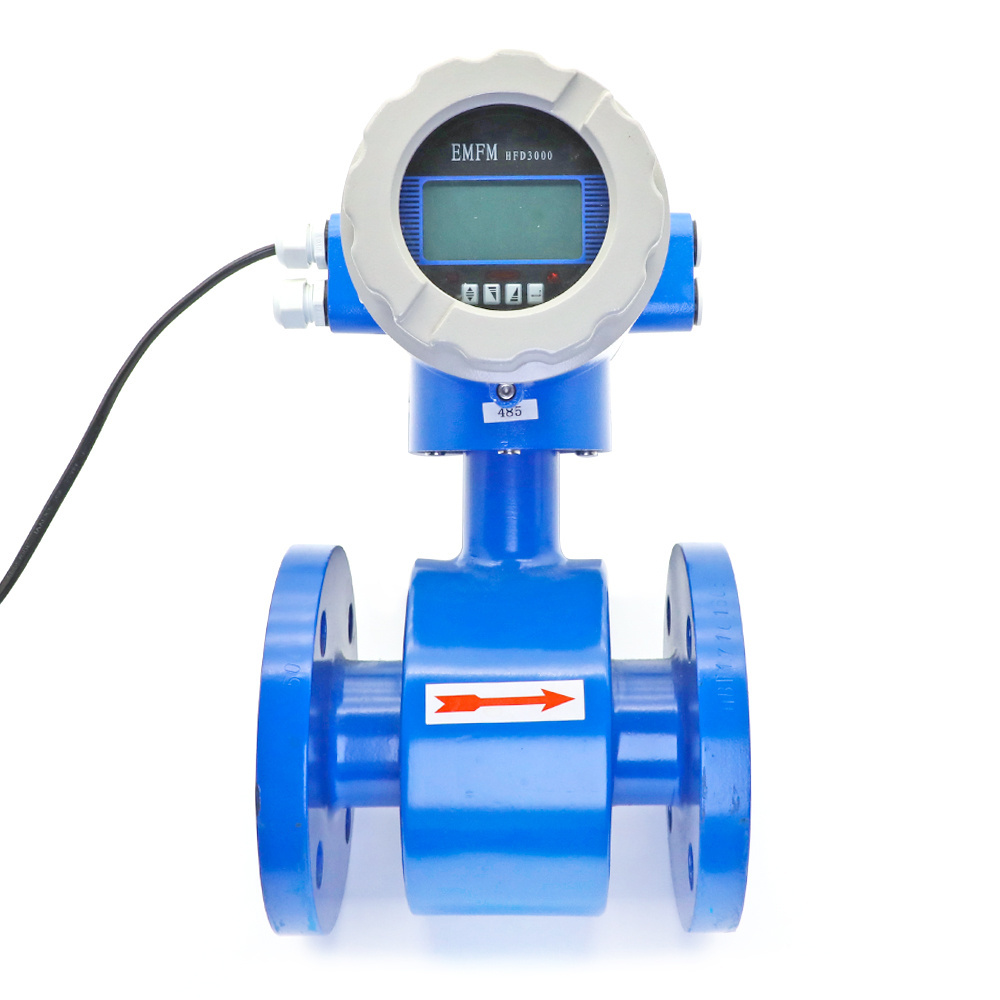

Product Show
What's the brief introdction of Eelectromagnetic Flow meter ?
1.it can measure all kinds of electronic conductivity liquid, such as corrosive liquid , mud and slurry ,water etc.
2.The result cannot be affected by temperature, pressure, viscosity and density.
3.Flow sensor and intelligent converter compact or separately composes a complete flowmeter.
Main features
1.No move assembly, no abrasion
2.Measuring range rate: 1:100
3.No flow enhance equipment
4.Suits for various of electronic conductivity liquid
5.No affect from temperature, viscosity, pressure and density
6.Anti-corrosion and Self diagnose
7.Measure both to and reverse flow
8.Huge display, easy operate
9.Long-term EEPROM to save data when lose power
10.Support MODBUS/HART communication protocol
11.Wide working volts range or battery supply
12.Display chinese , english or russian
13.It can be match with GPS
Eelectromagnetic Flow Meter
has no moving part and can be used to measure the acid, alkali, salt solution, coal slurry, pulp,plaster mortar, pulp, resin, rubber latex, synthetic fiber pulp and photosensitive latex and other suspended solids, and viscous substance gasification steam flow. Electromagnetic flowmeter has been widely used in chemical industry, environmental protection,metallurgy, pharmaceutical, paper, water supply and drainage and other industrial technology and management. Electromagnetic Flowmeter sealing performance, but also for water and sewer systems. Electromagnetic flowmeter measurement process also don't contact with the fluid, suitable for pharmaceutical, biochemical and food industries. Electromagnetic flowmeter can also detect blood flow.
