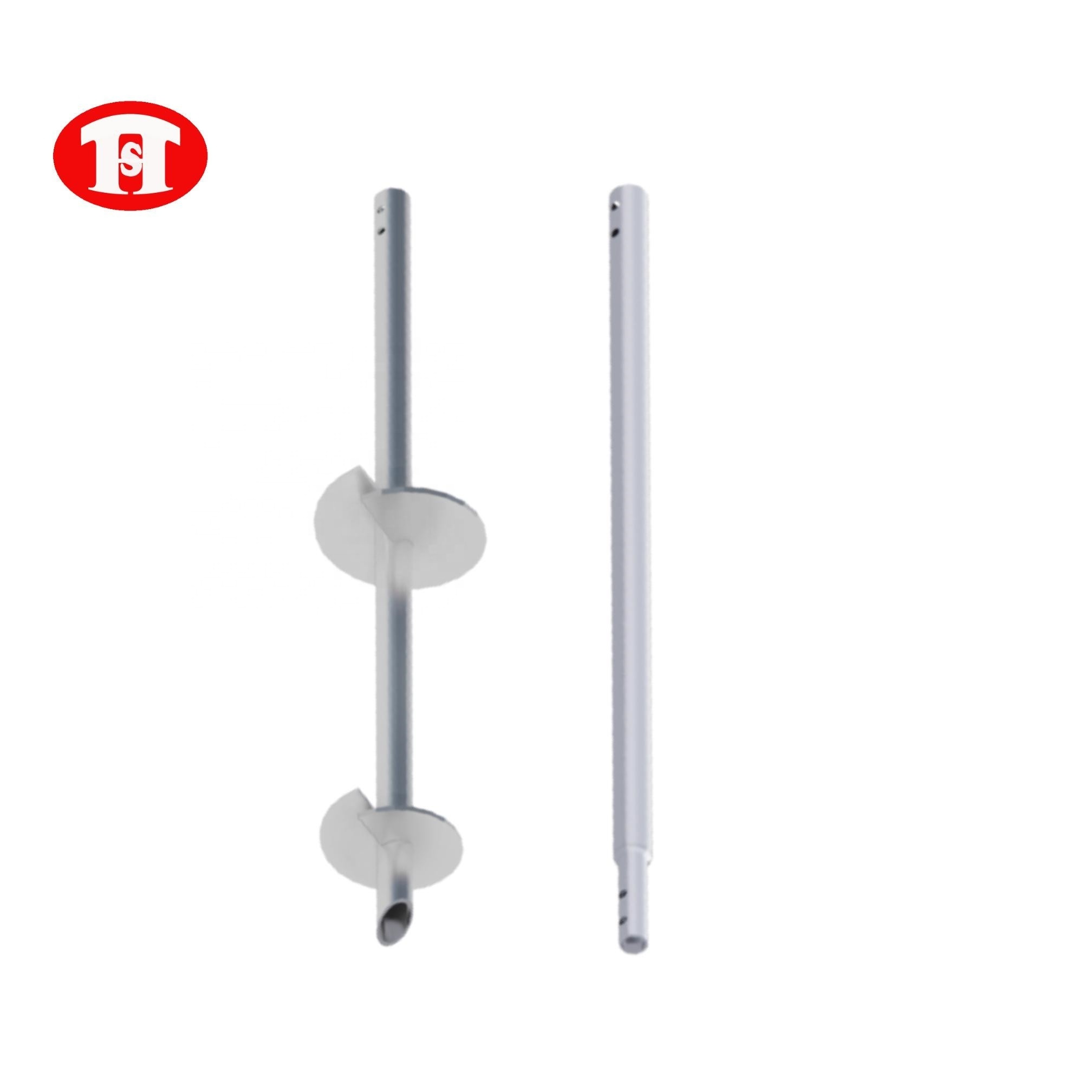

High Quality Round Shaft Helical Piles for Deep Construction Foundation with matched Extension
High Quality Round Shaft Helical Piles for Deep Construction Foundation with matched Extension
High Quality Round Shaft Helical Piles for Deep Construction Foundation with matched Extension
High Quality Round Shaft Helical Piles for Deep Construction Foundation with matched Extension
High Quality Round Shaft Helical Piles for Deep Construction Foundation with matched Extension
High Quality Round Shaft Helical Piles for Deep Construction Foundation with matched Extension
High Quality Round Shaft Helical Piles for Deep Construction Foundation with matched Extension
High Quality Round Shaft Helical Piles for Deep Construction Foundation with matched Extension

High Quality Round Shaft Helical Piles for Deep Construction Foundation with matched Extension

FOB Reference Price: Get Latest Price
≥25 Pieces
US $33.65
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Tianjin, China
Brand Name:
GMHS
Model Number:
HSL
Diameter:
2.875in (73mm), 3.5in (89mm), 4.5in (114mm)
Dia.:
2.875"/3.5"/4.5"
Thickness:
0.217"/0.254"/0.276"/0.29"/0.337"
Length:
3 feet/5 feet/7 feet
Helix Size:
8"/10"/12"/14" with 0.25"/ 0.5" thickness
Type of Helix:
Single/Twins/Triple.
Surface Treatment:
Hot Dip Galvanized
Packing:
Pallet/Wooden Box
Application:
For Construction Foundation
Warranty:
15-20 years

Quick Details

System of Measurement:
INCH, Metric
Material:
Steel
Capacity:
21-48tons
Place of Origin:
Tianjin, China
Brand Name:
GMHS
Model Number:
HSL
Diameter:
2.875in (73mm), 3.5in (89mm), 4.5in (114mm)
Dia.:
2.875"/3.5"/4.5"
Thickness:
0.217"/0.254"/0.276"/0.29"/0.337"
Length:
3 feet/5 feet/7 feet
Helix Size:
8"/10"/12"/14" with 0.25"/ 0.5" thickness
Type of Helix:
Single/Twins/Triple.
Surface Treatment:
Hot Dip Galvanized
Packing:
Pallet/Wooden Box
Application:
For Construction Foundation
Warranty:
15-20 years
Main Products Range
Product Description
HELICAL PILE
A helical pile is a deep foundation pile that is screwed into the ground while monitoring the amount of pressure or torque it requires to advance.

Most helical piles are round hollow shafts or square solid shafts, extruded from steel and come in a wide variety of diameters and
gauges, to serve different types of projects.

One or more steel screw threads (or helical bearing plates) welded onto the shaft, in order to supply ample downforce to the soil as it’s being screwed into the earth. The plane (or angle) of the screw is standard, although the size and shape can vary based on the application and soil specifications.

Manufacturing Standard

*Helix: According to AC-358
* Welding: According to AWS D1-1 section 5(revsion)
>Flux cored wire are available.
>Auto-welding system/Hand weld by experienced welder
Type
Helical Pile
Material
Q345B
Diameter
2.875"(73mm), 3.5"(89mm)
Length
3'(915mm), 5'(1524mm), 7'(2130mm)
Thickness
0.217"(5.5mm), 0.254"(6.45mm), 0.276"(7mm)
Helix Type
Single/Twins/Triple Helix
Helix Size
8‘’, 10‘’, 12‘’, 14‘’ with thickness 3/8", 1/2‘’.
Finished
Hot dip galvanized.
Thickness of galvanized
Above 80μm on average.
Why Choose Us

Quality Insurance

- Nearly 20 years' experience
- Professional Manufacturer
- ISO standard
- Accept quality inspection by third party.

Perfect Service

- Sample service.
- Drawing service.
- NDA, Quality assurance contract, Delivery guarantee contract can be signed with you.
- Email you the tracking, and help to chase the parcels until it arrive you.

Customization Available

- Customized logo
- Customized package
- Product customization according to your requirements

Advantages:

-Better Steel. All of our 2.875”/3.5” diameter helical piles are manufactured by Q355/ API 5CT J55 tubes. And many of our other products are made from ASTM A513 steel tubing.(Q235B/Q355B ERW or SMLS)

-Manufacturing Standard. All our helical piles are built to meet or exceed ICC-ES AC-358 standards, especially in welding. We are ISO 9001:2015 certified with many products.

- HDG Quality. All of our products are in accordance with ASTM A123 and A153/EN ISO 1461 standards for hot-dip zinc coatings.

- Professional Export Packaging. Based on years of export experience, we support various packaging methods, such as wooden box/wooden pallet/steel pallet . To make sure the cargo safety and space saving.

OEM/ODM: Avaliable; Samples: Avaliable

MOQ: 25pcs, one pallet.
Matching Products

Extension

Extension that can be bolted on the end to drive it deeper into the ground.

Specification Example

Just for your reference, accept customization!!
Item
Item Description
W'T(kgs)
2 7/8" Pipe Extension 5'
5' Extension
21.26
2 7/8" Pipe Extension 7'
7' Extension
26.14
2 7/8" Pipe Lead Section
8" & 10" Flights on 7' Lead
31.88
2 7/8" Pipe Lead Section
10" & 12" Flights on 7' Lead
35.95
2 7/8" Pipe Lead Section
12" & 14" Flights on 7' Lead
40.79
3.5" Pipe Extension 5'
5' Extension
24.09
3.5" Pipe Extension 7'
7' Extension
28.21
3.5" Pipe Lead Section
Single 12" Flight on 7' Lead
31.86
3.5" Pipe Lead Section
8" 10" and 12" Flights on 7' Lead
38.58
Packing&Delivery
Packaging:

The trained packaging workers who have full experience of packaging.
`Try our best to save the cost for you.




Delivery:

Usually we shipping the products in 20ft or 40ft container, or according to your demand. Generally it is 5-10 days if the goods
are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
