Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
minghai
-
Model Number:
-
mh-01
-
Grade:
-
Ni-Ti
-
weight:
-
ACC. to size
-
surface:
-
polished
Quick Details
-
Application:
-
Industrial
-
Length:
-
1000mm+
-
Technique:
-
Rolled
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
minghai
-
Model Number:
-
mh-01
-
Grade:
-
Ni-Ti
-
weight:
-
ACC. to size
-
surface:
-
polished

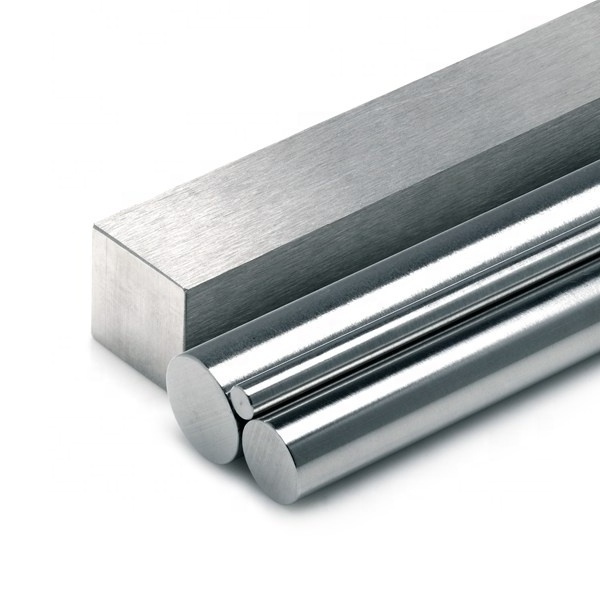

Nitinol rod
|
Products |
Elastic NiTi Memory alloy wire |
|||||
|
Grade |
Ni-Ti: 50:50 at%, 45:55%, |
|||||
|
Standard |
ASTM F67, ASTM F136, F2063, ISO 5832 |
|||||
|
Application |
Medical Implant, surgical instrument, cell phone antenna, dental implant, Bone surgery set , Woman bra, etc. |
|||||
|
Size |
Dia0.1-20mm |
|||||
|
Condition |
Annealed, Polished, Picking |
|||||
|
Package |
Wooden cases for export |
|||||
|
Diameter |
0.1~0.2 |
>0.2~0.5 |
>0.5~1.0 |
>1.0~2.0 |
>2.0~4.0 |
>4.0~7.0 |
|
Tolerance |
-0.025 |
-0.04 |
-0.06 |
-0.08 |
-0.10 |
-0.14 |
1.Application: cell phone antenna, children's toys, glasses leg, women bra, experimental materials, Women's Sports Central, arch wires, instruments, and medical equipment, such as surgical stitching wire, birth control loop and other areas of high-quality memory alloy wire.
2.Process: melting-----rolling----heating----welding---annealed-polishing-picki ng.
3.Advantage: the diameter 0.1mm high super elastic and Af point in the world.
4..Available shape: wire, sheet/plate, bar/rod, tube/pipe. roll stock, cut-to-size, slit rolls, discs, circles, heavy woven mesh or custom weaves.
Standard: ASTM—2063—01 ASTM F2063-2000
|
Mechanical Properties |
Tensile strength (Mpa) |
Yield strength (Mpa) |
Elongation |
Af°C |
||||||||||
|
895 |
828 |
10 |
170 |
|||||||||||
|
Chemical composition |
Ti |
Fe |
C |
O |
N |
H |
Co |
Cu |
Cr |
Nb |
Ni |
|||
|
R |
0.012 |
0.04 |
0.02 |
0.04 |
0.001 |
0.0050 |
0.005 |
0.005 |
0.005 |
55.57 |
||||
Transition temperature(SMA)
|
Grade |
TiNi-01 |
TiNi-02 |
TiNi-03 |
TiNi-SS |
TiNi-YY |
TiNiCU |
TiNiNb |
|
Transition Temperature |
20 °C -40 °C |
45 °C -90 °C |
<5 °C |
5 °C -15 °C |
33 °C ±3 °C |
As-Ms=5 °C |
As - Ms<150 °C |
|
Alloy |
Chemical composition |
AF point |
Min elongation (%) |
Max Residual elongation after 6% strain |
Application |
Standard |
|
|
Body temperature NiTi Alloy |
Ti-Ni-01 |
55.6-55.8wt%Ni |
20-40 |
15 |
0.1 |
Orthotic Arches |
Q/HL 1516.1 |
