Quick Details
-

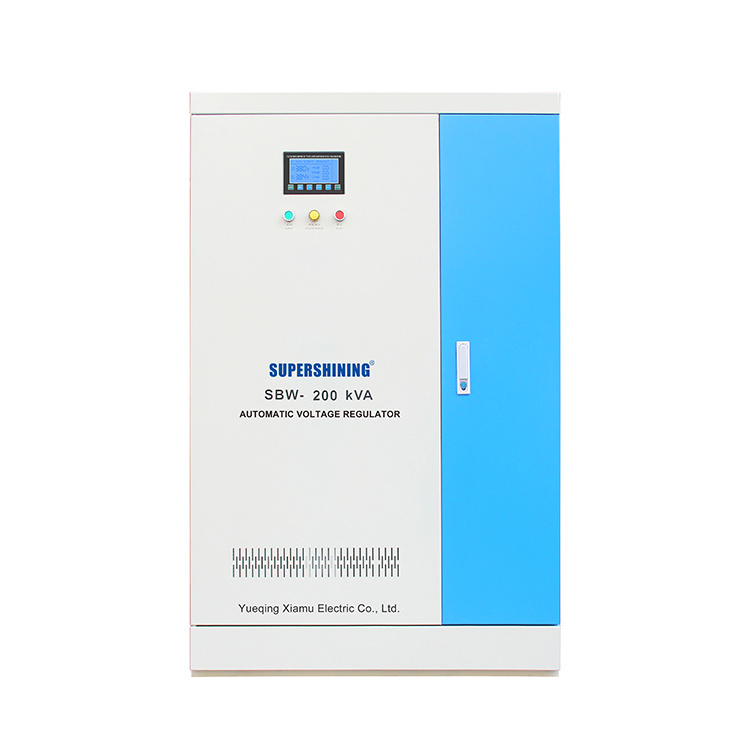

Model Number:
-
SBW-200kVA
-
INSULATION RESISTANCE:
-
>2MΩ
-
WITHSTAND VOLTAGE:
-
2000v/Min No breakdown
-
ADJUST CARBON BRUSH:
-
conventional
-
RESPONSE TIME:
-
≤1.5S
-
MOTOR:
-
Imported motor
-
RELATIVE HUMIDITY:
-
<90%
-
THE OUTPUT VOLTAGE:
-
380V±(1~5%)Can be set
-
EFFECTIVENESS:
-
≥98%
-
Waveform distortion:
-
≤0.1%
-
WINDING HEATING:
-
<80°C Under full load
Quick Details
-
Phase:
-
Three Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
SBW-200kVA
-
INSULATION RESISTANCE:
-
>2MΩ
-
WITHSTAND VOLTAGE:
-
2000v/Min No breakdown
-
ADJUST CARBON BRUSH:
-
conventional
-
RESPONSE TIME:
-
≤1.5S
-
MOTOR:
-
Imported motor
-
RELATIVE HUMIDITY:
-
<90%
-
THE OUTPUT VOLTAGE:
-
380V±(1~5%)Can be set
-
EFFECTIVENESS:
-
≥98%
-
Waveform distortion:
-
≤0.1%
-
WINDING HEATING:
-
<80°C Under full load
Product Description
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Brand Name
|
|
|
Model Number
|
TNS/SJW2-20KV
|
|
Usage
|
SVC
|
|
Phase
|
Three Phase
|
|
Current Type
|
AC
|
|
capacity
|
10KVA-120KVA
|
|
Input range
|
260V-450V
|
|
THE OUTPUT VOLTAGE
|
Line voltage AC380V (Phase voltage AC220V)(Phase v
|
|
frequency
|
45HZ/63HZ
|
|
Center voltage
|
Line voltage AC380V(Phase voltage AC220V±2%)Ad
|
|
Stabilization accuracy
|
±(1~5)%Can be set
|
|
Corresponding time
|
≤0.05S
|
|
stable schedule
|
Stable accuracy tolerance when voltage changes faster than 1 second
|
|
Waveform distortion
|
≤0.1%
|
|
EFFECTIVENESS
|
≥98.5%
|
|
Types
|
Outline (cm)
|
Outputpower
|
Weight (kg)
|
|
|
sbw-30kva
|
800*550*1350
|
30kva
|
230
|
|
|
sbw-50kva
|
800*570*1350
|
50kva
|
250
|
|
|
sbw-80kva
|
800*620*1500
|
80kva
|
300
|
|
|
sbw-100kva
|
800*620*1500
|
100kva
|
360
|
|
|
sbw-150kva
|
1000*700*1650
|
150kva
|
480
|
|
|
sbw-180kva
|
1000*700*1650
|
180kva
|
500
|
|
|
sbw-200kva
|
1000*700*1650
|
200kva
|
630
|
|
|
sbw-225kva
|
1100*800*1850
|
225kva
|
680
|
|
|
sbw-250kva
|
1100*800*1850
|
250kva
|
700
|
|
|
sbw-300kva
|
1100*900*2000
|
300kva
|
740
|
|
|
sbw-320kva
|
1100*900*2000
|
320kva
|
860
|
|
|
sbw-350kva
|
1150*1000*2000
|
350kva
|
980
|
|
|
sbw-400kva
|
1150*1000*2000
|
400kva
|
1080
|
|
|
sbw-450kva
|
1250*1100*2200
|
450kva
|
1320
|
|
|
sbw-500kva
|
1250*1100*2200
|
500kva
|
1470
|
|
|
sbw-600kva
|
1100*800*2000
|
600kva
|
2170
|
|
|
sbw-f/800kva
|
1100*850*2000
|
f/800kva
|
2650
|
|
|
sbw-f/1000kva
|
1100*850*2000
|
f/1000kva
|
3150
|
|
|
sbw-f/1200kva
|
1100*850*2000
|
f/1200kva
|
3650
|
|
|
sbw-f/1600kva
|
1100*1100*2000
|
f/1600kva
|
4700
|
|
|
sbw-f/1800kva
|
1100*1200*2200
|
f/1800kva
|
5200
|
|
|
sbw-f/2000kva
|
1100*1200*2200
|
f/2000kva
|
5800
|
|
Packing & Delivery
Foreign trade packaging
