Key Feature
* High sensitivity sensor with 256 x 192 thermal resolution
* Pixel Interval 12μm,Thermal sensitivity(NETD) is less than 60 mk (@25° C, F#=1.0)
* Non-contact personnel temperature measurement,Precision:±3℃（Target temperature 35℃~50℃）
* Body temperature measurement distance: 1m~5m
* High quality imaging with 1920X1080 resolution
* Embedded deep learning algorithm,Can detect and measure temperature of 20 people at the same time
* Maximum output frame rate：Visible light:1920x1080@25fps/Thermal Imaging:256x192@25fps
* HDMI directly output preview video, real-time display of the number of passers-by and abnormal temperature
* Support SD card to store data records, and export data online
* Built-in speaker and white light, support for abnormal temperature sound and light alarm
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
GT5216
-
Image Sensor:
-
Silicon oxide uncooled infrared focal plane detector
-
Resolution:
-
256x192,Pixel Interval 12μm
-
Lens:
-
Focal length:6mm,Field of view:35°
-
Distance:
-
1m-5m
-
Black body calibration:
-
Support
-
Focal Length:
-
4mm
-
Day & Night:
-
Mode IR cut filter with auto switch
-
Temperature abnormal:
-
High temperature alarm (default threshold is 37.3℃)
-
Power interface:
-
DC interface
-
Power:
-
DC 12V
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ccdcam
-
Model Number:
-
GT5216
-
Image Sensor:
-
Silicon oxide uncooled infrared focal plane detector
-
Resolution:
-
256x192,Pixel Interval 12μm
-
Lens:
-
Focal length:6mm,Field of view:35°
-
Distance:
-
1m-5m
-
Black body calibration:
-
Support
-
Focal Length:
-
4mm
-
Day & Night:
-
Mode IR cut filter with auto switch
-
Temperature abnormal:
-
High temperature alarm (default threshold is 37.3℃)
-
Power interface:
-
DC interface
-
Power:
-
DC 12V
Product Description
Overview

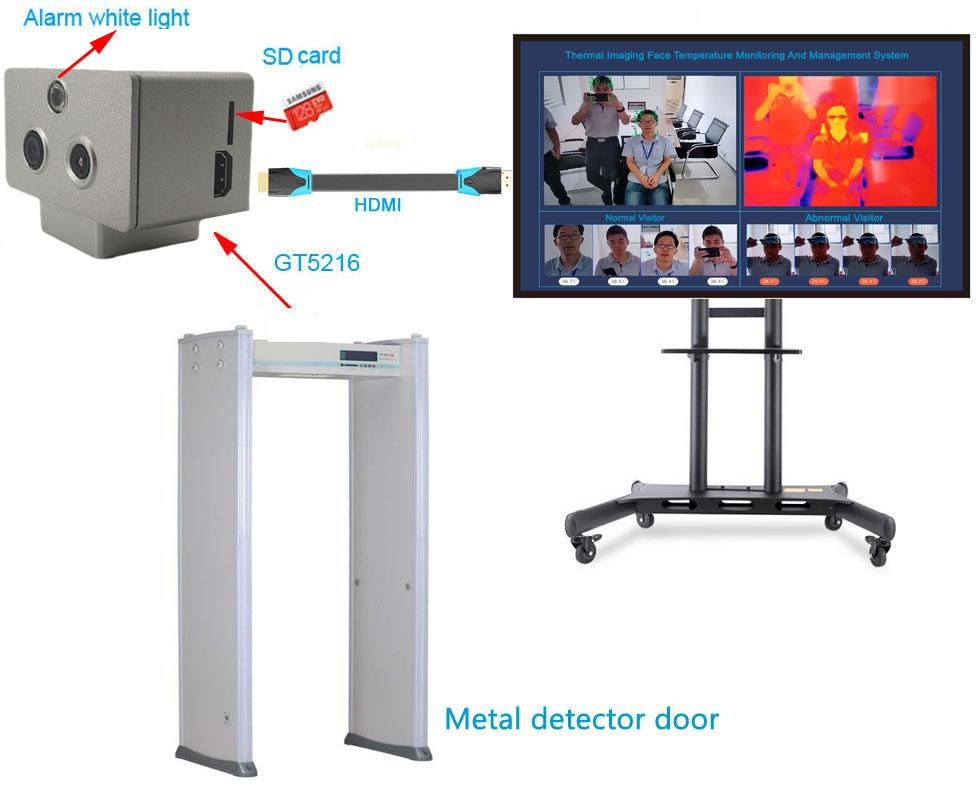

GT5216 Binocular Temperature Measuring Door Thermal Camera is designed with high-precision infrared temperature sensor for body
surface temperature detecting in real time. It can be widely applicated in temperature measuring doors, advertising machines and
other human body temperature screening equipment.
GT5216 Binocular Temperature Measuring Door Thermal Camera is designed with high-precision infrared temperature sensor for body
surface temperature detecting in real time. It can be widely applicated in temperature measuring doors, advertising machines and
other human body temperature screening equipment.
Specification
|
item
|
value
|
|
Warranty
|
1 year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
ccdcam
|
|
Model Number
|
GT5216
|
|
Image Sensor
|
Silicon oxide uncooled infrared focal plane detector
|
|
Resolution
|
256x192,Pixel Interval 12μm
|
|
Lens
|
Focal length:6mm,Field of view:35°
|
|
Distance
|
1m-5m
|
|
Black body calibration
|
Support
|
|
Focal Length
|
4mm
|
|
Day & Night
|
Mode IR cut filter with auto switch
|
|
Temperature abnormal
|
High temperature alarm (default threshold is 37.3℃)
|
|
Power interface
|
DC interface
|
|
Power
|
DC 12V
|
